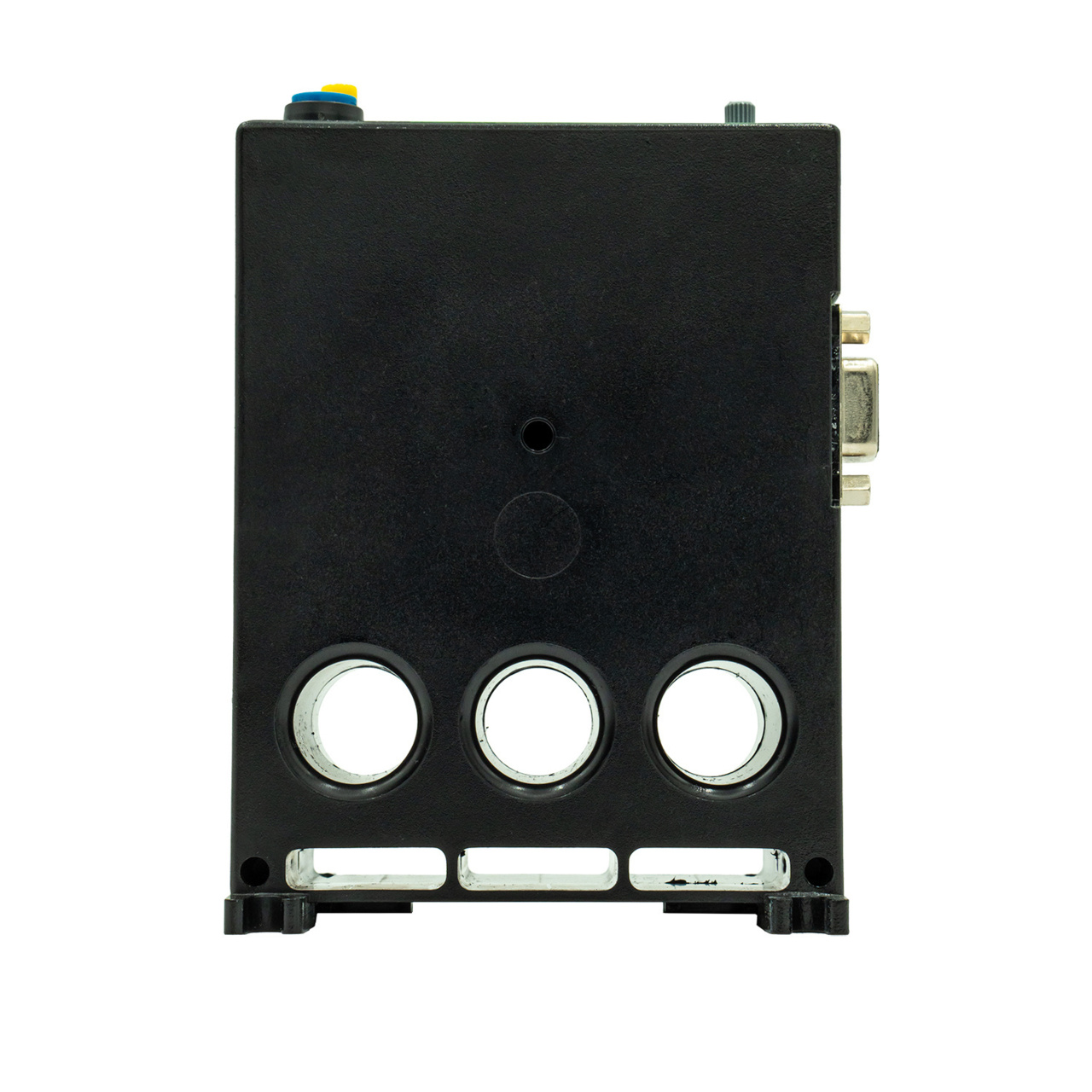

777-575-HRG-P2 Series

3-PH OLR/500-600V/2-90FLA/

Catalog

3-PH OLR/500-600V/2-90FLA/

Part	Termination Style	Function	Trip Current (Min)	Trip Current (Max)	Trip Voltage (Min)	Trip Voltage (Max)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Delay Time (Minimum)	Delay Time (Maximum)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
LITTELFUSE 777-575-HRG-P2	Screw Terminal	Multiple	2 A	100 A	450 VAC	660 VAC	Chassis Mount	70 °C	-20 °C	0 Sec	999 Sec	500 VAC	600 VAC

Catalog

3-PH OLR/500-600V/2-90FLA/

Description

The 777-575-HRG-P2 three-phase current and voltage monitor provides motor protection with input voltage from 500–600 V ac and motor full load ampere range of 2–20 A (looped conductors required); 20–90 A direct.
