2823587 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

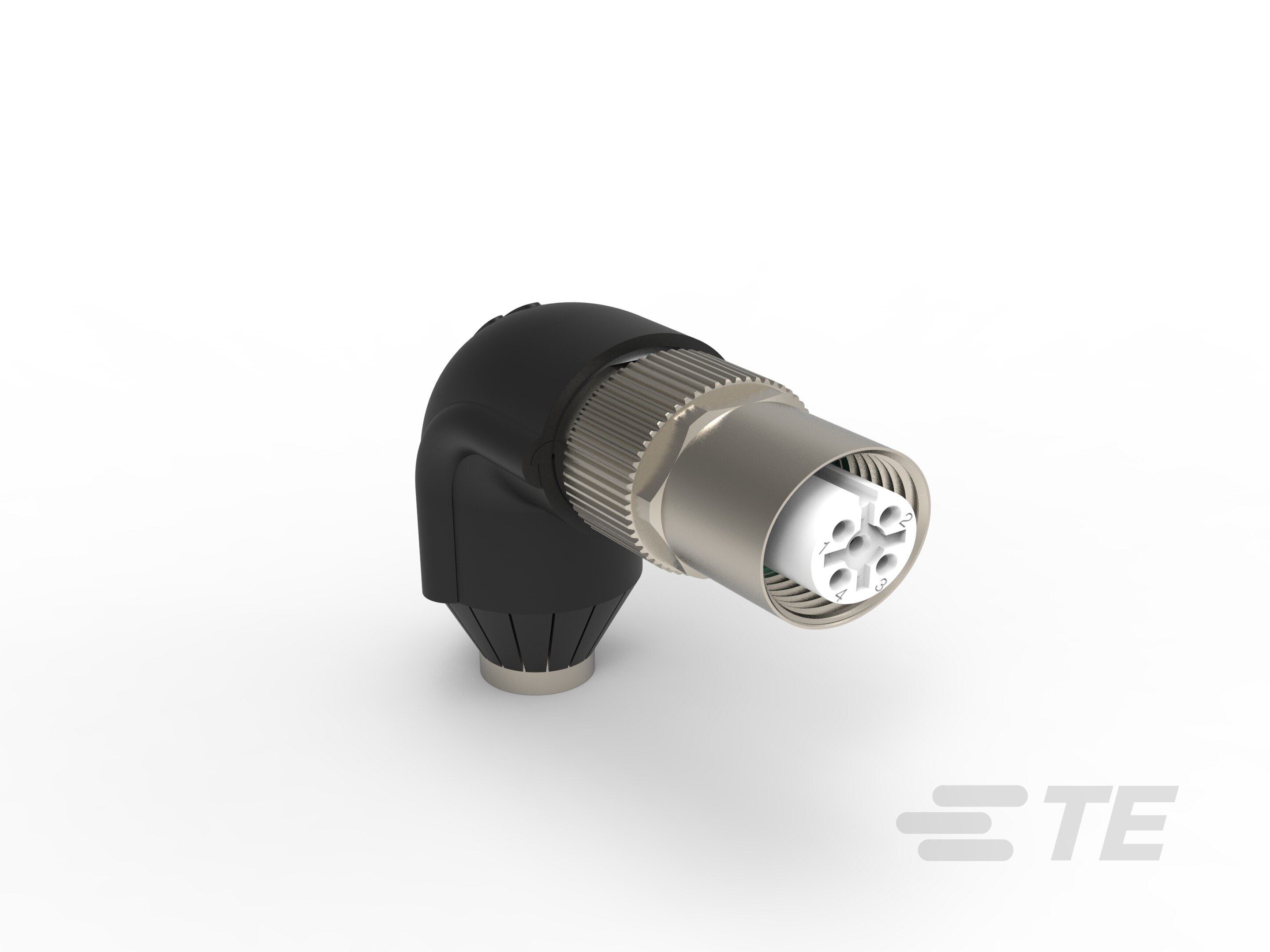

SENSOR CONNECTOR, ROTATABLE, M12, PLUG, 8 CONTACTS, CRIMP PIN, RIGHT ANGLE CABLE MOUNT
| Part | Termination | Shielding | Voltage Rating | Ingress Protection Description | Ingress Protection IP Rating | Orientation | Fastening Type | Features | Shell Material | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Number of Positions | Shell Size - Insert | Contact Finish - Mating | Primary Material | Shell Finish | Connector Type | Insert Material | Color | Current Rating | Material Flammability Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Crimp | Shielded | 30 V | Dust Tight Waterproof | IP67 | A | Threaded | Backshell Rotatable | Copper | -40 °C | 70 °C | Free Hanging (In-Line) Right Angle | 8 | M12-8 | Gold | Metal | Nickel | Male Pins Plug | Thermoplastic | Silver | 2 A | UL94 V-0 | Copper Alloy |
 TE Connectivity AMP Connectors | |||||||||||||||||||||||
 TE Connectivity AMP Connectors |
