1969604 Series

Catalog

CONN HOUSING PL 20 POS 4.2MM CRIMP ST CABLE MOUNT WHITE PACKAGE

Part	Mounting Type	Contact Termination	Row Spacing	Number of Positions	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Number of Rows	Color	Connector Type	Contact Type	Fastening Type	Note

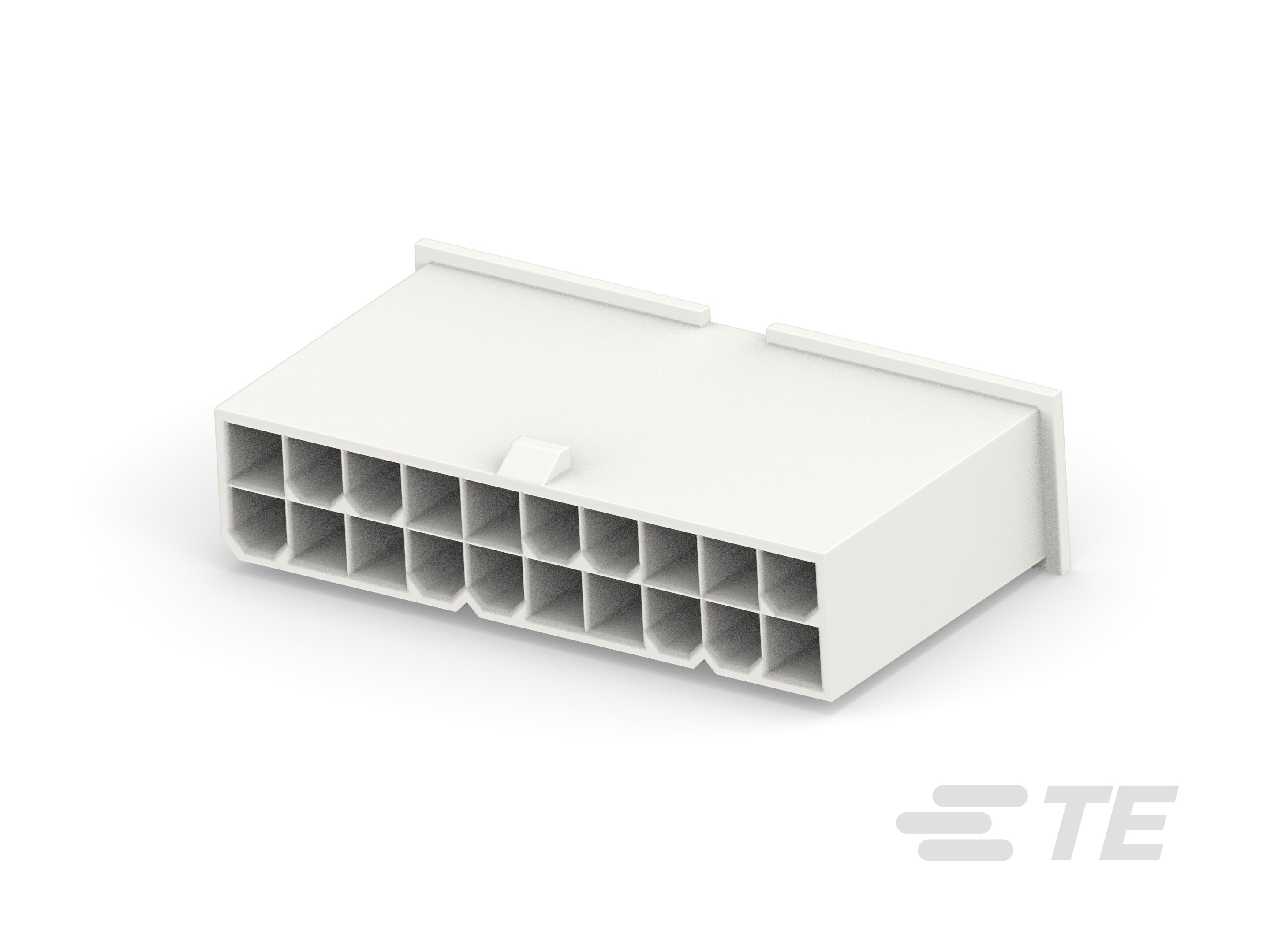

TE Connectivity AMP Connectors 2-1969604-0	Free Hanging (In-Line)	Crimp	0.165 in	20	Nylon Polyamide (PA)	-40 °C	105 °C	0.165 in	2	Natural	Plug	Male Pin	Locking Ramp	Contacts Not Included
TE Connectivity AMP Connectors 1-1969604-2	Free Hanging (In-Line)	Crimp	0.165 in	12	Nylon Polyamide (PA)	-40 °C	105 °C	0.165 in	2	Natural	Plug	Male Pin	Locking Ramp	Contacts Not Included

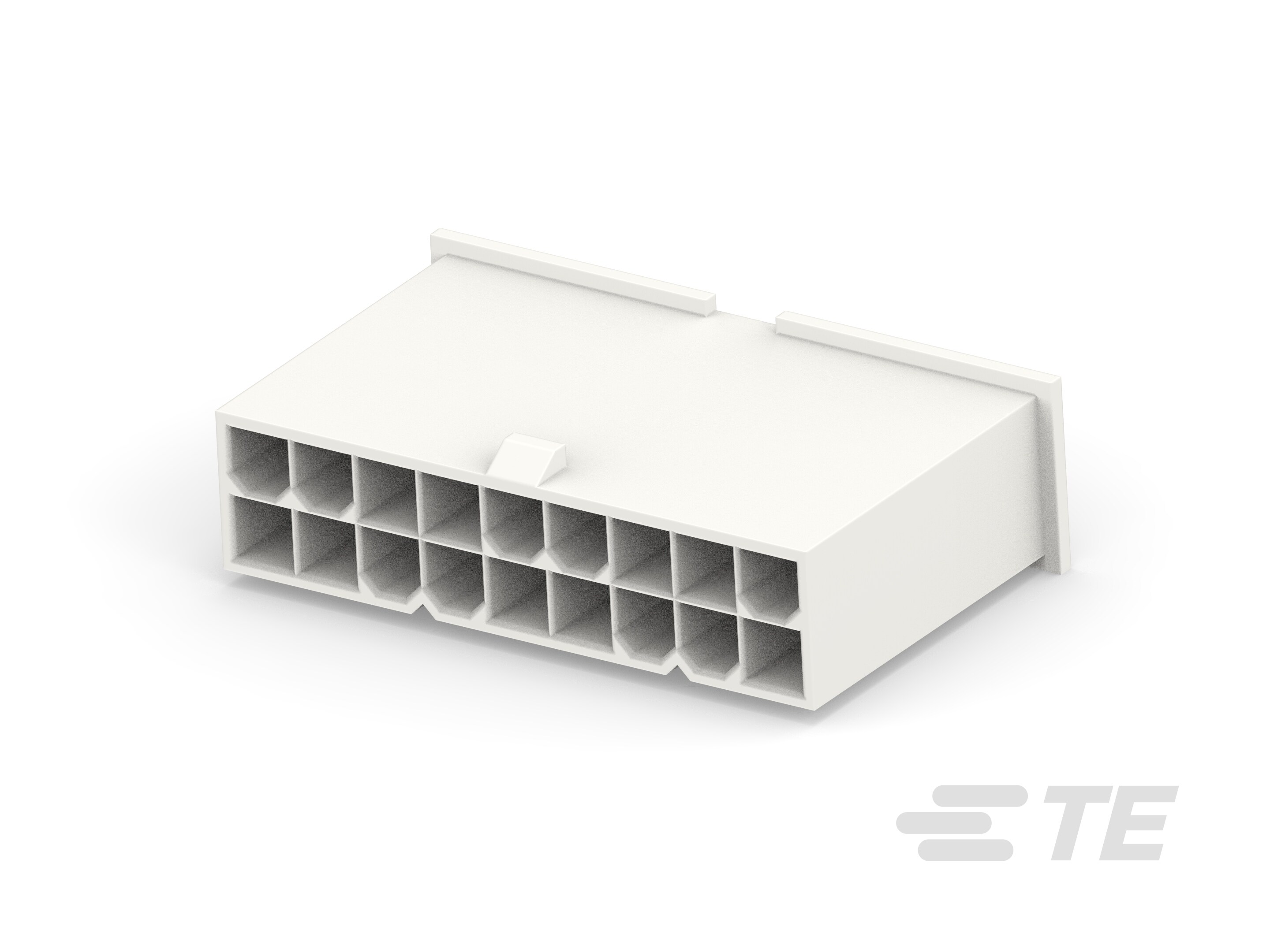

TE Connectivity AMP Connectors 1-1969604-8	Free Hanging (In-Line)	Crimp	0.165 in	18	Nylon Polyamide (PA)	-40 °C	105 °C	0.165 in	2	Natural	Plug	Male Pin	Locking Ramp	Contacts Not Included

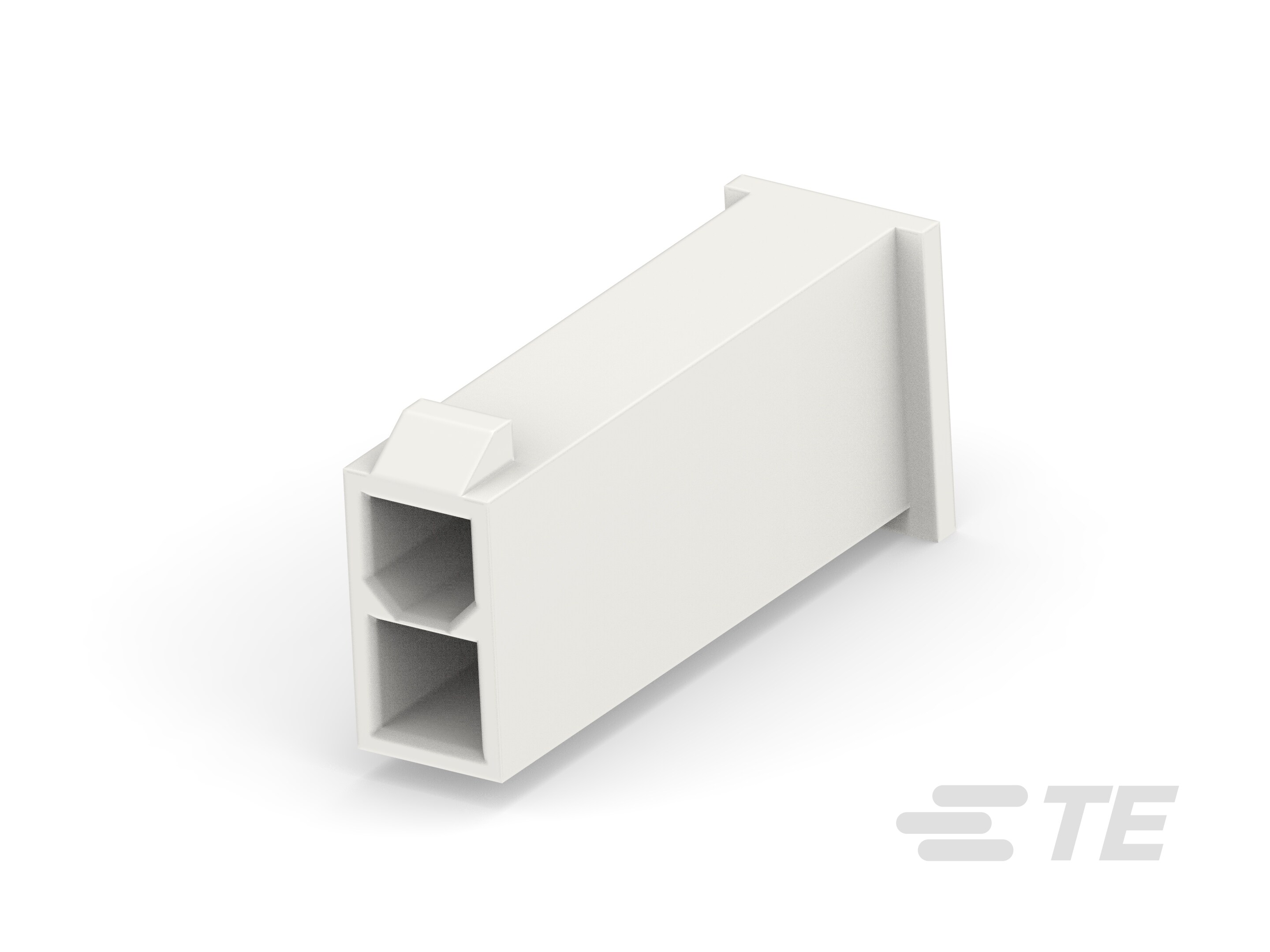

TE Connectivity AMP Connectors 1969604-2	Free Hanging (In-Line)	Crimp	0.165 in	2	Nylon Polyamide (PA)	-40 °C	105 °C		2	Natural	Plug	Male Pin	Locking Ramp	Contacts Not Included

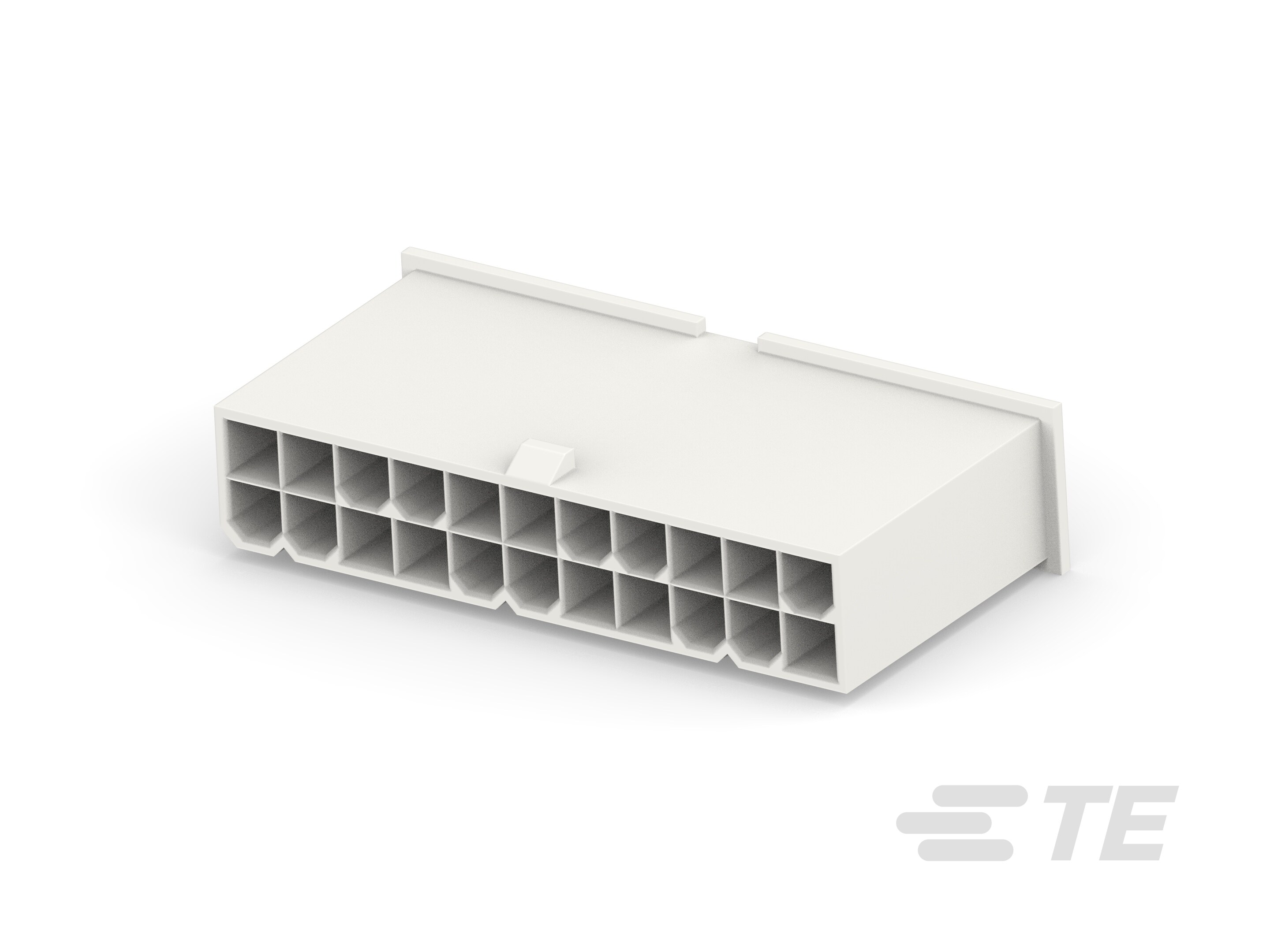

TE Connectivity AMP Connectors 2-1969604-2	Free Hanging (In-Line)	Crimp	0.165 in	22	Nylon Polyamide (PA)	-40 °C	105 °C	0.165 in	2	Natural	Plug	Male Pin	Locking Ramp	Contacts Not Included
TE Connectivity AMP Connectors 1969604-4	Free Hanging (In-Line)	Crimp	0.165 in	4	Nylon Polyamide (PA)	-40 °C	105 °C	0.165 in	2	Natural	Plug	Male Pin	Locking Ramp	Contacts Not Included
TE Connectivity AMP Connectors 1969604-8	Free Hanging (In-Line)	Crimp	0.165 in	8	Nylon Polyamide (PA)	-40 °C	105 °C	0.165 in	2	Natural	Plug	Male Pin	Locking Ramp	Contacts Not Included
