PIC24FJ64GA004 Series | Microchip Technology | Zenode.ai

Catalog

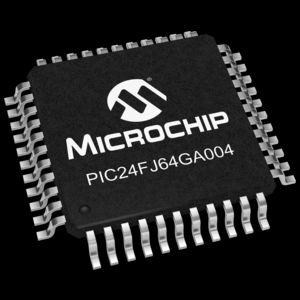

MCU 16-BIT PIC RISC 64KB FLASH 2.5V/3.3V 44-PIN TQFP TRAY

Part	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Core Size (Bit Width)	Program Memory Width	Program Memory Size	Program Memory Depth	Program Memory Type	Peripherals	Connectivity	Number of I/O	A/D Resolution (bits)	A/D Channels	Package Width	Package Name	Package Length	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Mounting Type	Speed	RAM Size Width	RAM Size Depth	Oscillator Type
Microchip Technology PIC24FJ64GA004-I/PT	PIC	85 °C	-40 °C	44-TQFP	16 Bit	24	64 KB	22 K	FLASH	Brown-out Detect LVD POR PWM Reset WDT	I2C PMP SPI UART USART	35	10 bit	13 count	10 mm	44‑TQFP	10 mm	3.6 V	2 V	Surface Mount	32 MHz	8 bit	8 K	Internal
Microchip Technology PIC24FJ64GA004T-I/PT	PIC	85 °C	-40 °C	44-TQFP	16 Bit	24	64 KB	22 K	FLASH	Brown-out Detect LVD POR PWM Reset WDT	I2C PMP SPI UART USART	35	10 bit	13 count	10 mm	44‑TQFP	10 mm	3.6 V	2 V	Surface Mount	32 MHz	8 bit	8 K	Internal
Microchip Technology PIC24FJ64GA004T-I/ML	PIC	85 °C	-40 °C	44-VQFN Exposed Pad	16 Bit	24	64 KB	22 K	FLASH	Brown-out Detect LVD POR PWM Reset WDT	I2C PMP SPI UART USART	35	10 bit	13 count	8 mm	44-QFN	8 mm	3.6 V	2 V	Surface Mount	32 MHz	8 bit	8 K	Internal
Microchip Technology PIC24FJ64GA004-E/ML	PIC	125 °C	-40 °C	44-VQFN Exposed Pad	16 Bit	24	64 KB	22 K	FLASH	Brown-out Detect LVD POR PWM Reset WDT	I2C PMP SPI UART USART	35	10 bit	13 count	8 mm	44-QFN	8 mm	3.6 V	2 V	Surface Mount	32 MHz	8 bit	8 K	Internal
Microchip Technology PIC24FJ64GA004-I/ML	PIC	85 °C	-40 °C	44-VQFN Exposed Pad	16 Bit	24	64 KB	22 K	FLASH	Brown-out Detect LVD POR PWM Reset WDT	I2C PMP SPI UART USART	35	10 bit	13 count	8 mm	44-QFN	8 mm	3.6 V	2 V	Surface Mount	32 MHz	8 bit	8 K	Internal
Microchip Technology PIC24FJ64GA004-E/PT	PIC	125 °C	-40 °C	44-TQFP	16 Bit	24	64 KB	22 K	FLASH	Brown-out Detect LVD POR PWM Reset WDT	I2C PMP SPI UART USART	35	10 bit	13 count	10 mm	44‑TQFP	10 mm	3.6 V	2 V	Surface Mount	32 MHz	8 bit	8 K	Internal
