019212 Series
Manufacturer: Molex
Beta
⌘K

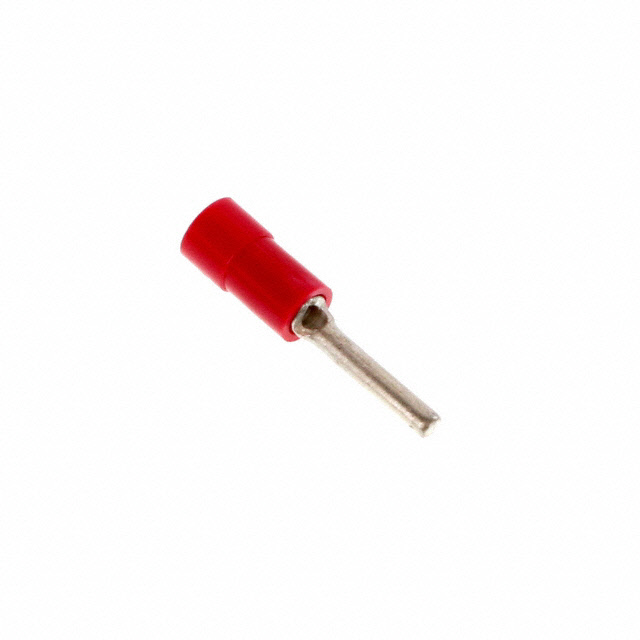

CONN WIRE PIN TERM 18-22AWG
| Part | Length - Termination | Diameter - Barrel ID | Material - Insulation | Contact Finish | Contact Material | Insulation | Length - Overall | Termination | Color | Insulation Diameter | Length - Pin | Pin Diameter Shape | Pin Diameter | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.4 in | 0.055 in | Poly-Vinyl Chloride PVC | Tin | Copper | Insulated | 0.93 in | Crimp | Red | 0.145 in | 0.39 " | Circular | 0.078 in | 18 AWG | 22 AWG |
 Molex | 0.411 in | 0.081 in | Poly-Vinyl Chloride PVC | Tin | Copper | Insulated | 0.93 in | Crimp | Blue | 0.175 in | 0.35 " | Circular | 0.078 in | 14 AWG | 16 AWG |
 Molex | 0.545 in | 0.126 in | Poly-Vinyl Chloride PVC | Tin | Copper | Insulated | 1.12 in | Crimp | Yellow | 0.25 in | 0.45 in | Circular | 0.107 in | 10 AWG | 12 AWG |
Molex | 0.545 in | 0.126 in | Poly-Vinyl Chloride PVC | Tin | Copper | Insulated | 1.12 in | Crimp | Yellow | 0.25 in | 0.45 in | Circular | 0.107 in | 10 AWG | 12 AWG |
 Molex | 0.545 in | 0.126 in | Poly-Vinyl Chloride PVC | Tin | Copper | Insulated | 1.12 in | Crimp | Yellow | 0.25 in | 0.45 in | Circular | 0.107 in | 10 AWG | 12 AWG |
