61498 Series

Catalog

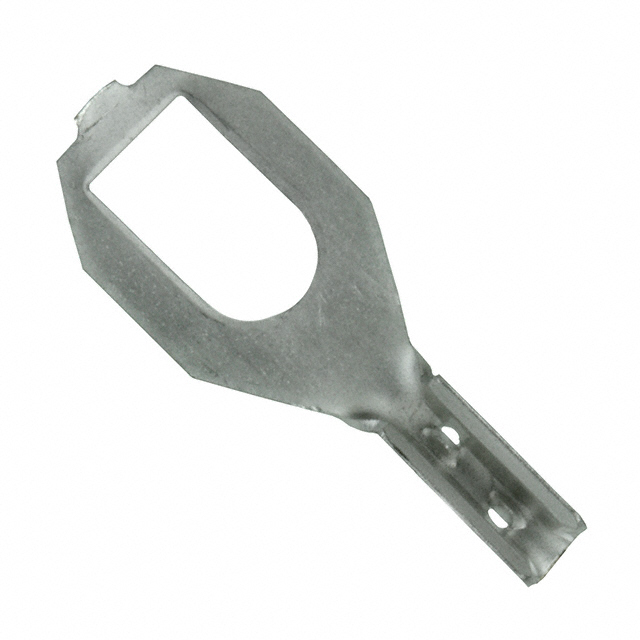

FORK / SPADE TONGUE TERMINAL, 28AWG TO 22AWG, 0.4 MM², M3, #5, UNINSULATED

Part	Length - Ring Center to Termination	Length - Termination	Tongue Inside Opening	Termination	Stud/Tab Size	Contact Material	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Mounting Type	Width - Outer Edges	Insulation	Terminal Type	Insulation Diameter (Min)	Insulation Diameter (Max)

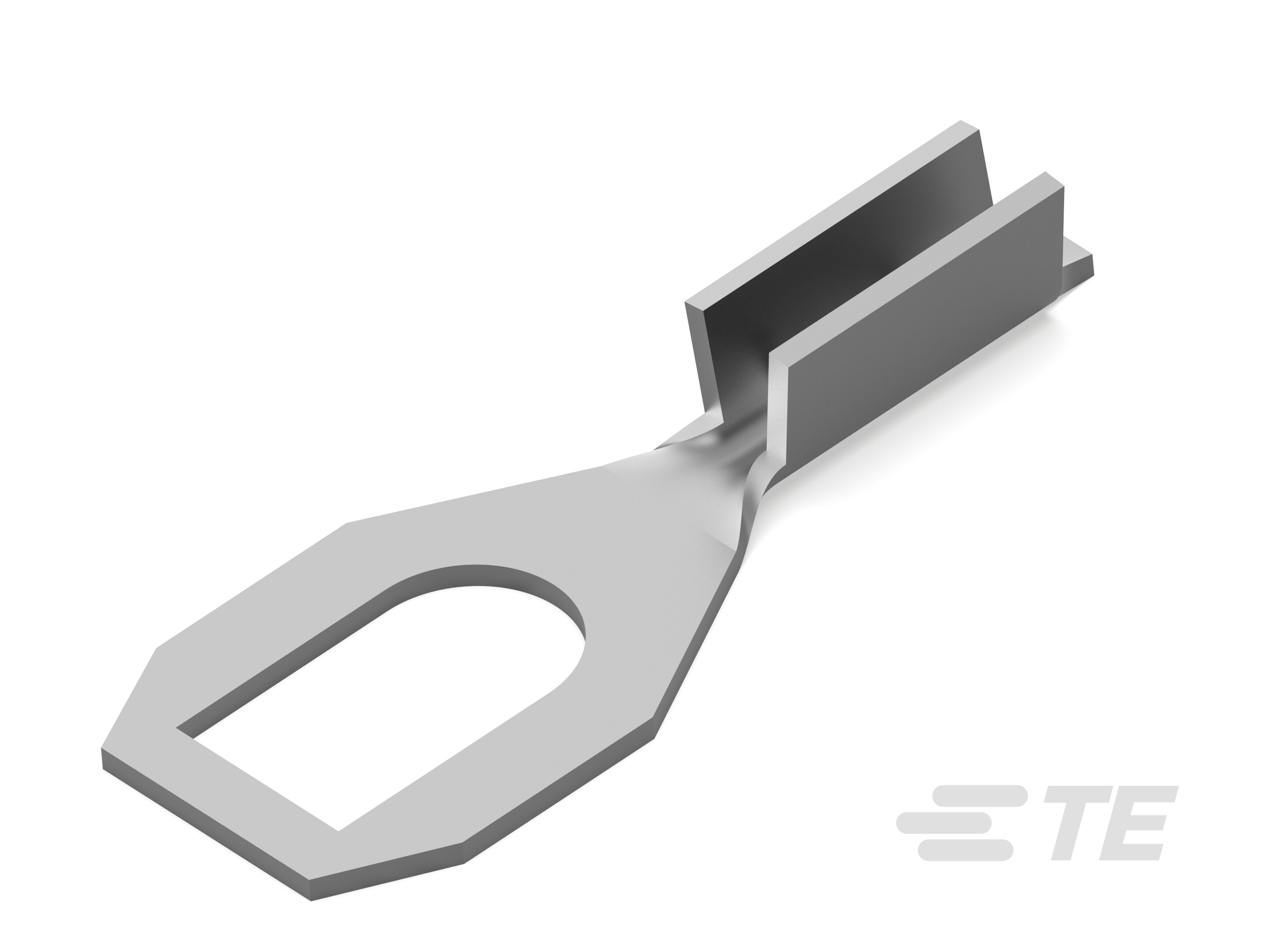

TE Connectivity AMP Connectors 61498-2	0.215 in	0.212 in	0.133 in	Crimp Piercing	5 Stud	Brass	0.578 in	28 AWG	22 AWG	Tin	Free Hanging (In-Line)	0.25 in	Non-Insulated	Standard
TE Connectivity AMP Connectors 61498-3	0.215 in	0.212 in	0.133 in	Crimp Piercing	5 Stud	Brass	0.578 in	28 AWG	22 AWG	Tin	Free Hanging (In-Line)	0.25 in	Non-Insulated	Standard	0.035 in	0.04 in
