Industrial Relays Power Relay

Part	Release Time	Must Operate Voltage	Mounting Type	Relay Type	Load - Max Switching (Real Power)	Load - Max Switching (Apparent Power)	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Approval Agency	Coil Insulation	Coil Type	Form A Count	Contact Form	Coil Current	Operate Time	Coil Voltage	Contact Rating (Current)	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Coil Resistance
Omron Automation and Safety MGN2A-DC24	30 ms	18 VDC	Chassis Mount	General Purpose	840 W	18000 VA	Screw Terminal	-40 °C	115 °C	cURus	Class F	Non Latching	2	DPST-NO	83.3 mA	30 ms	24 VDC	30 A	600 VAC	28 VDC	290 Ohms

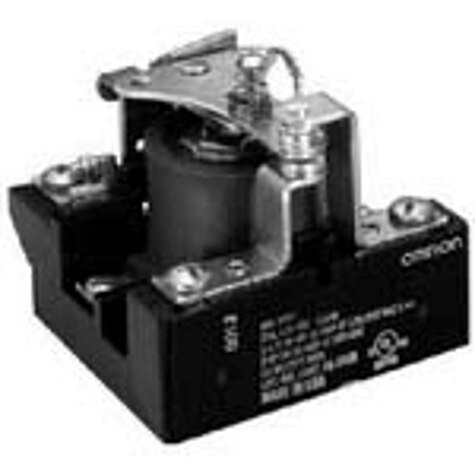

Omron Automation and Safety MGN2A-DC48	30 ms	36 VDC	Chassis Mount	General Purpose	840 W	18000 VA	Screw Terminal	-40 °C	115 °C	cURus	Class F	Non Latching	2	DPST-NO	41.6 mA	30 ms	48 V	30 A	600 VAC	28 VDC	1.15 kOhms
Omron Automation and Safety MGN2A-DC110	30 ms	82.5 VDC	Chassis Mount	General Purpose	840 W	18000 VA	Screw Terminal	-40 °C	115 °C	cURus	Class F	Non Latching	2	DPST-NO	18.2 mA	30 ms	110 V	30 A	600 VAC	28 VDC	6.05 kOhms
Omron Automation and Safety MGN2A-AC120	30 ms	102 VAC	Chassis Mount	General Purpose	840 W	18000 VA	Screw Terminal	-45 °C	80 °C	cURus	Class F	Non Latching	2	DPST-NO	79 mA	30 ms	120 V	30 A	600 VAC	28 VDC	295 Ohms
Omron Automation and Safety MGN2A-AC240	30 ms	204 VAC	Chassis Mount	General Purpose	840 W	18000 VA	Screw Terminal	-45 °C	80 °C	cURus	Class F	Non Latching	2	DPST-NO	40 mA	30 ms	240 V	30 A	600 VAC	28 VDC	1.17 kOhms
Omron Automation and Safety MGN2A-AC200	30 ms	170 VAC	Chassis Mount	General Purpose	840 W	18000 VA	Screw Terminal	-45 °C	80 °C	cURus	Class F	Non Latching	2	DPST-NO	47.5 mA	30 ms	200 VAC	30 A	600 VAC	28 VDC	4.2 kOhms
Omron Automation and Safety MGN2A-DC12	30 ms	9 VDC	Chassis Mount	General Purpose	840 W	18000 VA	Screw Terminal	-40 °C	115 °C	cURus	Class F	Non Latching	2	DPST-NO	167 mA	30 ms	12 VAC	30 A	600 VAC	28 VDC	72 Ohms
