HIP4020 Series

Catalog

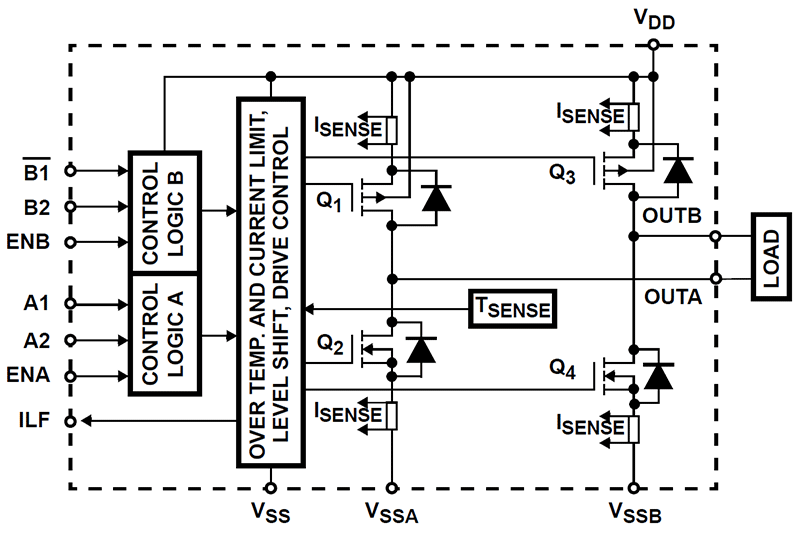

FULL BRIDGE DRIVER WITH INTEGRATED 0.5A POWER FETS FOR SMALL 3V, 5V AND 12V DC MOTORS

Part	Package Name	Features	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Fault Protection	Applications	Half-Bridge Count	Output Configuration	Package Length	Package Width	Technology	Mounting Type	Current - Output / Channel	Interface	Load Type	Voltage - Load (Min)	Voltage - Load (Max)	Operating Temperature (Max)	Operating Temperature (Min)
Renesas Electronics Corporation HIP4020IBZ	20-SOIC	Status Flag	3 V	12 V	Current Limiting Over Temperature	DC Motors Relays Solenoids Stepper Motors	2	Half Bridge	0.295 in	7.5 mm	Power MOSFET	Surface Mount	500 mA	Logic	Inductive	2.5 V	15 V	125 °C	-40 °C
Renesas Electronics Corporation HIP4020IBZT	20-SOIC	Status Flag	3 V	12 V	Current Limiting Over Temperature	DC Motors Relays Solenoids Stepper Motors	2	Half Bridge	0.295 in	7.5 mm	Power MOSFET	Surface Mount	500 mA	Logic	Inductive	2.5 V	15 V	125 °C	-40 °C
