3260 Series

Catalog

CONN TERM RECT 400 MCM

Part	Diameter - Barrel ID	Contact Material	Diameter - Barrel OD	Contact Finish	Width - Outer Edges	Insulation	Terminal Style	Length - Overall	Termination	Terminal Type	Tab Thickness	Mounting Type	Wire Gauge (MCM)	Diameter - Ring ID	Stud/Tab Size	Stud/Tab Size
TE Connectivity AMP Connectors 326016	0.876 in	Copper	1.095 in	Tin	1.61 in	Non-Insulated	No Stud Hole	4.88 in	Barrel Crimb	Standard	0.18 in	Free Hanging (In-Line)	400 MCM
TE Connectivity AMP Connectors 326021	0.876 in	Copper	1.31 in	Tin	1.61 in	Non-Insulated	No Stud Hole	5.87 in	Barrel Crimb	Standard	0.18 in	Free Hanging (In-Line)	400 MCM

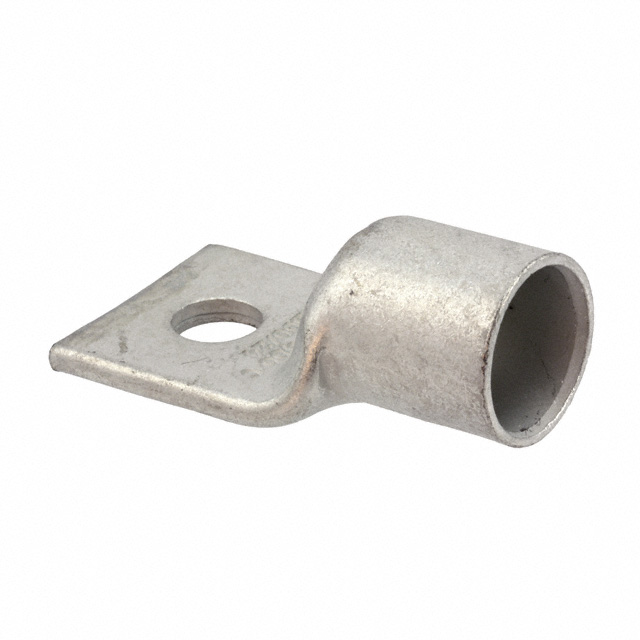

TE Connectivity AMP Connectors 326005	0.876 in	Copper	1.095 in	Tin	1.61 in	Non-Insulated	Single Stud Hole	2.89 in	Barrel Crimb	Rectangular Tongue	0.18 in	Free Hanging (In-Line)	400 MCM	0.515 in	0.5 Stud
TE Connectivity AMP Connectors 326003	0.876 in	Copper	1.08 in	Tin	1.61 in	Non-Insulated	Single Stud Hole	2.89 in	Barrel Crimb	Standard	0.18 in	Free Hanging (In-Line)	400 MCM	0.39 in	0.375 in	3 Stud 8 Stud
TE Connectivity AMP Connectors 326007	0.876 in	Copper	1.095 in	Tin	1.61 in	Non-Insulated	Single Stud Hole	3.01 in	Barrel Crimb	Standard	0.18 in	Free Hanging (In-Line)	400 MCM	0.656 in	0.625 in	5 Stud 8 Stud
