034959 Series

Manufacturer: Molex

Catalog

CONN HOUSING RCP 34 POS 2MM CRIMP ST CABLE MOUNT BLACK BAG

Part	Operating Temperature (Min)	Operating Temperature (Max)	Color	Pitch	Contact Termination	Insulation Material	Number of Rows	Mounting Type	Connector Type	Contact Type	Features	Number of Positions	Fastening Type	Note	Accessory Type	For Use With/Related Products	Row Spacing
Molex 0349590340	-40 °C	105 °C	Black	0.079 in	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	3	Free Hanging (In-Line)	Receptacle	Female Socket	Connector Position Assurance (CPA)	34	Latch Lock	Contacts Not Included
Molex 0349590384	-40 °C	105 °C	Gray	0.079 in	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	3	Free Hanging (In-Line)	Receptacle	Female Socket	Connector Position Assurance (CPA)	38	Latch Lock
Molex 0349590388			Gray	0.079 in	Crimp		3	Free Hanging (In-Line)	Receptacle	Female Socket		38	Latch Lock	Contacts Not Included
Molex 0349596301															Plug Polarizing Device (Key Post) Secondary Lock	CTX50 Series
Molex 0349590341	-40 °C	105 °C	Gray	0.079 in	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	3	Free Hanging (In-Line)	Receptacle	Female Socket	Connector Position Assurance (CPA)	34	Latch Lock	Contacts Not Included
Molex 0349590342	-40 °C	105 °C	Gray	0.079 in	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	3	Free Hanging (In-Line)	Receptacle	Female Socket	Connector Position Assurance (CPA)	34	Latch Lock	Contacts Not Included

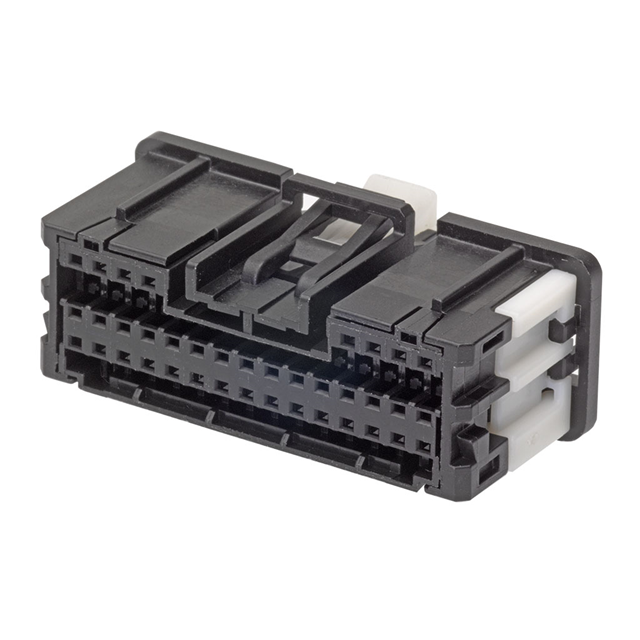

Molex 0349590391			Gray	0.079 in	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	3	Free Hanging (In-Line)	Receptacle	Female Socket		38	Latch Lock	Contacts Not Included
Molex 0349591340			Black	0.079 in	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	2	Free Hanging (In-Line)	Receptacle	Female Socket		34	Latch Lock				0.157 in
Molex 0349590348	-40 °C	105 °C	Gray	0.079 in	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	3	Free Hanging (In-Line)	Receptacle	Female Socket		34	Latch Lock	Contacts Not Included
Molex 0349590392	-40 °C	105 °C	Gray	0.079 in	Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	3	Free Hanging (In-Line)	Receptacle	Female Socket	Sealed	38	Latch Lock
