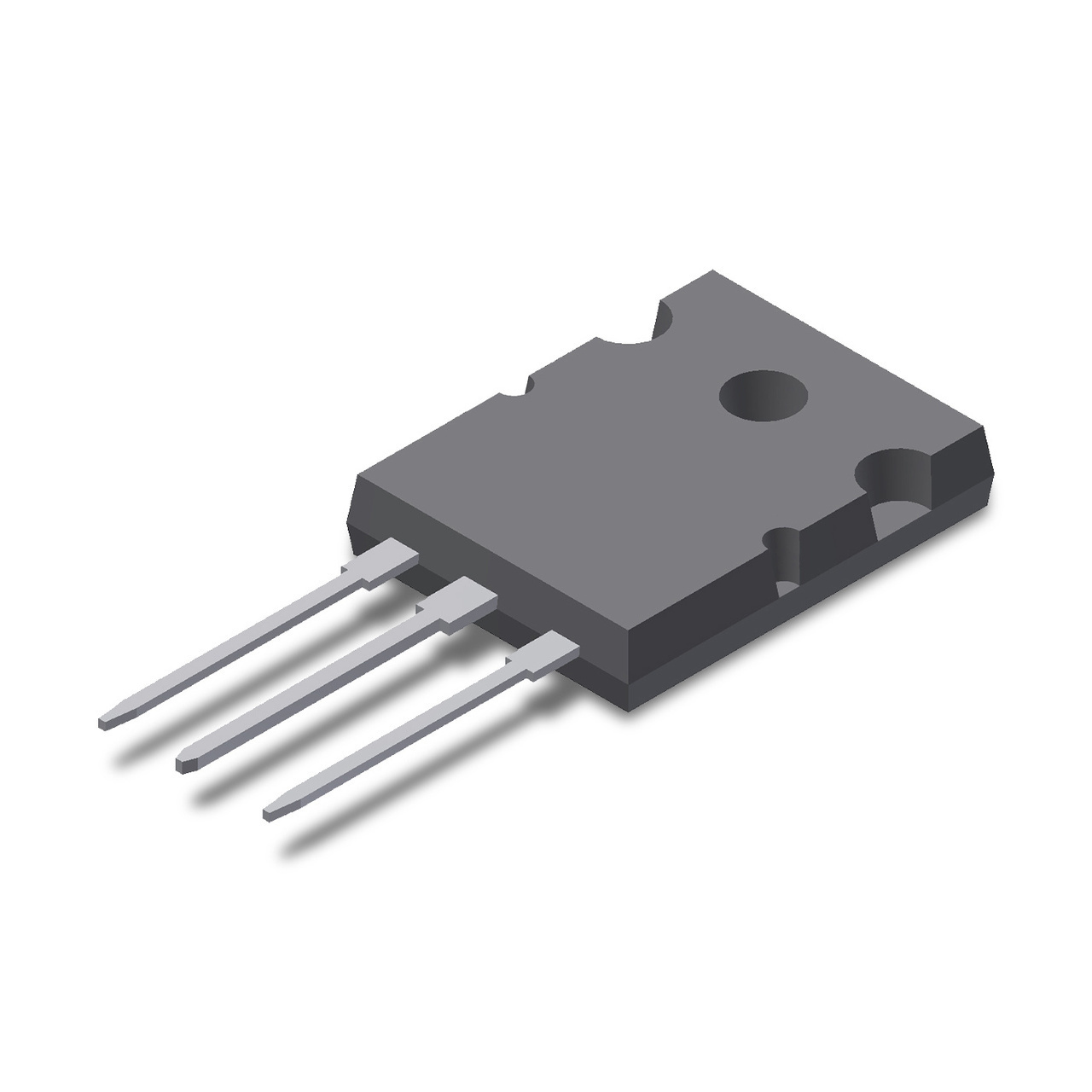

Disc IGBT XPT Gen4 1200V 110A TO264
Disc IGBT XPT Gen4 1200V 110A TO264
| Part | Input Type | Mounting Type | Test Condition Current | Test Condition Resistance | Test Condition Voltage | Test Condition Voltage (Secondary) | Package / Case | Gate Charge | Current - Collector Pulsed (Icm) | Td (off) @ 25°C | Td (on) @ 25°C | Switching Energy (On) | Switching Energy (Off) | Operating Temperature (Min) | Operating Temperature (Max) | Reverse Recovery Time (trr) | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Package Name | Vce(on) (Max) | Power - Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Standard | Through Hole | 50 A | 2 Ohm | 600 V | 15 V | TO-264-3 TO-264AA | 330 nC | 740 A | 320 ns | 40 ns | 3.6 mJ | 1.9 mJ | -55 °C | 175 °C | 48 ns | 310 A | 1200 V | PLUS264™ | 2.4 V | 1360 W |
