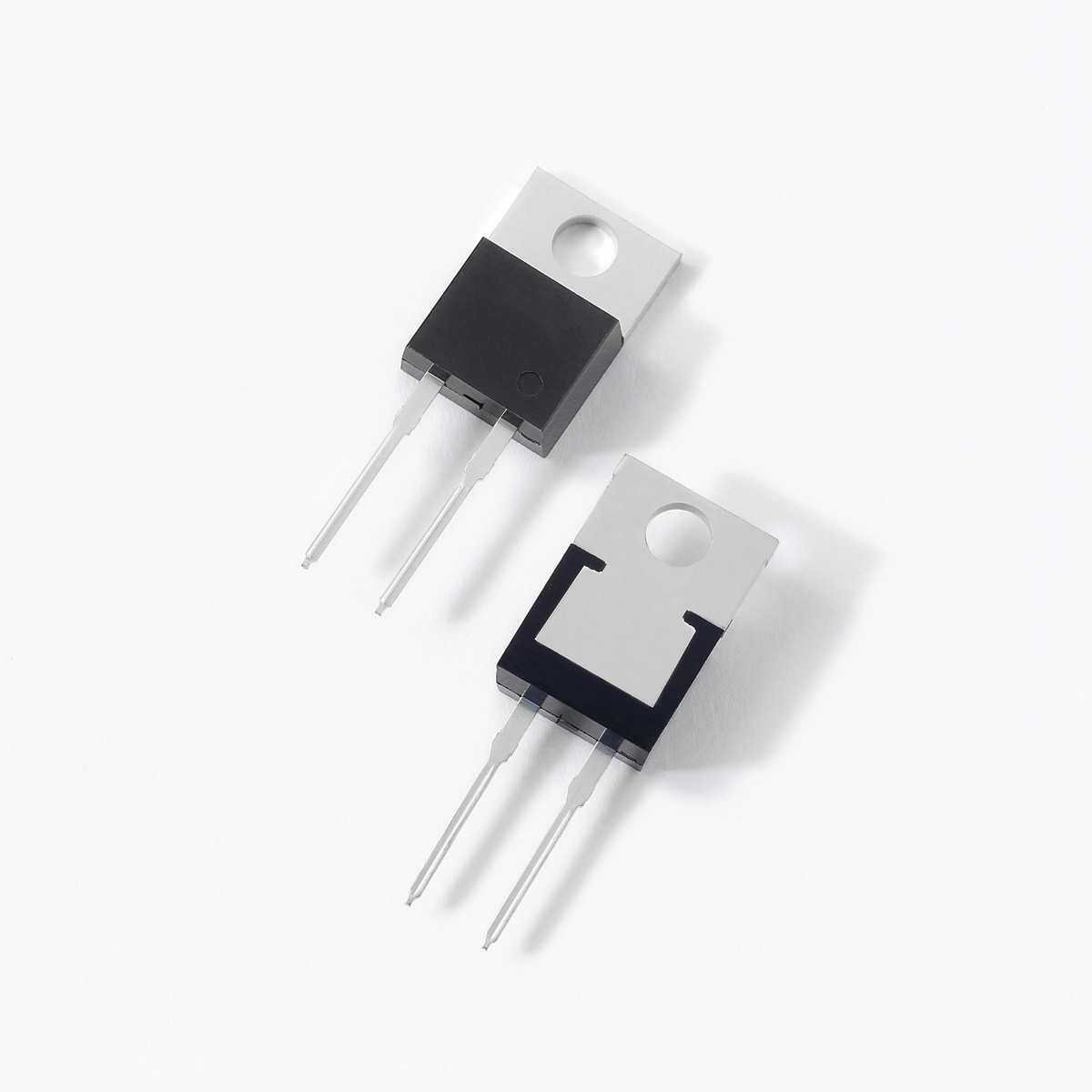

DST5200 Series

200V 5A Ultralow Schottky DST _TO-220AC

Catalog

200V 5A Ultralow Schottky DST _TO-220AC

Part	Package / Case	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Package Name	Mounting Type	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Voltage - DC Reverse (Vr) (Max)	Technology	Current - Average Rectified (Io)	Current - Reverse Leakage	Voltage - Forward (Vf) (Max)
LITTELFUSE DST5200	TO-220-2	500 ns	200 mA	TO-220AC	Through Hole	150 °C	-55 °C	200 V	Schottky	5 A	150 µA	900 mV

Catalog

200V 5A Ultralow Schottky DST _TO-220AC

Description

Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products. It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
