2108793 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

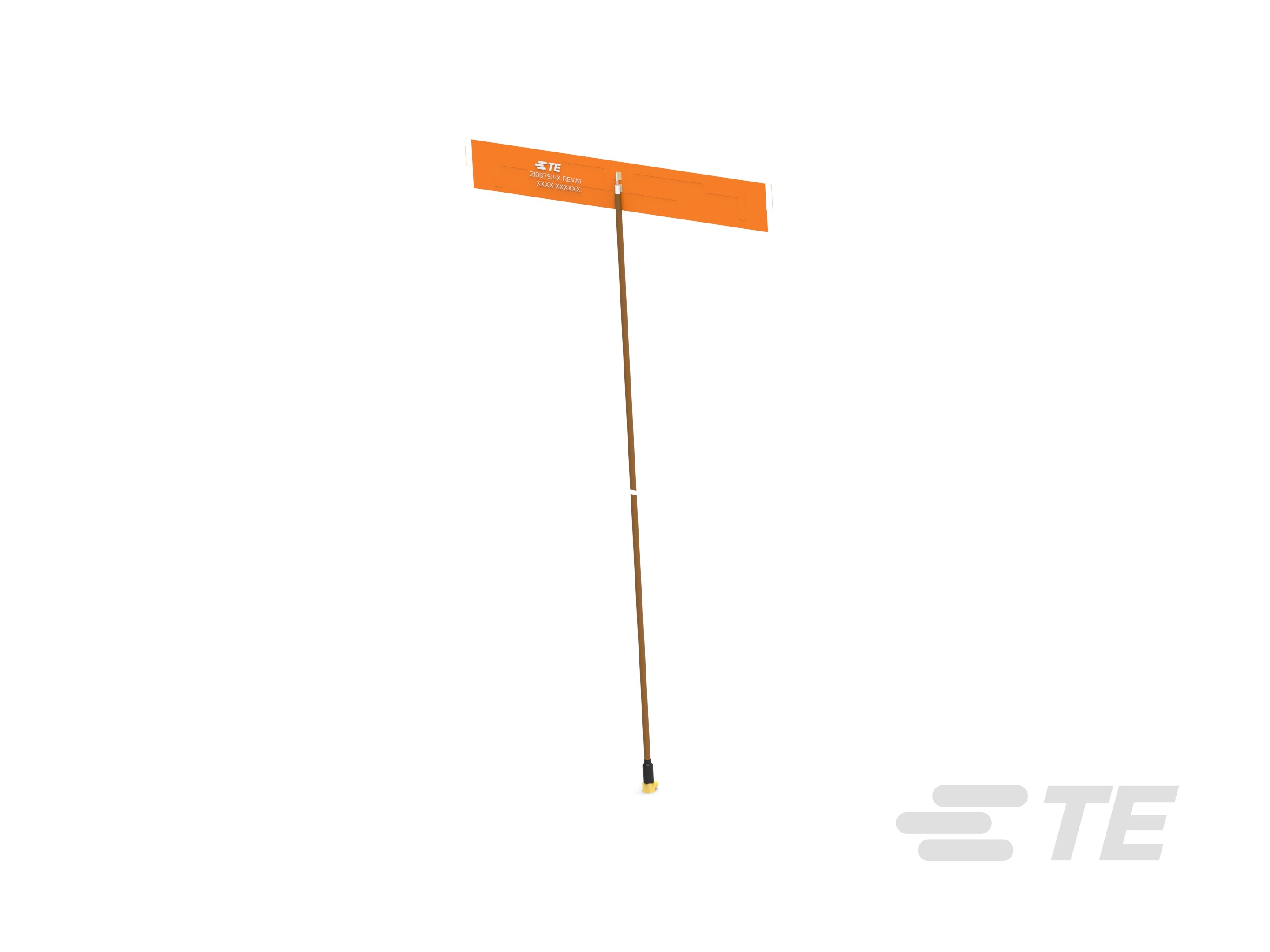

ANTENNAS FPC ANT,MMCX,170MM,824-960&2400-2500MHZ
| Part | Termination | Frequency Range (Band 1) Minimum | Frequency Range (Band 2) Maximum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Minimum | Applications | Frequency (Center) | Frequency (Band) | Gain | Height (Max) | RF Family/Standard | Mounting Type | Antenna Type | VSWR | Features | Number of Bands | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | MMCX | 902 MHz | 2.4835 GHz | 928 MHz | 2.4 GHz | Bluetooth ISM Wi-Fi Zigbee™ | 915 MHz | 2.44 GHz | 2 dBi 2.1 dBi | 0.012 in | 802.15.4 Bluetooth General ISM WiFi | Adhesive | PCB Trace | 2 | 185mm Cable | 2 | 2 GHz 300 MHz | UHF | 1 GHz 3 GHz |
TE Connectivity AMP Connectors | MMCX | 902 MHz | 2.4835 GHz | 928 MHz | 2.4 GHz | Bluetooth ISM Wi-Fi Zigbee™ | 915 MHz | 2.44 GHz | 2 dBi 2.1 dBi | 0.012 in | 802.15.4 Bluetooth General ISM WiFi | Adhesive | PCB Trace | 2 | 255mm Cable | 2 | 2 GHz 300 MHz | UHF | 1 GHz 3 GHz |
