1986469 Series

Catalog

TSB2000K05DSHT=EUROPA BL,14.5M

Part	Voltage Rating	Pitch	Top Termination	Terminal Block Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Number of Circuits	Number of Rows	Current Rating	Color	Bottom Termination	Barrier Type	Number of Wire Entries	Terminal Screw Material	Terminal Screw Finish	Mounting Type	Material Flammability Rating	Material - Insulation	Operating Temperature
TE Connectivity AMP Connectors 1986469-5	600 V	0.571 in	Screws	Eurostyle Terminal Strip	14 AWG	6 AWG	5	2	65 A	Brown	Closed	Enclosed	10	Steel	Hexavalent Chromate Zinc	Chassis Panel	UL94 V-0	Nylon 6 PA6 Polyamide	150 °C
TE Connectivity AMP Connectors 1986469-6	600 V	0.571 in	Screws	Eurostyle Terminal Strip	14 AWG	6 AWG	6	2	65 A	Brown	Closed	Enclosed	12	Steel	Hexavalent Chromate Zinc	Chassis Panel	UL94 V-0	Nylon 6 PA6 Polyamide	150 °C

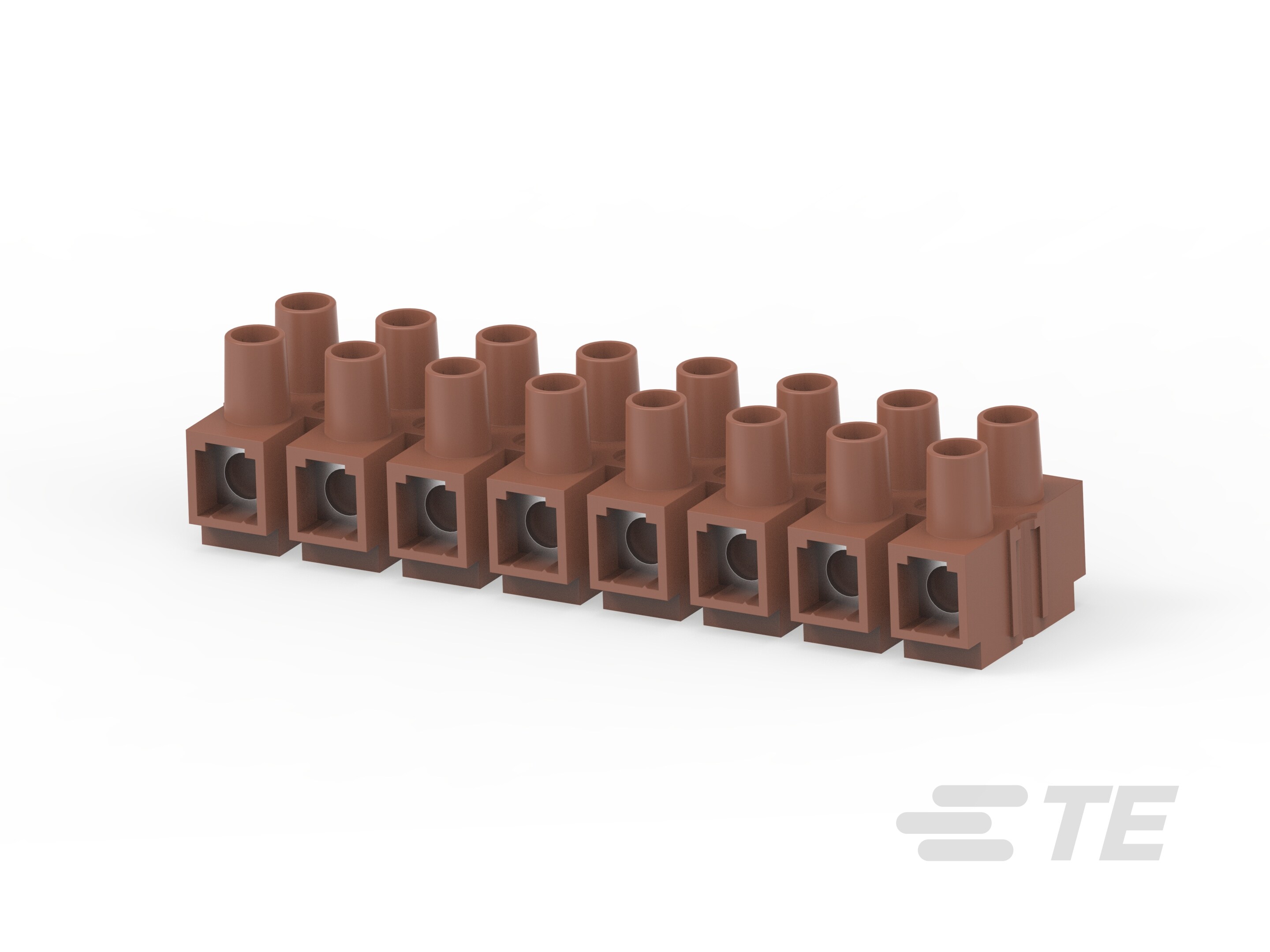

TE Connectivity AMP Connectors 1986469-8	600 V	0.571 in	Screws	Eurostyle Terminal Strip	14 AWG	6 AWG	8	2	65 A	Brown	Closed	Enclosed	16	Steel	Hexavalent Chromate Zinc	Chassis Panel	UL94 V-0	Nylon 6 PA6 Polyamide	150 °C
