PCIE Series

Catalog

CARD EDGE CONNECTOR, W/ ALIGNMENT PIN, DUAL SIDE, 1.6 MM, 64 CONTACTS, SURFACE MOUNT, STRAIGHT

Part	Contact Type	Card Type	Number of Rows	Read Out	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Gender	Card Thickness	Number of Bay	Contact Material	Termination	Pitch	Contact Finish	Mounting Type	Contact Finish Thickness	Features	Color
Samtec Inc. PCIE-G4-04-01-S-DV-A-K-TR	Cantilever	PCI Express™	2	Dual	11 64	125 °C	-55 °C	Female	0.062 in	21	Copper Alloy	Solder	0.039 in	Gold	Surface Mount	30 µin	Board Guide Pick and Place	Black
Samtec Inc. PCIE-064-02-F-D-EMS3		PCI Express™	2	Dual	64	125 °C	-55 °C	Female	0.062 in		Phosphor Bronze	Solder	0.039 in	Gold	Board Edge Straddle Mount	3 µin	Locking Ramp	Black

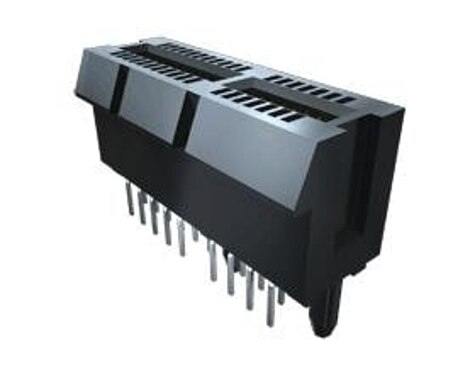

Samtec Inc. PCIE-036-02-F-D-EMS2-BG		PCI Express™	2	Dual	36	125 °C	-55 °C	Female	0.062 in		Phosphor Bronze	Solder	0.039 in	Gold	Board Edge Straddle Mount	3 µin	Board Guide	Black
Samtec Inc. PCIE-064-02-S-D-RA		PCI Express™	2	Dual	64	125 °C	-55 °C	Female	0.062 in		Phosphor Bronze	Solder Staggered	0.039 in	Gold	Right Angle Through Hole	30 µin	Board Guide	Black
Samtec Inc. PCIE-064-02-S-D-EMS2-BG		PCI Express™	2	Dual	64	125 °C	-55 °C	Female	0.062 in		Phosphor Bronze	Solder	0.039 in	Gold	Board Edge Straddle Mount	30 µin	Board Guide	Black
