044133 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 14POS 3.00MM

Part	Operating Temperature (Min)	Operating Temperature (Max)	Color	Insulation Material	Mounting Type	Number of Rows	Connector Type	Number of Positions	Contact Type	Pitch	Row Spacing	Features	Contact Termination	Note	Fastening Type
Molex 0441331400	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT) Polyester	Panel Mount	2	Receptacle	14	Female Socket	0.118 in	0.118 in	Blind Mating	Crimp	Contacts Not Included
Molex 0441331408			Black	Nylon Polyamide (PA)	Panel Mount	2	Receptacle	14	Female Socket	0.118 in	0.118 in		Crimp		Push-Pull

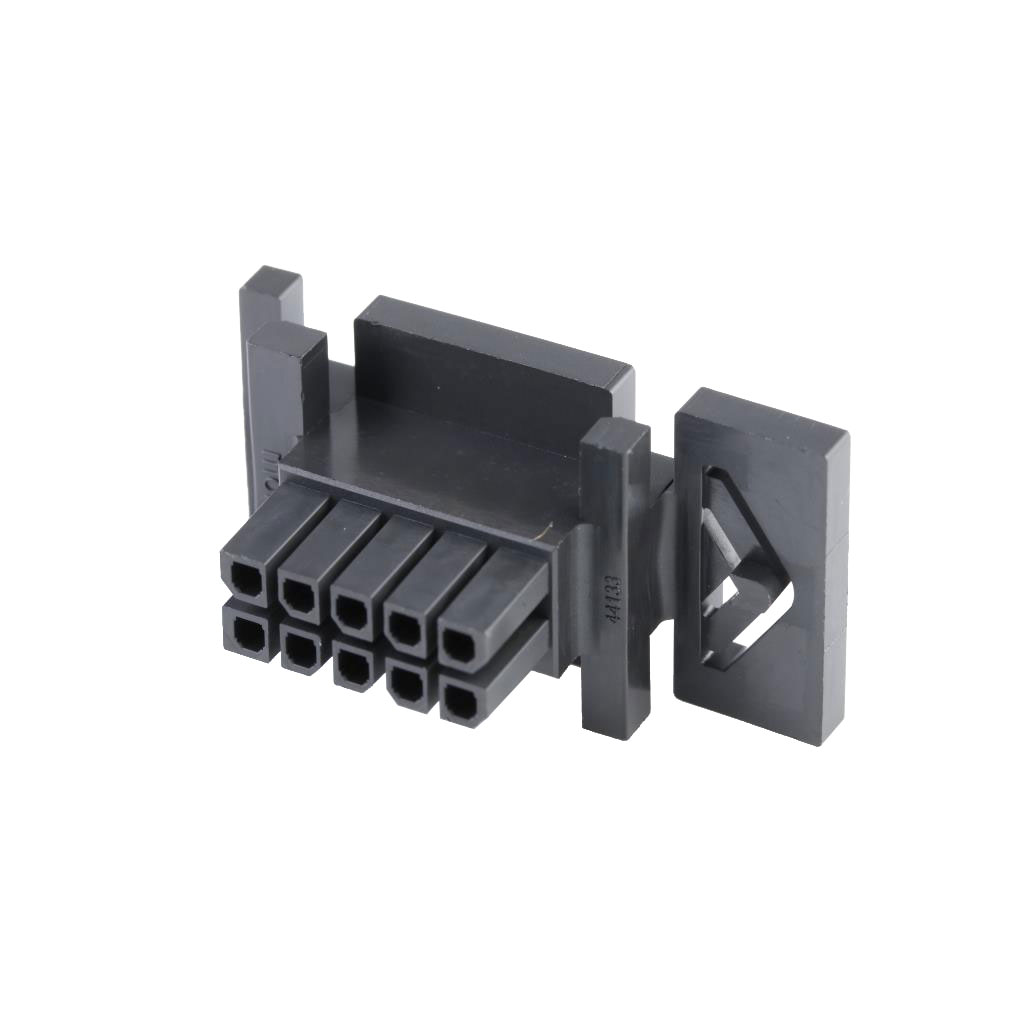

Molex 0441331011	-40 °C	105 °C	Black	Nylon Polyamide (PA)	Free Hanging (In-Line) Panel Mount	2	Receptacle	10	Female Socket	0.118 in	0.118 in	Glow Wire Compliant	Crimp		Push-Pull

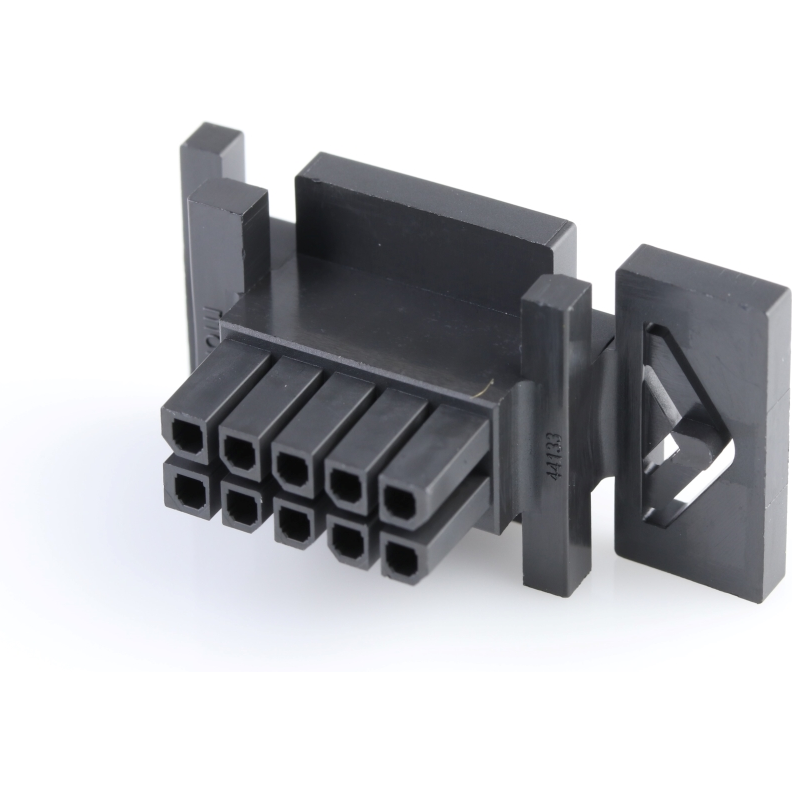

Molex 0441331008	-40 °C	105 °C	Black	Nylon Polyamide (PA)	Panel Mount	2	Receptacle	10	Female Socket	0.118 in	0.118 in	Blind Mating	Crimp	Contacts Not Included
Molex 0441332200	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT) Polyester	Panel Mount	2	Receptacle	22	Female Socket	0.118 in	0.118 in	Blind Mating	Crimp	Contacts Not Included
Molex 0441331800	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT) Polyester	Panel Mount	2	Receptacle	18	Female Socket	0.118 in	0.118 in	Blind Mating	Crimp	Contacts Not Included
Molex 0441331200	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT) Polyester	Panel Mount	2	Receptacle	12	Female Socket	0.118 in	0.118 in	Blind Mating	Crimp	Contacts Not Included
Molex 0441330600	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT) Polyester	Panel Mount	2	Receptacle	6	Female Socket	0.118 in	0.118 in	Blind Mating	Crimp	Contacts Not Included
Molex 0441331600	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT) Polyester	Panel Mount	2	Receptacle	16	Female Socket	0.118 in	0.118 in	Blind Mating	Crimp	Contacts Not Included
Molex 0441332400	-40 °C	105 °C	Black	Polybutylene Terephthalate (PBT) Polyester	Panel Mount	2	Receptacle	24 pos	Female Socket	0.118 in	0.118 in	Blind Mating	Crimp	Contacts Not Included
