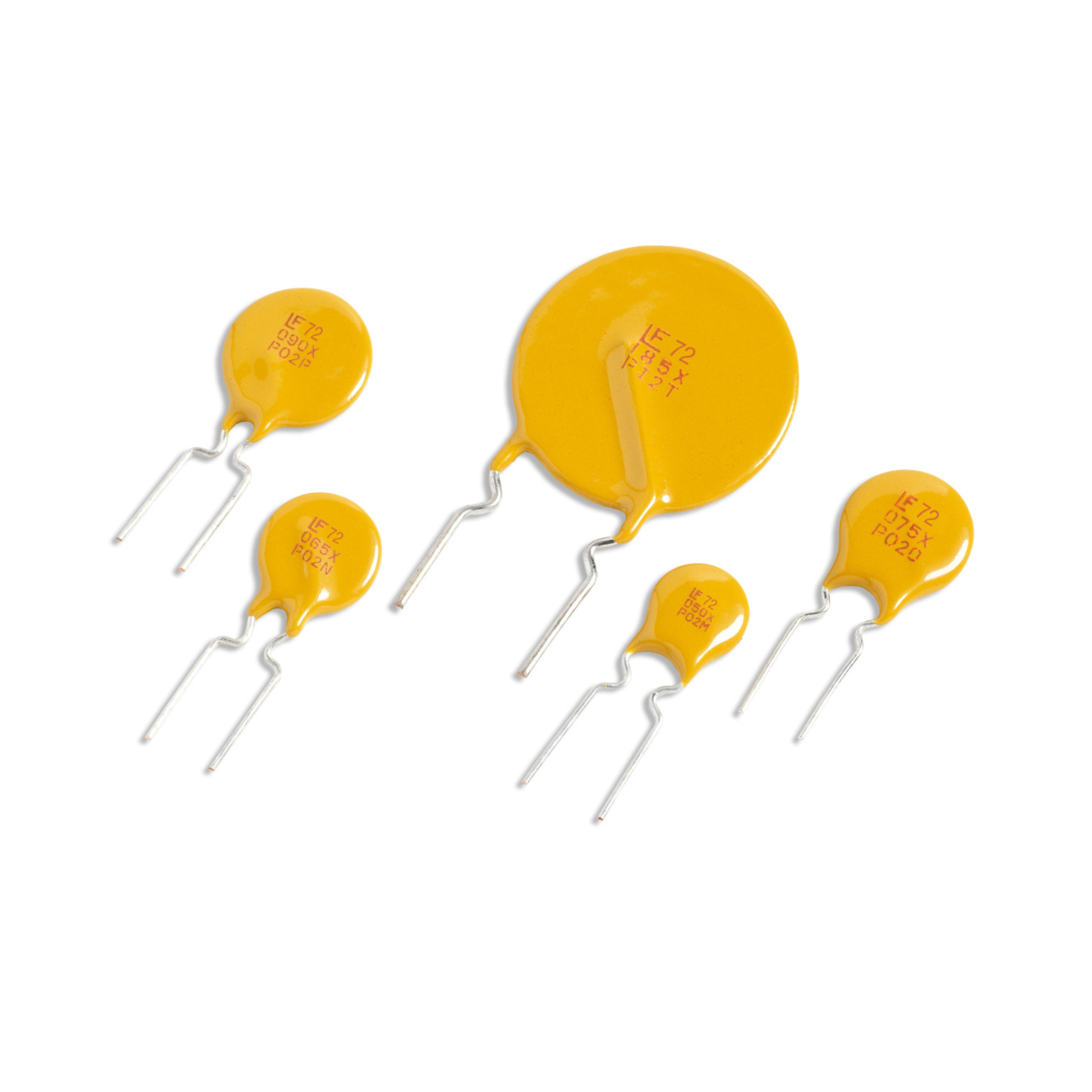

PTC 72V POLYFUSE AMMO RADIAL LEADS .650A
Description
AI
The 72R Series is designed to provide overcurrent protection to 72Vdc maximum voltage with a maximum 40A short circuit rating.
Beta
⌘K
PTC 72V POLYFUSE AMMO RADIAL LEADS .650A
PTC 72V POLYFUSE AMMO RADIAL LEADS .650A
| Part | Voltage - Max | Current - Max | Type | Height - Seated (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Size / Dimension Thickness | Size / Dimension Diameter | Mounting Type | Resistance - Initial (Ri) (Min) | Package / Case | Resistance - Post Trip (R1) (Max) | Current - Trip (It) | Lead Spacing | Time to Trip | Current - Hold (Ih) (Max) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 72 V | 40 A | Polymeric | 0.571 in | -40 °C | 85 °C | 0.122 in | 0.37 in | Through Hole | 310 mOhms | Disc Radial | 720 mOhms | 1.3 A | 0.201 in | 5.3 s | 650 mA | |
 LITTELFUSE | 72 V | 40 A | Polymeric | 0.571 in | -40 °C | 85 °C | 0.122 in | 0.37 in | Through Hole | 310 mOhms | Disc Radial | 720 mOhms | 1.3 A | 0.201 in | 5.3 s | 650 mA | cURus TUV |
