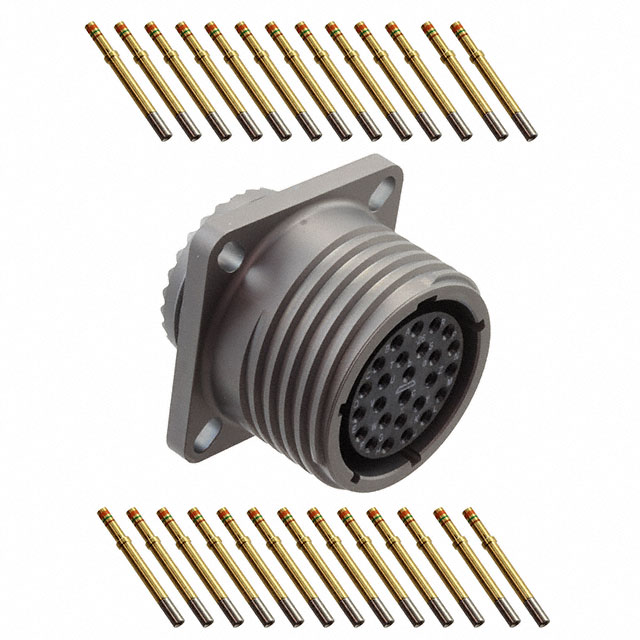

ALM00F17 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
CONN RCPT FMALE 26POS GOLD CRIMP
| Part | Ingress Protection Description | Ingress Protection IP Rating | Shell Finish | Shell Material | Orientation | Termination | Material Flammability Rating | Mounting Type | Fastening Type | Connector Type | Primary Material | Mounting Feature | Shielding | Number of Positions | Shell Size - Insert (Minimum) | Shell Size - Insert (Maximum) | Current Rating | Operating Temperature (Max) | Operating Temperature (Min) | Contact Finish - Mating | Insert Material | Applications | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Dust Tight Waterproof | IP67 | Electroless Nickel | Composite | N (Normal) | Crimp | UL94 V-0 | Panel Mount | Threaded | Female Sockets Receptacle | Composite | Flange | Shielded | 26 | 17 | 26 | 7.5 A | 125 °C | -65 °C | Gold | Fluorinated Silicon Rubber | Aviation | |
 Amphenol Aerospace Operations | Dust Tight Waterproof | IP67 | Gray Zinc Nickel | Composite | N (Normal) | Crimp | UL94 V-0 | Panel Mount | Threaded | Female Sockets Receptacle | Composite | Flange | Shielded | 26 | 17 | 26 | 7.5 A | 125 °C | -65 °C | Gold | Fluorinated Silicon Rubber | Aviation | Gray |
