Schaffner FN3268 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 16A CHASSIS MOUNT

Part	Voltage - Rated AC (Phase to Ground/Neutral)	Termination Style	Frequency - Operating (Max)	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Configuration	Mounting Type	Filter Subtype	Filter Type	Voltage - Rated AC (Phase to Phase)	Current	Applications
TE Connectivity AMP Connectors FN3268-16-44	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	16 A	General Purpose
TE Connectivity AMP Connectors FN3268-75-34	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	75 A	General Purpose
TE Connectivity AMP Connectors FN3268-7-44	300 V	Terminal Block	60 Hz	CE CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	7 A	General Purpose
TE Connectivity AMP Connectors FN3268-75-34	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	75 A	General Purpose
TE Connectivity AMP Connectors FN3268-16-44	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	16 A	General Purpose
TE Connectivity AMP Connectors FN3268-42-33	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	42 A	General Purpose

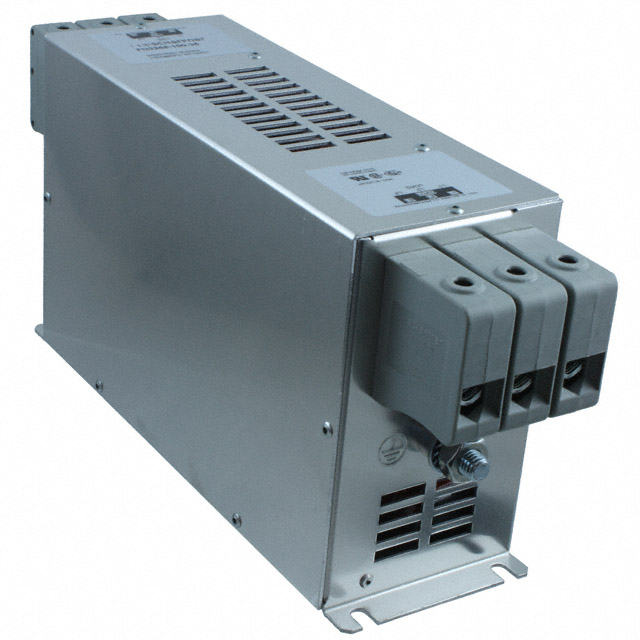

TE Connectivity AMP Connectors FN3268-100-35	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	100 A	General Purpose
TE Connectivity AMP Connectors FN3268-130-35	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	130 A	General Purpose
TE Connectivity AMP Connectors FN3268-55-34	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	55 A	General Purpose
TE Connectivity AMP Connectors FN3268-180-40	300 V	Terminal Block	60 Hz	CSA ENEC UR	-25 °C	100 °C	Single Stage	Chassis Mount	Delta	Three Phase	520 V	180 A	General Purpose
