EU Series

Catalog

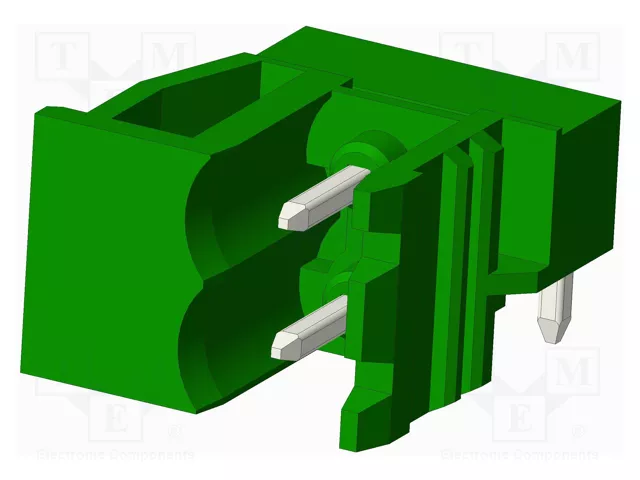

TERM BLOCK HDR 2POS 90DEG 5MM

Part	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Positions Per Level	Number of Levels	Pitch	Contact Mating Finish	Header Orientation Angle	Header Orientation	Termination Style	Type	Number of Positions	Current - UL	Color	Mounting Type	Contact Material	Contact Tail Length	Housing Material	Material Flammability Rating
McGill Microwave Systems EU0270500000G	300 V	-40 °C	115 °C	2	1	0.197 in	Tin	90 °	Right Angle	Solder	Header Male Pins Shrouded (2 Side)	2	20 A	Green	Through Hole	Copper	0.138 in	Thermoplastic	UL94 V-0
McGill Microwave Systems EU0410810000G	300 V	-40 °C	115 °C	4	1	0.138 in	Tin	90 °	Right Angle	Solder	Header Male Pins Shrouded (2 Side)	4	10 A	Green	Through Hole	Copper	0.142 in	Thermoplastic	UL94 V-0
McGill Microwave Systems EU0370500000G	300 V	-40 °C	115 °C	3	1	0.197 in	Tin	90 °	Right Angle	Solder	Header Male Pins Shrouded (2 Side)	3	20 A	Green	Through Hole	Copper	0.138 in	Thermoplastic	UL94 V-0
McGill Microwave Systems EU0310800000G	300 V	-40 °C	115 °C	3	1	0.138 in	Tin	90 °	Right Angle	Solder	Header Male Pins Shrouded (2 Side)	3	10 A	Green	Through Hole	Copper	0.142 in	Thermoplastic	UL94 V-0
McGill Microwave Systems EU0470810000G				4	1			90 °	Right Angle	Solder	Header Male Pins Shrouded (2 Side)	4			Through Hole
McGill Microwave Systems EU0410800000G	300 V	-40 °C	115 °C	4	1	0.138 in	Tin	90 °	Right Angle	Solder	Header Male Pins Shrouded (2 Side)	4	10 A	Green	Through Hole	Copper	0.142 in	Thermoplastic	UL94 V-0
McGill Microwave Systems EU0270510000G	300 V	-40 °C	115 °C	2	1	0.197 in	Tin	90 °	Right Angle	Solder	Header Male Pins Shrouded (2 Side)	2	20 A	Green	Through Hole	Copper	0.138 in	Thermoplastic	UL94 V-0
