M10.5 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

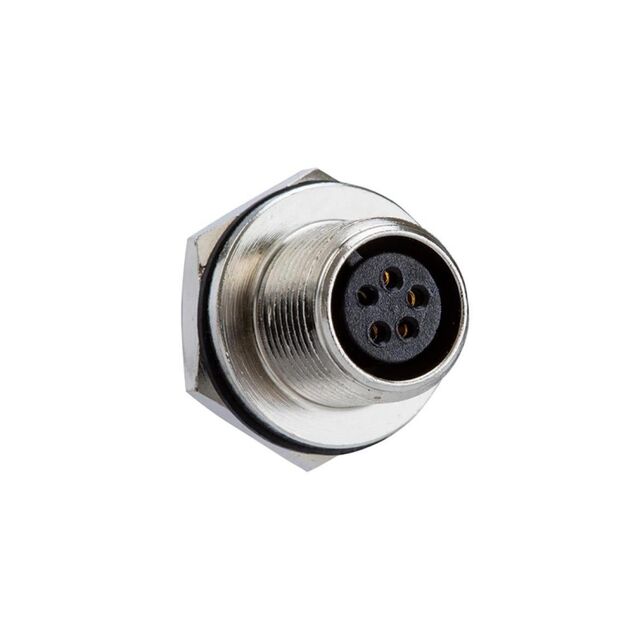

CIRCULAR METRIC CONNECTORS M10.5 CIRCULAR METRIC CONNECTOR, METAL, 2A, 05 PINS, MALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, RECEPTACLE, REAR FASTENED, IP67 UNMATED
| Part | Shell Finish | Shielding | Primary Material | Current Rating | Color | Contact Material | Mounting Type | Shell Material | Ingress Protection Description | Ingress Protection IP Rating | Shell Size - Insert | Orientation | Insert Material | Termination | Connector Type | Fastening Type | Number of Positions | Mounting Feature | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Nickel | Shielded | Metal | 2 A | Silver | Copper Alloy | Panel Mount | Copper Alloy | Dust Tight Waterproof | IP67 | M10-5 | Keyed | Glass Filled Nylon PA Polyamide | Solder Cup | Female Sockets Receptacle | Threaded | 5 | Bulkhead Rear Side Nut | -40 °C | 105 °C | 30 V | Gold |
