Q-300230 Series

Catalog

CBL ASSY SMA-NTYPE JCK-JCK 9.8'

Part	1st Contact Gender	1st Connector Mounting Type	Cable Type Size	Cable Type	1st Connector Mounting Feature	2nd Connector Mounting Feature	Frequency - Max	Features	2nd Connector	2nd Connector Mounting Type	Style	Length	Cable Impedance	Overall Impedance	1st Connector	Connector Impedance	Color	2nd Contact Gender	Length (ft)

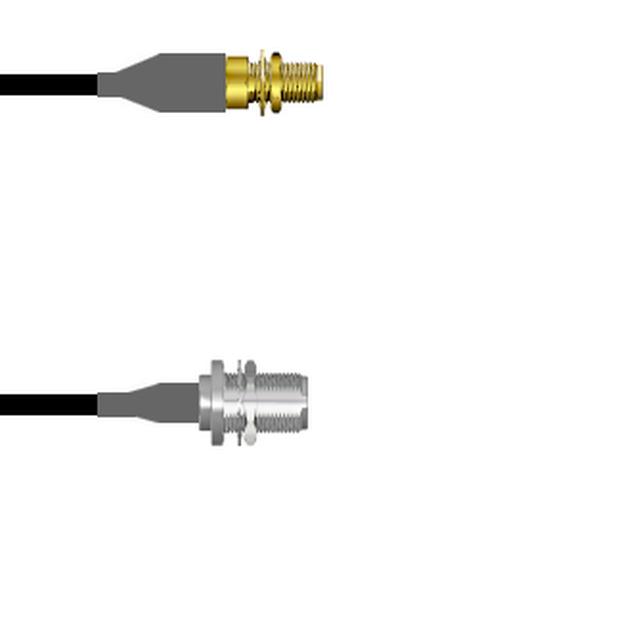

McGill Microwave Systems Q-30023000D003M	Female	Panel Mount	195	LMR	Bulkhead Front Side Nut	Bulkhead - Front Side Nut	6000 MHz	Shielded	N-Type Jack	Panel Mount	N-Type SMA	118.1 in	50 Ohms	50 Ohms	SMA Jack	50 Ohms	Black	Female
McGill Microwave Systems Q-30023000D002M	Female	Panel Mount	195	LMR	Bulkhead Front Side Nut	Bulkhead - Front Side Nut	6000 MHz	Shielded	N-Type Jack	Panel Mount	N-Type SMA		50 Ohms	50 Ohms	SMA Jack	50 Ohms	Black	Female	6.6 ft
McGill Microwave Systems Q-30023000D1.5M	Female	Panel Mount	195	LMR	Bulkhead Front Side Nut	Bulkhead - Front Side Nut	6000 MHz	Shielded	N-Type Jack	Panel Mount	N-Type SMA	59.1 in	50 Ohms	50 Ohms	SMA Jack	50 Ohms	Black	Female	4.9 ft
