SISS40 Series
Manufacturer: Vishay Dale
Beta
⌘K

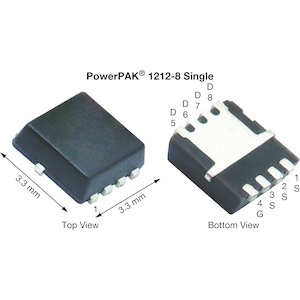

TRANS MOSFET N-CH 100V 36.5A 8-PIN POWERPAK EP T/R
| Part | Drain to Source Voltage (Vdss) | FET Type | Current - Continuous Drain (Id) (Tc) | Power Dissipation (Max) | Mounting Type | Technology | Vgs(th) (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Input Capacitance (Ciss) (Max) | Package / Case | Vgs (Max) | Drive Voltage (Max Rds On) | Drive Voltage (Min Rds On) | Package Name | Rds On (Max) | Gate Charge (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 100 V | N-Channel | 36.5 A | 3.7 W 52 W | Surface Mount | MOSFET (Metal Oxide) | 3.5 V | -55 °C | 150 °C | 845 pF | PowerPAK® 1212-8S | 20 V | 6 V | 10 V | PowerPAK® 1212-8S | 21 mOhm | 24 nC 24 nC |
