IXFV52 Series
Manufacturer: LITTELFUSE
Beta
⌘K

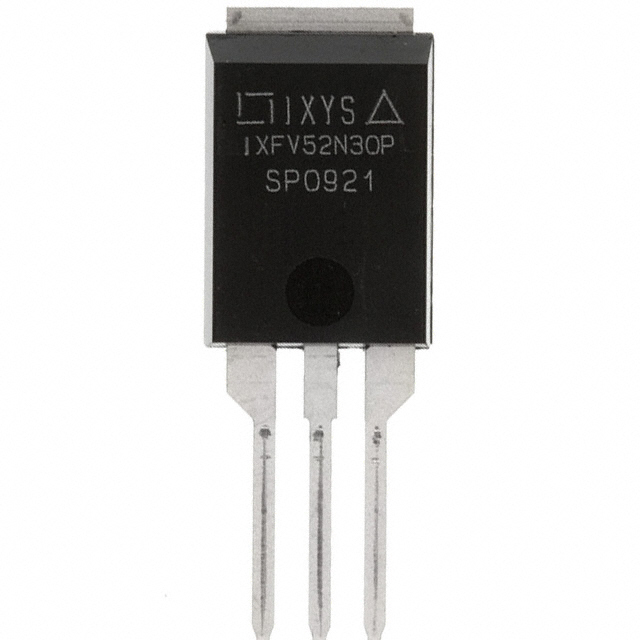

MOSFET N-CH 300V 52A PLUS220
| Part | Current - Continuous Drain (Id) (Tc) | Vgs(th) (Max) | Technology | Input Capacitance (Ciss) (Max) | Rds On (Max) | Power Dissipation (Max) | Gate Charge (Max) | Mounting Type | Vgs (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Drain to Source Voltage (Vdss) | Package Name | Drive Voltage (Max Rds On, Min Rds On) | FET Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 52 A | 5 V | MOSFET (Metal Oxide) | 3490 pF | 66 mOhm | 400 W | 110 nC | Through Hole | 20 V | -55 °C | 150 °C | 300 V | PLUS220 | 10 V | N-Channel | Short Tab TO-220-3 |
