T8100 Series

Catalog

AIR QUALITY SENSORS WALLMOUNT CO2 SENSOR ABC LOGIC CO2/PA RH

Part	Output Voltage Range 2 (Min)	Output Current Range 1 (Min)	Output Current Range 1 (Max)	Output Voltage Range 1 (Min)	Output Voltage Range 1 (Max)	Output Voltage Range 2 (Max)	Type	Accuracy	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Operating Temperature (Max)	Output Voltage (Max)	Output Voltage (Min)
McGill Microwave Systems T8100-H	0 V	4 mA	20 mA	0 V	5 V	10 V	Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C
McGill Microwave Systems T8100-H	0 V	4 mA	20 mA	0 V	5 V	10 V	Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C
McGill Microwave Systems T8100-NS	0 V	4 mA	20 mA	0 V	5 V	10 V	Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C
McGill Microwave Systems T8100-B	0 V	4 mA	20 mA	0 V	5 V	10 V	Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C

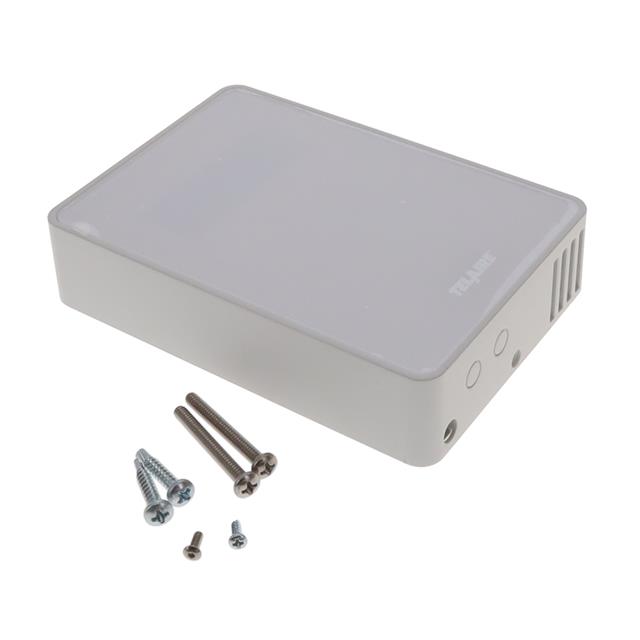

McGill Microwave Systems T8100-5V							Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C	5 V	0 V
McGill Microwave Systems T8100-5V							Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C	5 V	0 V
McGill Microwave Systems T8100-NS	0 V	4 mA	20 mA	0 V	5 V	10 V	Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C
McGill Microwave Systems T8100-GN	0 V	4 mA	20 mA	0 V	5 V	10 V	Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C
McGill Microwave Systems T8100-GN	0 V	4 mA	20 mA	0 V	5 V	10 V	Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C
McGill Microwave Systems T8100-B	0 V	4 mA	20 mA	0 V	5 V	10 V	Carbon Dioxide (CO2) Humidity Temperature	2 %	18 VDC	18 VAC	30 VAC	42 VDC	50 °C
