AD9434 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

BOARD EVAL AD9434 500MSPS ADC

Part	Supplied Contents	Number of A/D Converters	Power (Typ)	Contents	Data Interface	Sampling Rate (Per Second)	Utilized IC / Part	Number of Bits	Input Voltage (Value)	Architecture	Package / Case	Input Type	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Package Width	Package Name	Package Length	Mounting Type	Reference Type	Ratio - ADC	Ratio - S/H	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Configuration	Number of Inputs	Features
Analog Devices Inc./Maxim Integrated AD9434-500EBZ	Board(s)	1 count	690 mW	Board	SPI	500 MHz	AD9434	12 bits	1.5 Vpp

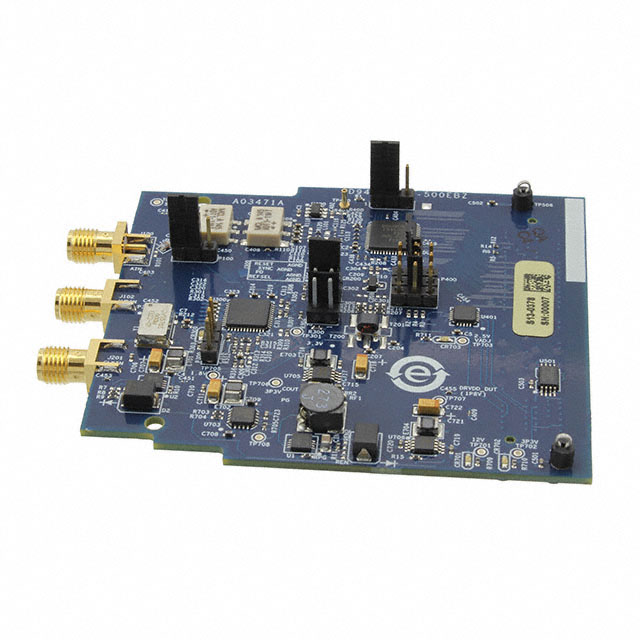

Analog Devices Inc./Maxim Integrated AD9434-FMC-500EBZ	Board(s)	1 count	690 mW	Board	SPI	500 MHz	AD9434	12 bits	1.5 Vpp
Analog Devices Inc./Maxim Integrated AD9434BCPZRL7-370		1 count			LVDS - Parallel	370 MHz		12 bits		Pipelined	56-VFQFN Exposed Pad CSP	Differential	1.9 V	1.75 V	8 mm	56-LFCSP-VQ	8 mm	Surface Mount	External Internal	1	1	-40 °C	85 °C	1.75 V	1.9 V	S/H-ADC	1
Analog Devices Inc./Maxim Integrated AD9434BCPZRL7-500		1 count			LVDS - Parallel	500 MHz		12 bits		Pipelined	56-VFQFN Exposed Pad CSP	Differential	1.9 V	1.75 V	8 mm	56-LFCSP 56-LFCSP-VQ	8 mm	Surface Mount	External Internal	1	0 1	-40 °C	85 °C	1.75 V	1.9 V	ADC S/H-ADC	1	Internal Oscillator
Analog Devices Inc./Maxim Integrated AD9434BCPZ-500		1 count			LVDS - Parallel	500 MHz		12 bits		Pipelined	56-VFQFN Exposed Pad CSP	Differential	1.9 V	1.75 V	8 mm	56-LFCSP-VQ	8 mm	Surface Mount	External Internal	1	1	-40 °C	85 °C	1.75 V	1.9 V	S/H-ADC	1
Analog Devices Inc./Maxim Integrated AD9434BCPZ-370		1 count			LVDS - Parallel	370 MHz		12 bits		Pipelined	56-VFQFN Exposed Pad CSP	Differential	1.9 V	1.75 V	8 mm	56-LFCSP-VQ	8 mm	Surface Mount	External Internal	1	1	-40 °C	85 °C	1.75 V	1.9 V	S/H-ADC	1
