1761609 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC LOW PRO HDR 40P RA SHT LAT

Part	Shrouding	Material Flammability Rating	Style	Voltage Rating	Fastening Type	Row Spacing - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Contact Length - Post	Current Rating (Per Contact)	Contact Length - Mating	Insulation Color	Connector Type	Contact Finish - Mating	Insulation Height	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Post	Number of Positions Loaded	Features	Insulation Material	Contact Type	Contact Material	Number of Rows	Mounting Type	Contact Shape	Number of Positions	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 3-1761609-3	Shrouded - 4 Wall	UL94 V-0	Board Cable/Wire	250 V	Latch Lock/Eject Hooks Short	0.1 in	30 µin	0.1 in	0.102 in	1 A	0.237 in	Blue	Header	Gold Gold-Palladium	0.362 in	Solder	105 °C	-65 °C	Tin	All	Keying Slot	Polybutylene Terephthalate (PBT)	Male Pin	Phosphor Bronze	2	Right Angle Through Hole	Square	40	100 Ąin
TE Connectivity AMP Connectors 1761609-7	Shrouded - 4 Wall	UL94 V-0	Board Cable/Wire	250 V	Latch Lock/Eject Hooks Short	0.1 in	30 µin	0.1 in	0.102 in	1 A	0.237 in	Black	Header	Gold Gold-Palladium	0.362 in	Solder	105 °C	-65 °C	Tin	All	Keying Slot	Polybutylene Terephthalate (PBT)	Male Pin	Phosphor Bronze	2	Right Angle Through Hole	Square	20	100 Ąin
TE Connectivity AMP Connectors 2-1761609-7	Shrouded - 4 Wall	UL94 V-0	Board Cable/Wire	250 V	Latch Lock/Eject Hooks Short	0.1 in	30 µin	0.1 in	0.102 in	1 A	0.237 in	Blue	Header	Gold Gold-Palladium	0.362 in	Solder	105 °C	-65 °C	Tin	All	Keying Slot	Polybutylene Terephthalate (PBT)	Male Pin	Phosphor Bronze	2	Right Angle Through Hole	Square	20	100 Ąin
TE Connectivity AMP Connectors 1-1761609-1	Shrouded - 4 Wall	UL94 V-0	Board Cable/Wire	250 V	Latch Lock/Eject Hooks Short	0.1 in	30 µin	0.1 in	0.102 in	1 A	0.237 in	Black	Header	Gold Gold-Palladium	0.362 in	Solder	105 °C	-65 °C	Tin	All	Keying Slot	Polybutylene Terephthalate (PBT)	Male Pin	Phosphor Bronze	2	Right Angle Through Hole	Square	34	100 Ąin
TE Connectivity AMP Connectors 1761609-6	Shrouded - 4 Wall	UL94 V-0	Board Cable/Wire	250 V	Latch Lock/Eject Hooks Short	0.1 in	30 µin	0.1 in	0.102 in	1 A	0.237 in	Black	Header	Gold Gold-Palladium	0.362 in	Solder	105 °C	-65 °C	Tin	All	Keying Slot	Polybutylene Terephthalate (PBT)	Male Pin	Phosphor Bronze	2	Right Angle Through Hole	Square	16	100 Ąin
TE Connectivity AMP Connectors 1-1761609-5	Shrouded - 4 Wall	UL94 V-0	Board Cable/Wire	250 V	Latch Lock/Eject Hooks Short	0.1 in	30 µin	0.1 in	0.102 in	1 A	0.237 in	Black	Header	Gold Gold-Palladium	0.362 in	Solder	105 °C	-65 °C	Tin	All	Keying Slot	Polybutylene Terephthalate (PBT)	Male Pin	Phosphor Bronze	2	Right Angle Through Hole	Square	50	100 Ąin

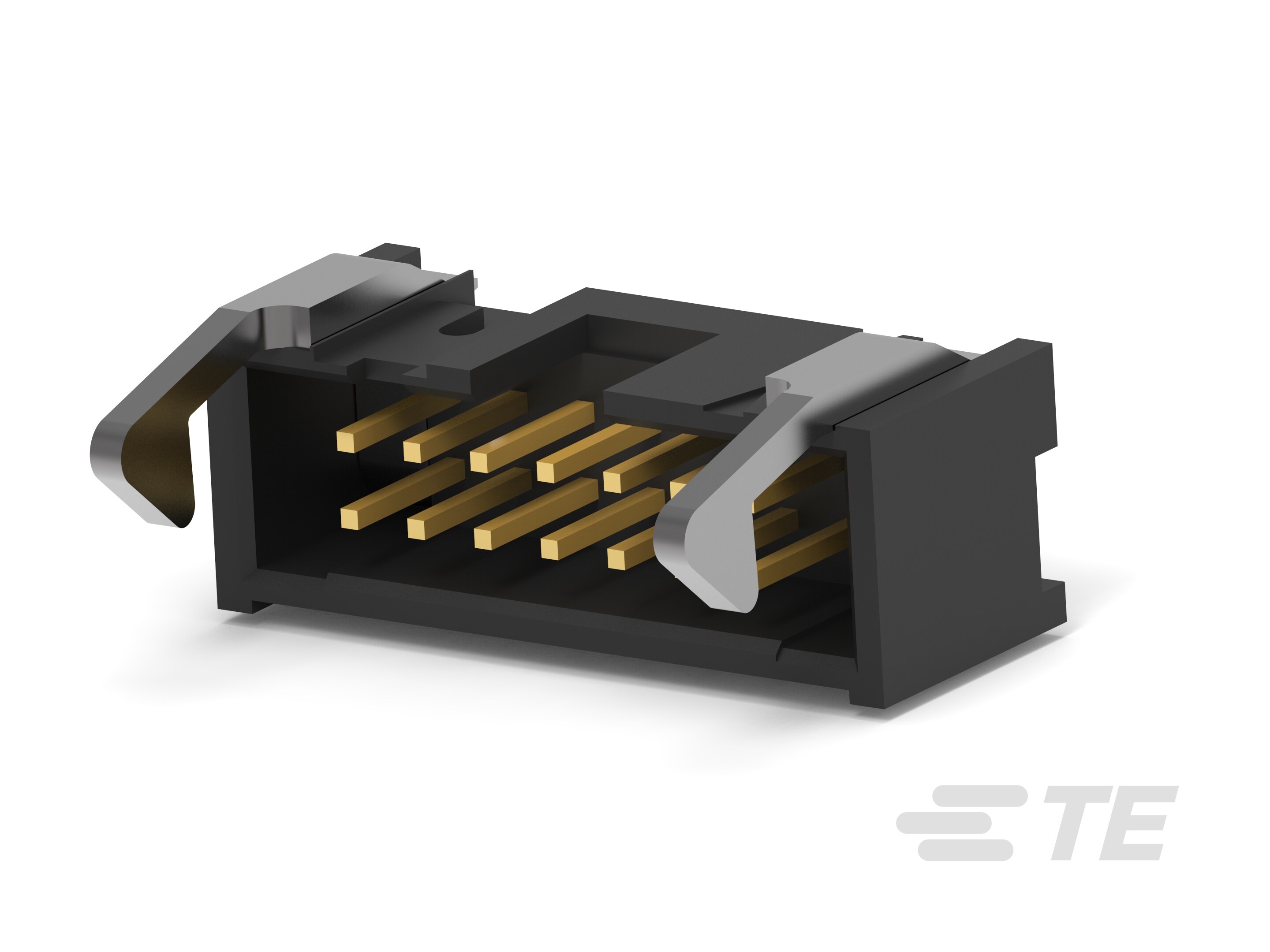

TE Connectivity AMP Connectors 1761609-5	Shrouded - 4 Wall	UL94 V-0	Board Cable/Wire	250 V	Latch Lock/Eject Hooks Short	0.1 in	30 µin	0.1 in	0.102 in	1 A	0.237 in	Black	Header	Gold Gold-Palladium	0.362 in	Solder	105 °C	-65 °C	Tin	All	Keying Slot	Polybutylene Terephthalate (PBT)	Male Pin	Phosphor Bronze	2	Right Angle Through Hole	Square	14	100 Ąin
TE Connectivity AMP Connectors 3-1761609-1	Shrouded - 4 Wall	UL94 V-0	Board Cable/Wire	250 V	Latch Lock/Eject Hooks Short	0.1 in	30 µin	0.1 in	0.102 in	1 A	0.237 in	Blue	Header	Gold Gold-Palladium	0.362 in	Solder	105 °C	-65 °C	Tin	All	Keying Slot	Polybutylene Terephthalate (PBT)	Male Pin	Phosphor Bronze	2	Right Angle Through Hole	Square	34	100 Ąin
