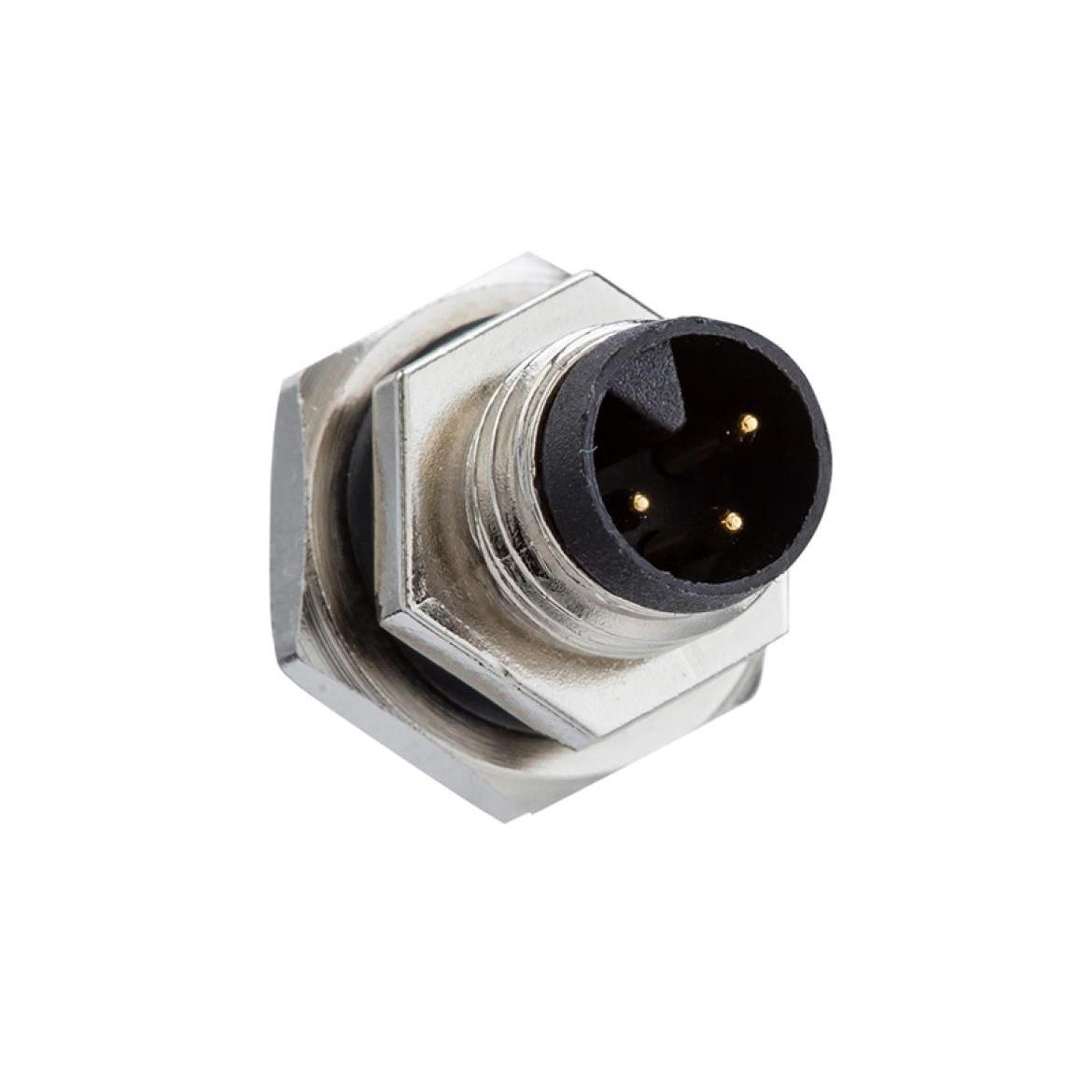

8A-02PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 3A, 02 PINS, MALE CONNECTOR, MALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, RECEPTA
| Part | Material Flammability Rating | Contact Finish - Mating | Fastening Type | Ingress Protection Description | Ingress Protection IP Rating | Mounting Type | Shell Material | Contact Material | Mounting Feature | Voltage Rating | Primary Material | Color | Insert Material | Connector Type | Current Rating | Orientation | Shell Size - Insert | Termination | Shielding | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | UL94 V-0 | Gold | Threaded | Dust Tight Waterproof | IP67 | Panel Mount | Zinc Alloy | Copper Alloy | Bulkhead Rear Side Nut | 60 V | Metal | Silver | Glass Filled Nylon PA Polyamide | Male Pins Receptacle | 3 A | Keyed | M8-2 | Solder Cup | Shielded | 2 | -40 °C | 105 °C | Nickel |
 McGill Microwave Systems | UL94 V-0 | Gold | Threaded | Dust Tight Waterproof | IP67 | Panel Mount | Zinc Alloy | Copper Alloy | Bulkhead Front Side Nut | 60 V | Metal | Silver | Glass Filled Nylon PA Polyamide | Male Pins Receptacle | 3 A | Keyed | M8-2 | Solder Cup | Shielded | 2 | -40 °C | 105 °C | Nickel |
