644463 Series

Catalog

CONN RCPT 10POS IDC 22AWG TIN

Part	Connector Type	Features	Contact Finish Thickness	Number of Rows	Wire Type	Contact Type	Contact Finish	Pitch	Number of Positions	Cable Termination	Wire Gauge	Color	Mounting Type

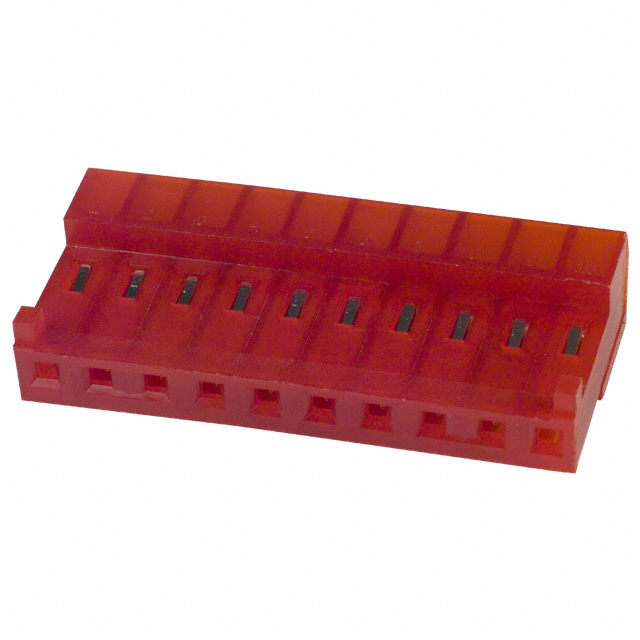

TE Connectivity AMP Connectors 4-644463-0	Receptacle	Closed End Polarizing Key	80 µin	1	Discrete Ribbon Cable	Female Socket	Tin	0.156 in	10	IDC	22 AWG	Red	Free Hanging (In-Line)

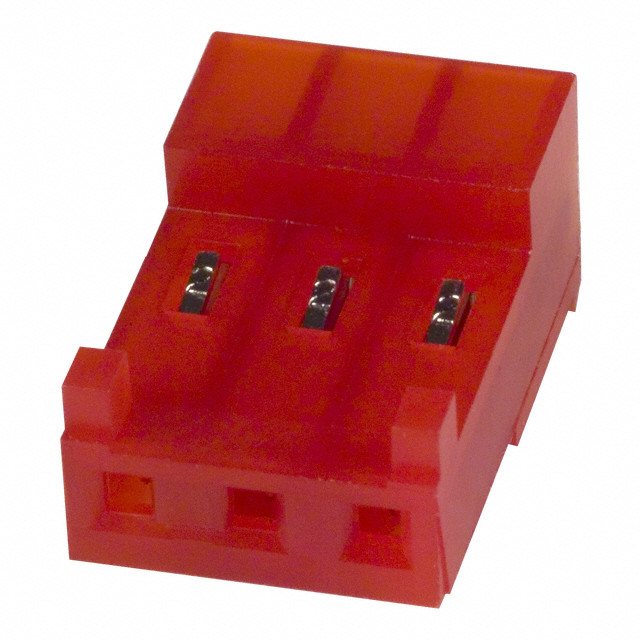

TE Connectivity AMP Connectors 3-644463-3	Receptacle	Closed End Polarizing Key	80 µin	1	Discrete Ribbon Cable	Female Socket	Tin	0.156 in	3	IDC	22 AWG	Red	Free Hanging (In-Line)

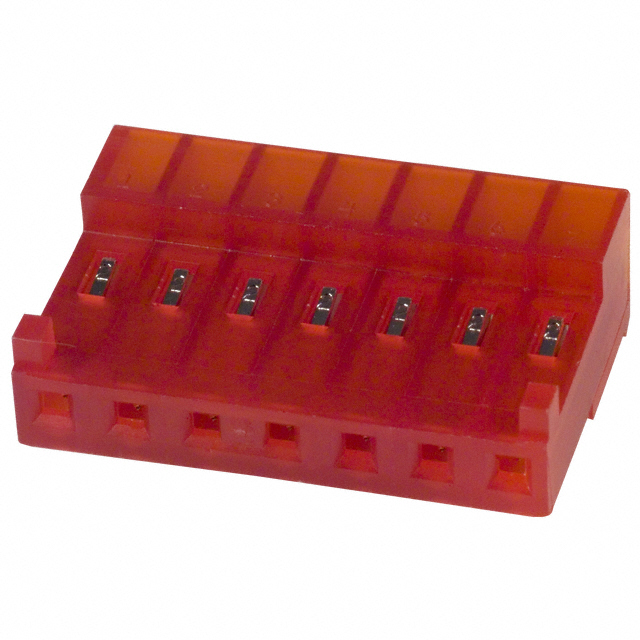

TE Connectivity AMP Connectors 644463-7	Receptacle	Closed End Polarizing Key	80 µin	1	Discrete Ribbon Cable	Female Socket	Tin-Lead	0.156 in	7	IDC	22 AWG	Red	Free Hanging (In-Line)

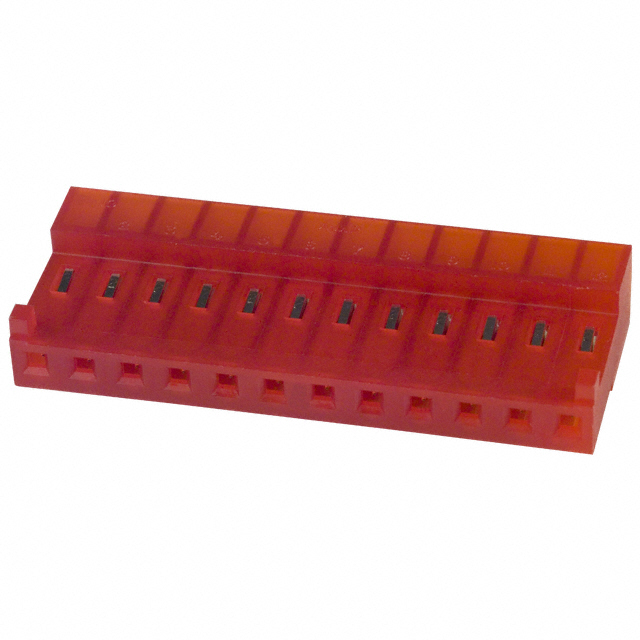

TE Connectivity AMP Connectors 1-644463-2	Receptacle	Closed End Polarizing Key	80 µin	1	Discrete Ribbon Cable	Female Socket	Tin-Lead	0.156 in	12	IDC	22 AWG	Red	Free Hanging (In-Line)

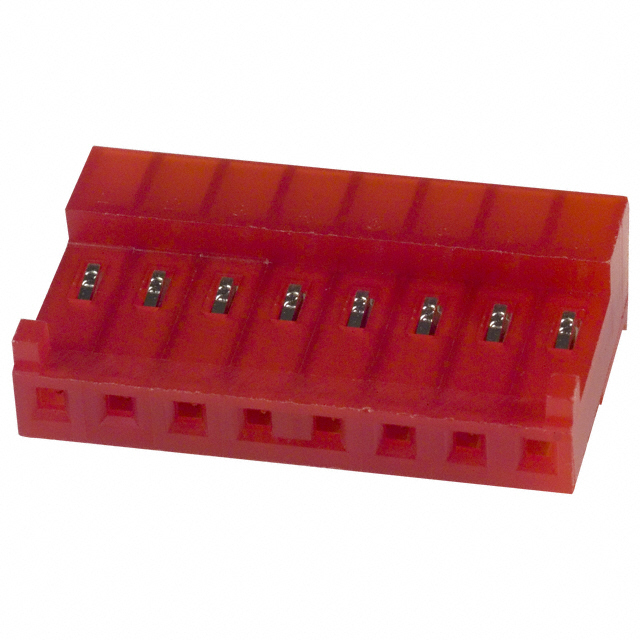

TE Connectivity AMP Connectors 644463-8	Receptacle	Closed End Polarizing Key	80 µin	1	Discrete Ribbon Cable	Female Socket	Tin-Lead	0.156 in	8	IDC	22 AWG	Red	Free Hanging (In-Line)
TE Connectivity AMP Connectors 3-644463-7	Receptacle	Closed End Polarizing Key	80 µin	1	Discrete Ribbon Cable	Female Socket	Tin	0.156 in	7	IDC	22 AWG	Red	Free Hanging (In-Line)

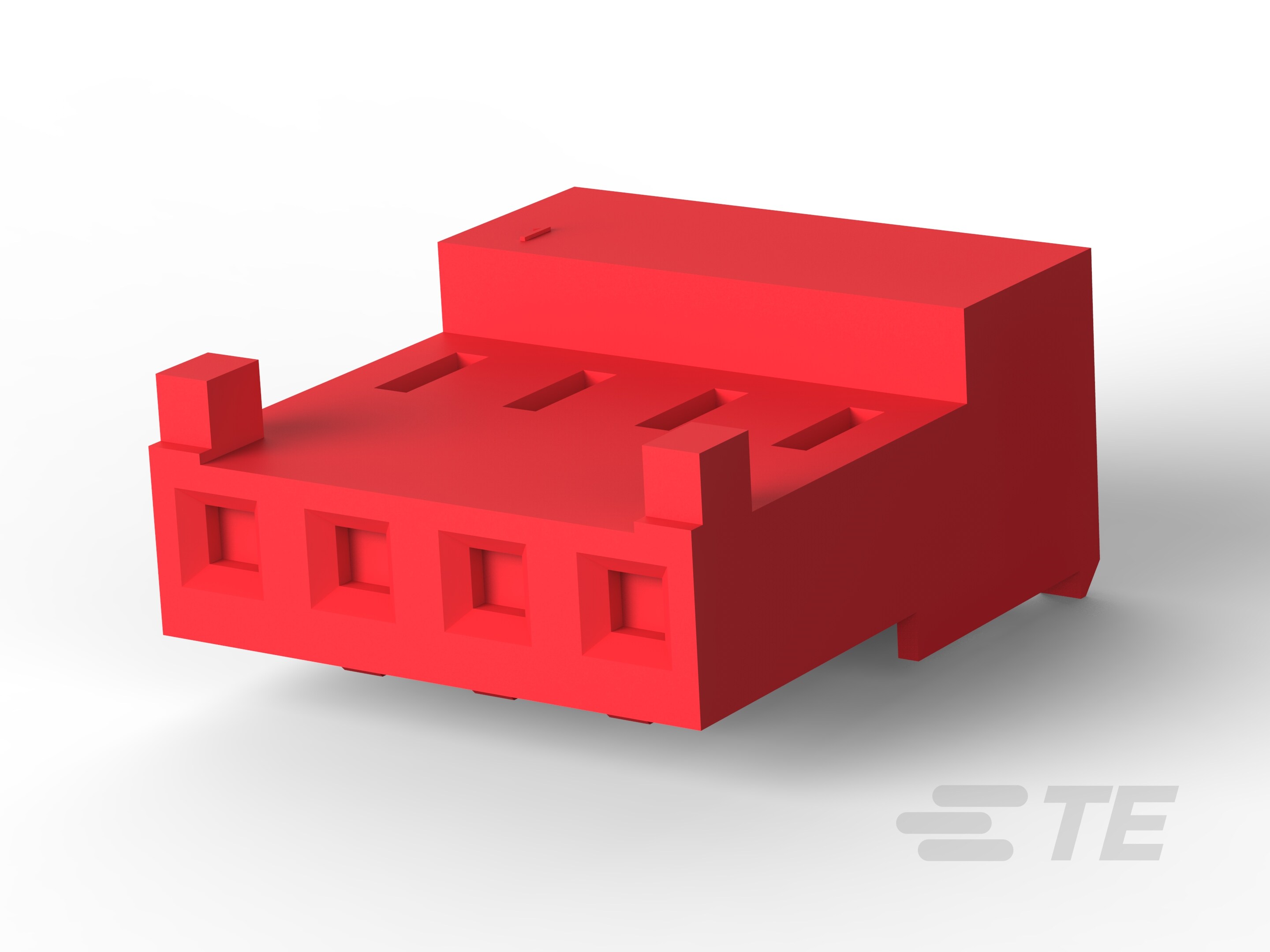

TE Connectivity AMP Connectors 3-644463-4	Receptacle	Closed End Polarizing Key	80 µin	1	Discrete Ribbon Cable	Female Socket	Tin	0.156 in	4	IDC	22 AWG	Red	Free Hanging (In-Line)
