V721 Series

Catalog

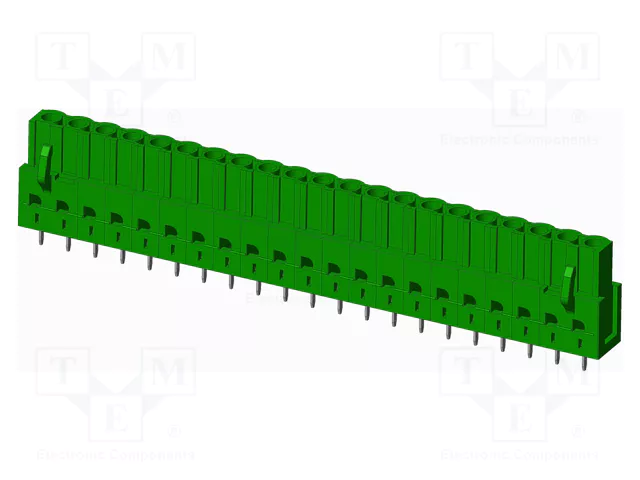

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 10A; 300V

Part	Mounting Type	Number of Positions	Positions Per Level	Color	Number of Levels	Termination Style	Header Orientation Angle	Header Orientation	Contact Mating Finish	Current - UL	Voltage - UL	Features	Type	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material	Contact Tail Length	Contact Material	Material Flammability Rating	Insulation Height
McGill Microwave Systems V72152510000G	Through Hole	21	21	Green	1	Solder	90 °	Right Angle	Tin	20 A	300 V	Mating Flange Retention Latches	Female Sockets Header	5.08 mm	-40 °C	115 °C	Thermoplastic	0.138 in	Copper	UL94 V-0
McGill Microwave Systems V72131500000G	Through Hole	21	21	Green	1	Solder		Vertical	Tin	8 A	300 V		Female Sockets Header	0.15 in	-40 °C	115 °C	Thermoplastic	0.134 in	Phosphor Bronze	UL94 V-0	0.571 in
McGill Microwave Systems V72172500000G	Through Hole	21	21	Green	1	Solder		Vertical	Tin	10 A	300 V	Mating Flange Retention Latches	Female Sockets Header	0.197 in	-40 °C	115 °C	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0	0.748 in
McGill Microwave Systems V72132500000G	Through Hole	21	21	Green	1	Solder		Vertical	Tin	8 A	300 V	Mating Flange	Female Sockets Header	0.15 in	-40 °C	115 °C	Thermoplastic	0.134 in	Phosphor Bronze	UL94 V-0	0.571 in
McGill Microwave Systems V72171500000G	Through Hole	21	21	Green	1	Solder		Vertical	Tin	10 A	300 V	Retention Latches	Female Sockets Header	0.197 in	-40 °C	115 °C	Thermoplastic	0.138 in	Phosphor Bronze	UL94 V-0	0.748 in
McGill Microwave Systems V72131510000G	Through Hole	21	21	Green	1	Solder	90 °	Right Angle	Tin	8 A	300 V		Female Sockets Header	0.15 in	-40 °C	115 °C	Thermoplastic	0.134 in	Phosphor Bronze	UL94 V-0	0.26 in
McGill Microwave Systems V72151500000G	Through Hole	21	21	Green	1	Solder		Vertical	Tin	20 A	300 V	Retention Latches	Female Sockets Header	5.08 mm	-40 °C	115 °C	Thermoplastic	0.138 in	Copper	UL94 V-0	0.748 in
McGill Microwave Systems V72151510000G	Through Hole	21	21	Green	1	Solder	90 °	Right Angle	Tin	20 A	300 V	Retention Latches	Female Sockets Header	5.08 mm	-40 °C	115 °C	Thermoplastic	0.138 in	Copper	UL94 V-0
