Q-040480 Series

Catalog

COAX CBL BNC TO TNC 18"

Part	1st Connector Mounting Feature	1st Connector	2nd Connector Mounting Type	1st Contact Gender	Style	Features	Overall Impedance	1st Connector Mounting Type	2nd Contact Gender	Color	Cable Type	2nd Connector Mounting Feature	2nd Connector	Length	Frequency - Max	Length (ft)

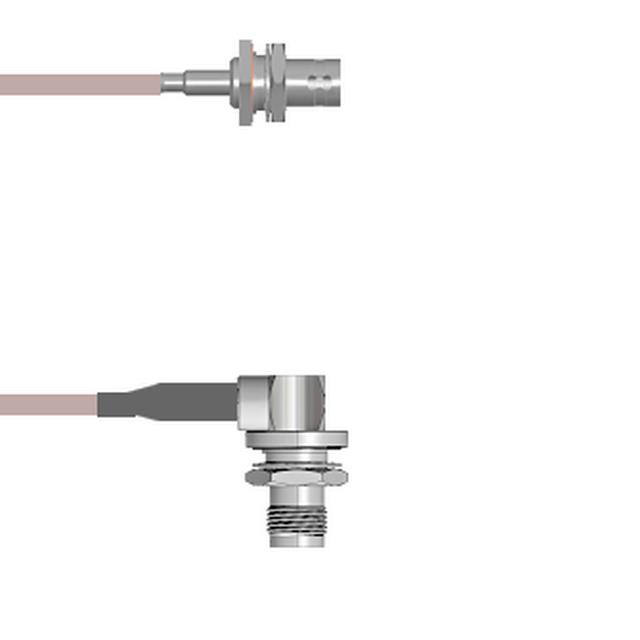

McGill Microwave Systems Q-040480005018i	Bulkhead Front Side Nut	BNC Jack	Panel Mount	Female	BNC TNC	Shielded	50 Ohms	Panel Mount	Female	Copper	316 RG	Bulkhead - Front Side Nut	Right Angle TNC Jack	18 in	4 GHz
McGill Microwave Systems Q-040480005003M	Bulkhead Front Side Nut	BNC Jack	Panel Mount	Female	BNC TNC	Shielded	50 Ohms	Panel Mount	Female	Copper	316 RG	Bulkhead - Front Side Nut	Right Angle TNC Jack	118.1 in	4 GHz

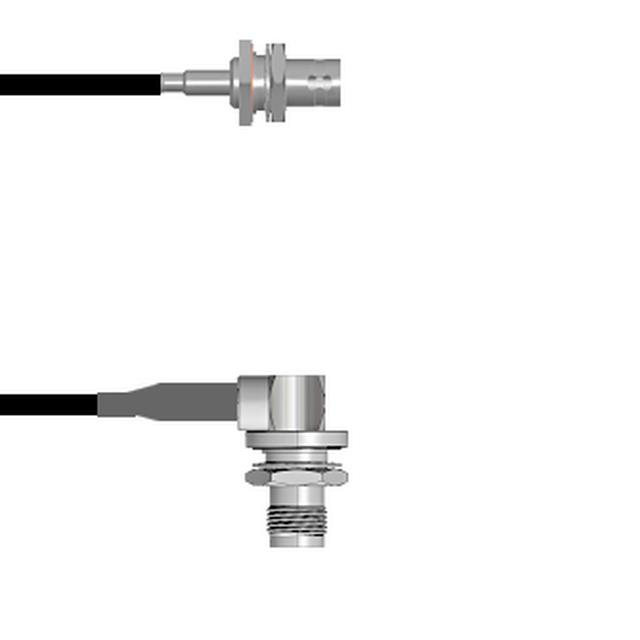

McGill Microwave Systems Q-040480003006i	Bulkhead Front Side Nut	BNC Jack	Panel Mount	Female	BNC TNC	Shielded	50 Ohms	Panel Mount	Female	Black	174 RG	Bulkhead - Front Side Nut	Right Angle TNC Jack	0.5 ft	4 GHz
McGill Microwave Systems Q-0404800051.5M	Bulkhead Front Side Nut	BNC Jack	Panel Mount	Female	BNC TNC	Shielded	50 Ohms	Panel Mount	Female	Copper	316 RG	Bulkhead - Front Side Nut	Right Angle TNC Jack	59.1 in	4 GHz	4.9 ft
McGill Microwave Systems Q-040480003108i	Bulkhead Front Side Nut	BNC Jack	Panel Mount	Female	BNC TNC	Shielded	50 Ohms	Panel Mount	Female	Black	174 RG	Bulkhead - Front Side Nut	Right Angle TNC Jack	9 ft	4 GHz
McGill Microwave Systems Q-040480003003i	Bulkhead Front Side Nut	BNC Jack	Panel Mount	Female	BNC TNC	Shielded	50 Ohms	Panel Mount	Female	Black	174 RG	Bulkhead - Front Side Nut	Right Angle TNC Jack	3 "	4 GHz
McGill Microwave Systems Q-040480003.25M	Bulkhead Front Side Nut	BNC Jack	Panel Mount	Female	BNC TNC	Shielded	50 Ohms	Panel Mount	Female	Black	174 RG	Bulkhead - Front Side Nut	Right Angle TNC Jack	9.843 in	4 GHz
McGill Microwave Systems Q-040480003036i	Bulkhead Front Side Nut	BNC Jack	Panel Mount	Female	BNC TNC	Shielded	50 Ohms	Panel Mount	Female	Black	174 RG	Bulkhead - Front Side Nut	Right Angle TNC Jack	36 in	4 GHz
