076450 Series

Manufacturer: Molex

Catalog

CONN HDR IMPACT 96POS EDGE MNT

Part	Number of Rows	Contact Finish Thickness	Number of Columns	Mounting Type	Color	Connector Style	Contact Finish	Connector Type	Number of Positions	Pitch	Number of Positions Loaded	Features	Termination	Differential Pairs (Typical)	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating

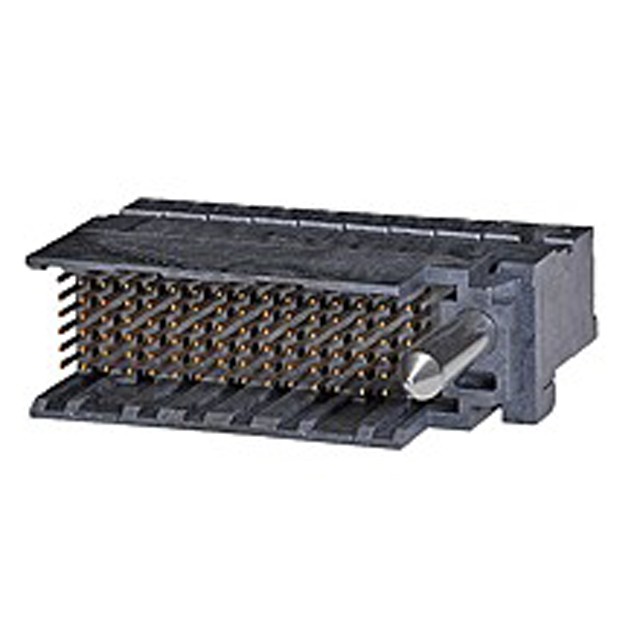

Molex 0764505607	6	30 µin	16	Board Edge Right Angle Through Hole	Black	Guide Right Impact	Gold	Header Male Pins	96	0.053 in	All	Board Guide	Press-Fit	32	30 V	-55 °C	85 °C	UL94 V-0
Molex 0764501104	6	30 µin	10	Board Edge Right Angle Through Hole	Black	Guide Right Impact	Gold	Header Male Pins	60	0.053 in	All		Press-Fit	20	30 V	-55 °C	85 °C	UL94 V-0

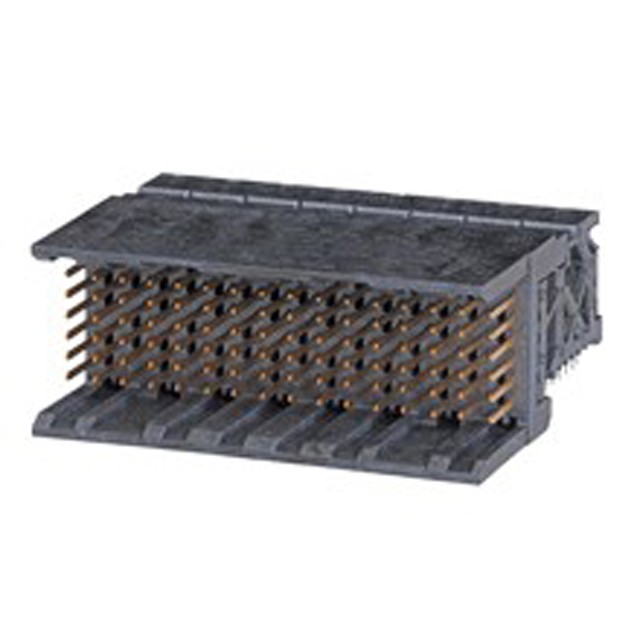

Molex 0764501607	6	30 µin	16	Board Edge Right Angle Through Hole	Black	Guide Right Impact	Gold	Header Male Pins	96	0.053 in	All		Press-Fit	32	30 V	-55 °C	85 °C	UL94 V-0
Molex 0764501107	6	30 µin	10	Board Edge Right Angle Through Hole	Black	Guide Right Impact	Gold	Header Male Pins	60	0.053 in	All		Press-Fit	20	30 V	-55 °C	85 °C	UL94 V-0

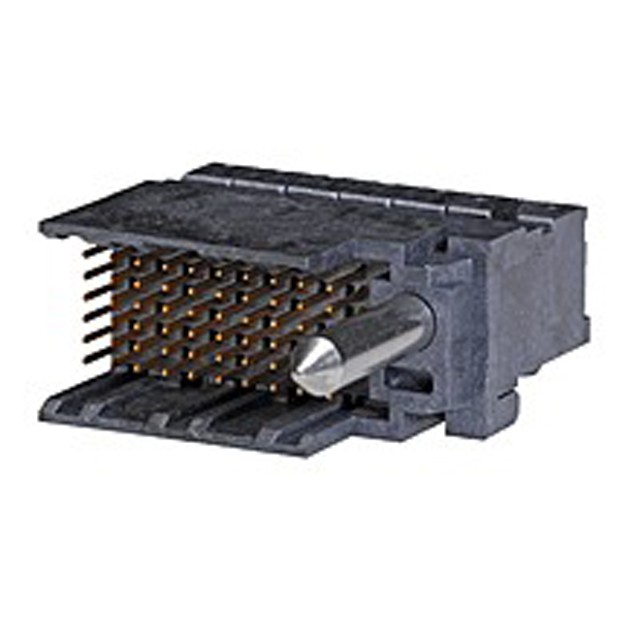

Molex 0764505108	6	30 µin	10	Board Edge Right Angle Through Hole	Black	Guide Right Impact	Gold	Header Male Pins	60	0.053 in	All	Board Guide	Press-Fit	20	30 V	-55 °C	85 °C	UL94 V-0

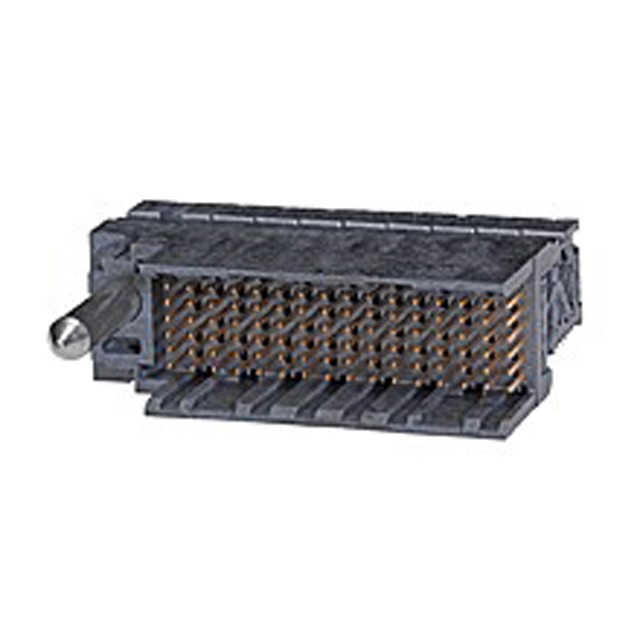

Molex 0764503608	6	30 µin	16	Board Edge Right Angle Through Hole	Black	Guide Left Impact	Gold	Header Male Pins	96	0.053 in	All	Board Guide	Press-Fit	32	30 V	-55 °C	85 °C	UL94 V-0
Molex 0764509607	6	30 µin	16	Board Edge Right Angle Through Hole	Black	Guide Right Impact	Gold	Header Male Pins	96	0.053 in	All	Board Guide	Press-Fit	32	30 V	-55 °C	85 °C	UL94 V-0
Molex 0764507607	6	30 µin	16	Board Edge Right Angle Through Hole	Black	Guide Left Impact	Gold	Header Male Pins	96	0.053 in	All	Board Guide	Press-Fit	32	30 V	-55 °C	85 °C	UL94 V-0
Molex 0764501637	6	30 µin	16	Board Edge Right Angle Through Hole	Black	Guide Right Impact	Gold	Header Male Pins	96	0.053 in	All		Press-Fit	32	30 V	-55 °C	85 °C	UL94 V-0
Molex 0764501127	6	30 µin	10	Board Edge Right Angle Through Hole	Black	Guide Right Impact	Gold	Header Male Pins	60	0.053 in	All		Press-Fit	20	30 V	-55 °C	85 °C	UL94 V-0
