7015 Series

Catalog

RF / COAXIAL CABLE ASSEMBLY, 2.92MM PLUG TO 2.92MM PLUG, T-FLEX 405, 50 OHM, 36 ", 914.4 MM

Part	Cable Type Size	Cable Type	Color	1st Connector Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Length	Style	Frequency - Max	2nd Contact Gender	Overall Impedance	Features	1st Connector Size	1st Connector	2nd Connector Diameter	2nd Connector	1st Contact Gender	2nd Connector Mounting Type	Cable Diameter	Cable Outer Diameter

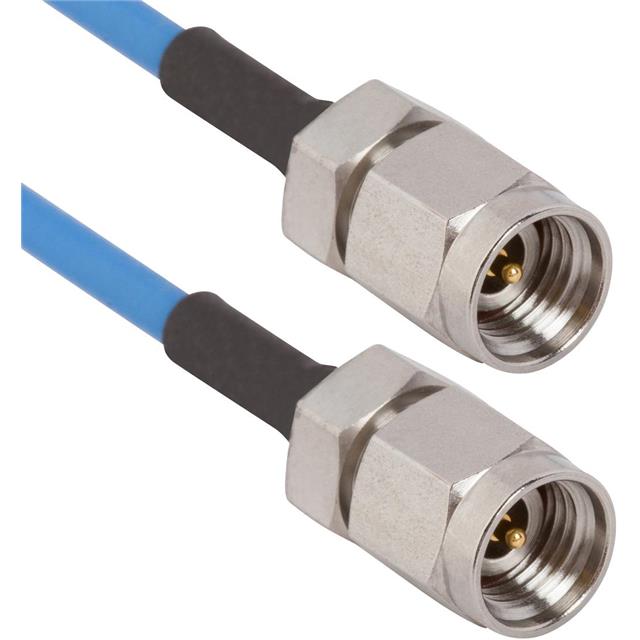

McGill Microwave Systems 7015-0617	405	TFlex	Blue	Free Hanging (In-Line)	-65 °C	165 °C	36 in	2.92mm to 2.92mm	40 Gbps	Male	50 Ohms	Shielded	2.92 mm	Plug	2.92 mm	Plug	Male	Free Hanging (In-Line)

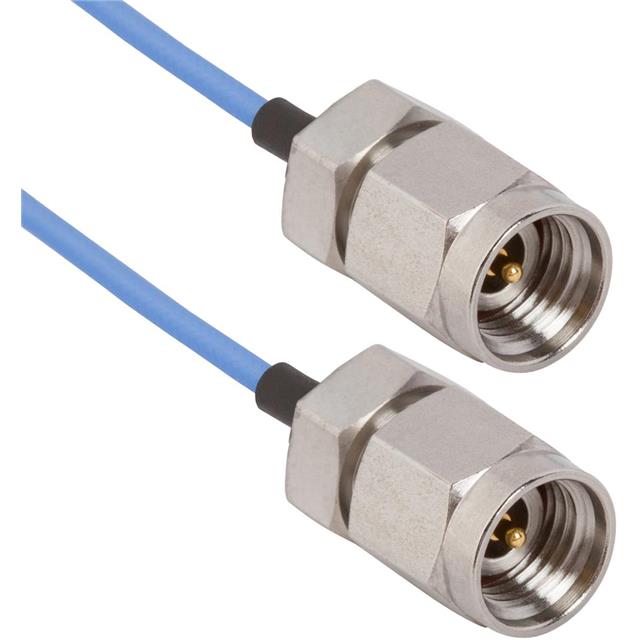

McGill Microwave Systems 7015-0802	0.047 0.047 "	Flexible Cable	Blue	Free Hanging (In-Line)	-65 °C	165 °C	24 in	2.92mm to 2.92mm	40 Gbps	Male	50 Ohms	Shielded	2.92 mm	Plug	2.92 mm	Plug	Male	Free Hanging (In-Line)	0.047 "	0.047 "
McGill Microwave Systems 7015-0803	405	TFlex	Blue	Free Hanging (In-Line)	-65 °C	165 °C	0.5 ft	2.92mm to 2.92mm	40 Gbps	Male	50 Ohms	Shielded	2.92 mm	Plug	2.92 mm	Plug	Male	Free Hanging (In-Line)
