282127 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

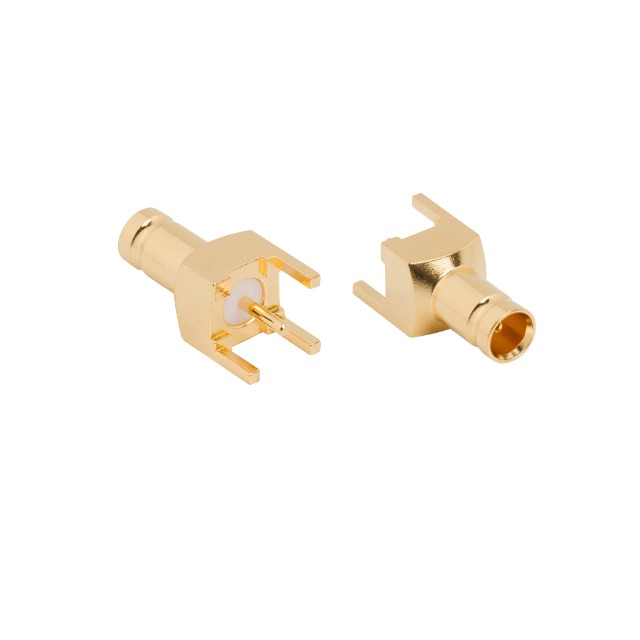

1.0/2.3 STRAIGHT PCB JACK, THROU
| Part | Body Finish | Mating Cycles | Body Material | Dielectric Material | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Number of Ports | Connector Style | Center Contact Material | Frequency - Max | Mounting Type | Fastening Type | Shield Termination | Contact Termination | Connector Type | Impedance | Housing Color | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | 500 cycles | Brass | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Gold | 1 | 1.0/2.3 | Beryllium Copper | 4 GHz | Through Hole | Push-Pull | Solder | Solder | Female Socket Jack | 75 Ohm | Gold | |
 McGill Microwave Systems | Gold | 500 cycles | Brass | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Gold | 1 | 1.0/2.3 | Beryllium Copper | 3 GHz | Through Hole | Push-Pull | Solder | Solder | Female Socket Jack | 75 Ohm | Gold | 250 V |
