FLS012N Series

Catalog

CIRCULAR CONNECTOR, ECOMATE AQUARIUS FATHOM LOCK SERIES, WALL MOUNT RECEPTACLE, 3 CONTACTS

Part	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Number of Positions	Shell Size - Insert Length	Shell Size - Insert Width	Connector Type	Shielding	Primary Material	Shell Material	Housing Color	Contact Size	Note	Mounting Type	Material Flammability Rating	Contact Type	Orientation	Type	Contact Shape	Ingress Protection IP Rating	Ingress Protection Description	Fastening Type	Mounting Feature	Features
McGill Microwave Systems FLS012N3S03-PM	125 °C	-40 °C	Thermoplastic	3	12 mm	3 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	16 S	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Female Sockets	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange
McGill Microwave Systems FLS012N3S03	125 °C	-40 °C	Thermoplastic	3	12 mm	3 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	16 S	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Female Sockets	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange
McGill Microwave Systems FLS012N3P03-PM	125 °C	-40 °C	Thermoplastic	3	12 mm	3 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	16 S	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Male Pins	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange
McGill Microwave Systems FLS012N10S03-PM	125 °C	-40 °C	Thermoplastic	10	12 mm	10 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	20	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Female Sockets	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange

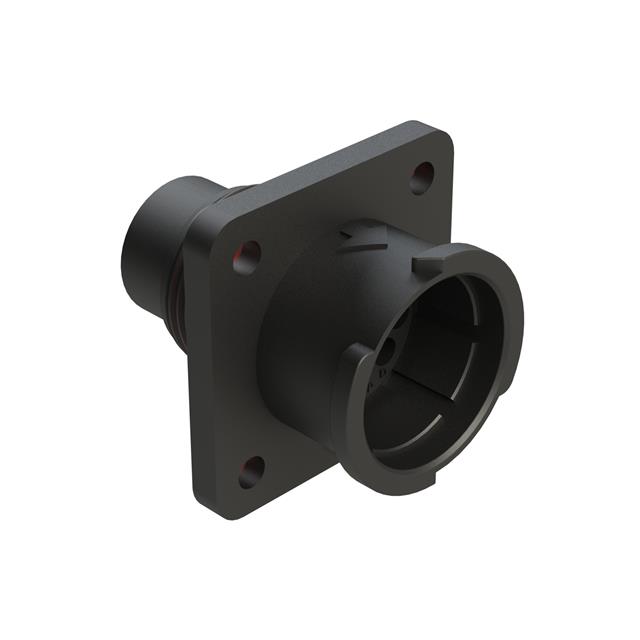

McGill Microwave Systems FLS012N10P03-PM	125 °C	-40 °C	Thermoplastic	10	12 mm	10 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	20	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Male Pins	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange
McGill Microwave Systems FLS012N2P03-PM	125 °C	-40 °C	Thermoplastic	4	12 mm	4 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	12 20	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Male Pins	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange
McGill Microwave Systems FLS012N10SHEC03	125 °C	-40 °C	Thermoplastic	10	12 mm	10 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	20	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Female Sockets	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange	Cap (Cover)
McGill Microwave Systems FLS012N3P03	125 °C	-40 °C	Thermoplastic	3	12 mm	3 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	16 S	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Male Pins	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange
McGill Microwave Systems FLS012N2PHEC03	125 °C	-40 °C	Thermoplastic	4	12 mm	4 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	12 20	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Male Pins	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange	Cap (Cover)
McGill Microwave Systems FLS012N4S03	125 °C	-40 °C	Thermoplastic	4	12 mm	4 mm	Receptacle Housing	Unshielded	Plastic	Thermoplastic	Black	16 S	Contacts Not Included	Panel Mount	UL94 V-0	Crimp	N (Normal)	For Female Sockets	Circular	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Bayonet Lock	Flange
