ADG1607 Series

Catalog

4.5 Ω RON, 16-CHANNEL, DIFFERENTIAL 8-CHANNEL, ±5V, +12 V, +5 V, AND +3.3 V MULTIPLEXERS

Part	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Channel-to-Channel Matching (ΔRon)	Charge Injection	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Maximum)	Current - Leakage (Max)	Multiplexer Inputs	Demultiplexer Outputs	Switch Time Ton (Max)	Switch Time Toff (Max)	Package / Case	On-State Resistance (Max)	Number of Circuits	Mounting Type	Package Length	Package Name	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Channel Capacitance (CD(off))	Channel Capacitance (CS(off))	-3db Bandwidth	Crosstalk

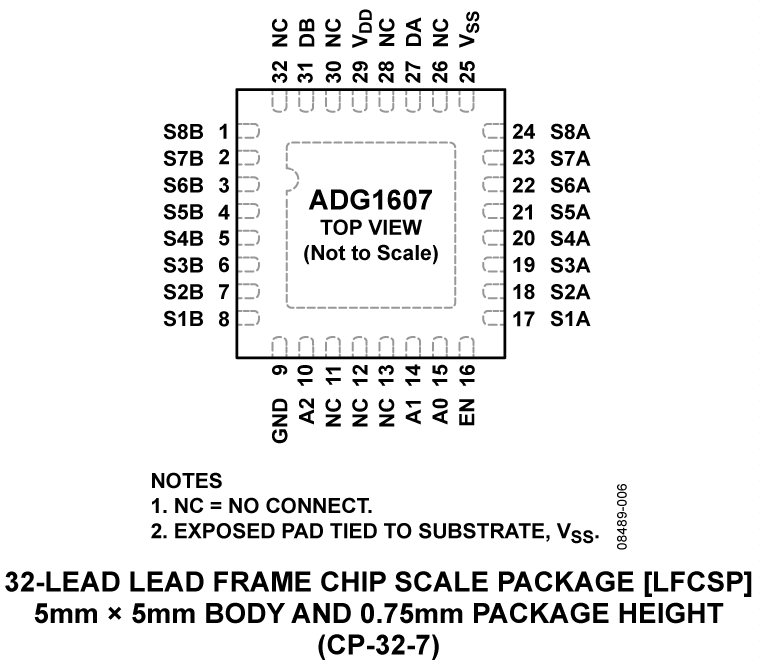

Analog Devices Inc./Maxim Integrated ADG1607BCPZ-REEL7	16 V	3.3 V	200 mOhm	33 pC	3.3 V	-3.3 V	8 V	150 pA	8	1	128 ns	109 ns	32-VFQFN Exposed Pad CSP	5 Ohm	2	Surface Mount	5 mm	32-LFCSP-VQ	5 mm	125 °C	-40 °C	120 pF	18 pF	38 MHz	-62 dB
Analog Devices Inc./Maxim Integrated ADG1607BRUZ	16 V	3.3 V	200 mOhm	33 pC	3.3 V	-3.3 V	8 V	150 pA	8	1	128 ns	109 ns		5 Ohm	2	Surface Mount	0.173 in	28-TSSOP	4.4 mm	125 °C	-40 °C	120 pF	18 pF	38 MHz	-62 dB
Analog Devices Inc./Maxim Integrated ADG1607BRUZ-REEL7	16 V	3.3 V	200 mOhm	33 pC	3.3 V	-3.3 V	8 V	150 pA	8	1	128 ns	109 ns		5 Ohm	2	Surface Mount	0.173 in	28-TSSOP	4.4 mm	125 °C	-40 °C	120 pF	18 pF	38 MHz	-62 dB
