13-0003 Series

Catalog

CONN D-SUB HOUSING RCPT 7POS

Part	Dielectric Material	Note	Color	Mating Cycles	Contact Type	Connector Style	Features	Finish	Shell Material	Number of Rows	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Flange Feature	Shell Size	Part Code	Connector Layout	Connector Type	Mounting Type	Contact Finish	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Form	Termination Finish	Type	Contact Termination	Contact Material	Contact Finish Thickness	Termination Finish Thickness

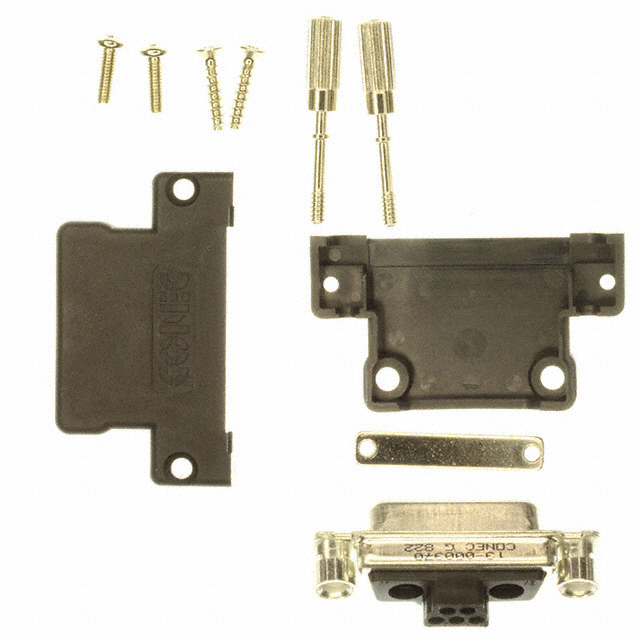

McGill Microwave Systems 13-000370	Glass Filled Polybutylene Terephthalate (PBT)	Contacts Not Included	Black	250 cycles	Power Signal	Combo D-Sub	Mounting Hardware Strain Relief	Tin Plated	Steel	2	7	5	2	Cable Side (4-40)	2	7W2	A DA	Receptacle for Female Contacts	Free Hanging (In-Line)

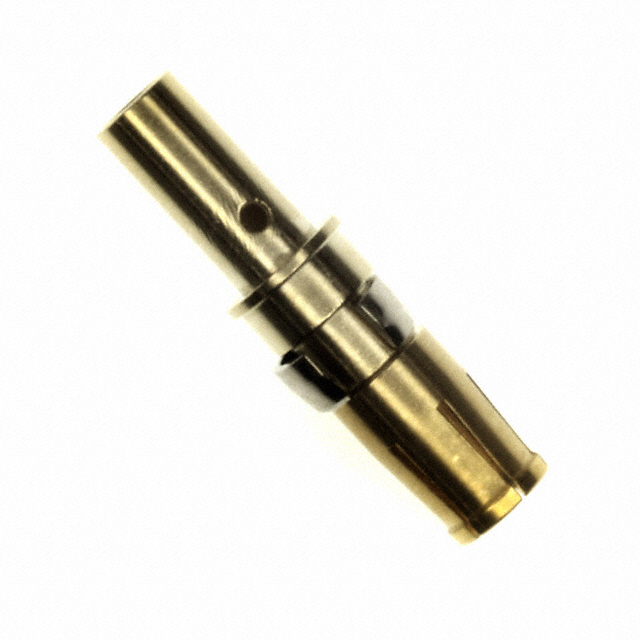

McGill Microwave Systems 13-000301					Female Socket															Gold	14 AWG	12 AWG	Machined	Gold	Power	Crimp	Copper Alloy	30 µin	8 Ąin

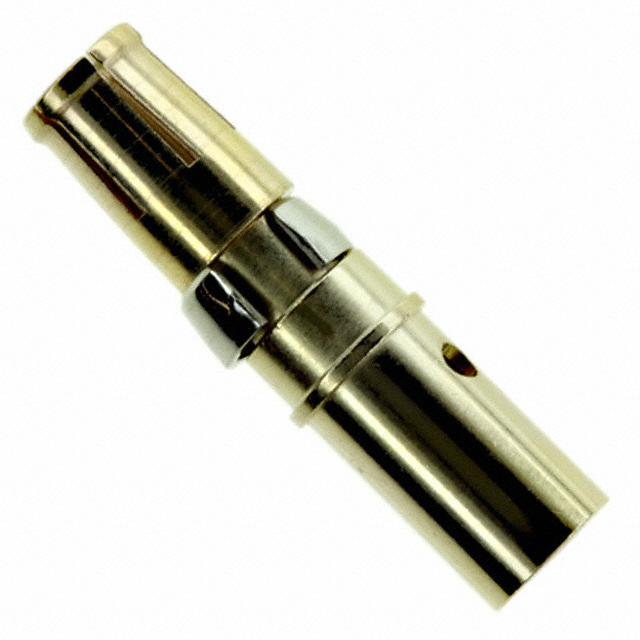

McGill Microwave Systems 13-000311					Female Socket															Gold	12 AWG	10 AWG	Machined	Gold	Power	Crimp	Copper Alloy	30 µin	8 Ąin
