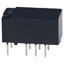

ASX210 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY TELECOM DPDT 10MA 4.5V
| Part | Mounting Type | Contact Form | Switching Voltage DC (Max) | Release Time | Coil Type | Contact Rating (Current) | Contact Material | Coil Current | Coil Voltage | Relay Type | Load - Max Switching (Real Power) | Termination Style | Approval Agency | Must Operate Voltage | Operating Temperature (Min) | Operating Temperature (Max) | Operate Time | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Through Hole | 2 2 Form C C DPDT Form | 10 VDC | 5 ms | Latching Single Coil | 10 mA | Gold (Au) Silver Palladium (AgPd) | 7.8 mA | 4.5 VDC | Telecom | 100 W | PC Pin | CSA UR | 3.6 VDC | -40 °C | 70 °C | 5 ms | 579 Ohms |
Panasonic Electronic Components | Through Hole | 2 2 Form C C DPDT Form | 10 VDC | 5 ms | Latching Single Coil | 10 mA | Gold (Au) Silver Palladium (AgPd) | 2.9 mA | 12 VAC | Telecom | 100 W | PC Pin | CSA UR | 9.6 VDC | -40 °C | 70 °C | 5 ms | 4.11 kOhms |
 Panasonic Electronic Components | Surface Mount | 2 2 Form C C DPDT Form | 10 VDC | 5 ms | Latching Single Coil | 10 mA | Gold (Au) Silver Palladium (AgPd) | 7.8 mA | 4.5 VDC | Telecom | 100 W | Gull Wing | CSA UR | 3.6 VDC | -40 °C | 70 °C | 5 ms | 579 Ohms |
Panasonic Electronic Components | Surface Mount | 2 2 Form C C DPDT Form | 10 VDC | 5 ms | Latching Single Coil | 10 mA | Gold (Au) Silver Palladium (AgPd) | 2.1 mA | 24 VDC | Telecom | 100 W | Gull Wing | CSA UR | 19.2 V | -40 °C | 70 °C | 5 ms | 11.52 kOhms |
Panasonic Electronic Components | Through Hole | 2 2 Form C C DPDT Form | 10 VDC | 5 ms | Latching Single Coil | 10 mA | Gold (Au) Silver Palladium (AgPd) | 3.9 mA | 9 VDC | Telecom | 100 W | PC Pin | CSA UR | 7.2 VDC | -40 °C | 70 °C | 5 ms | 2.3 kOhms |
