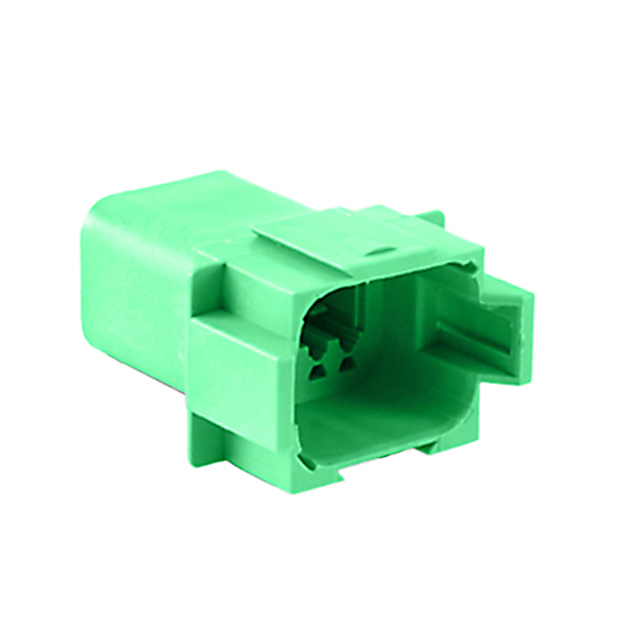

AT04-08PC Series

Catalog

CONN RCPT HSG 8POS 14-20AWG

Part	Note	Fastening Type	Connector Type	Contact Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Number of Rows	Insulation Material	Mounting Type	Number of Positions	Color	Features	Ingress Protection	Insulation Height	Style	Insulation Color	Termination	Contact Shape	Contact Material	Shrouding	Current Rating	Contact Finish - Mating	Number of Positions Loaded	Applications

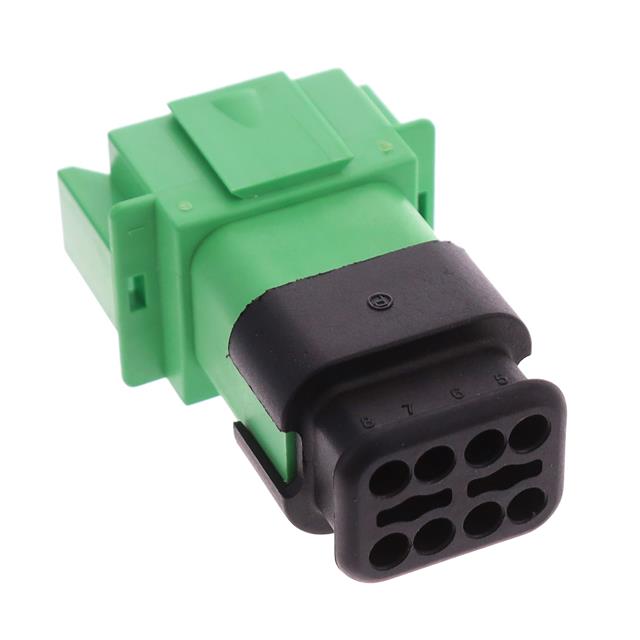

McGill Microwave Systems AT04-08PC-SRGN	Contacts Not Included	Latch Holder	Receptacle	Crimp	125 °C	-55 °C	Male Pin	2	Thermoplastic	Free Hanging (In-Line)	8	Green	Cap (Cover) Sealed Strain Relief
McGill Microwave Systems AT04-08PC-RD01	Contacts Not Included	Latch Holder	Receptacle	Crimp	125 °C	-55 °C	Male Pin	2	Thermoplastic	Free Hanging (In-Line)	8	Green	Sealed
McGill Microwave Systems AT04-08PC-BM01		Latch Holder	Receptacle		125 °C	-55 °C	Male Pin	2	Thermoplastic	Through Hole	8		Board Lock	IP67	0.835 in	Board Cable/Wire	Green	Solder	Circular	Copper Alloy	Shrouded - 4 Wall	13 A	Gold	All	Automotive General Purpose Industrial

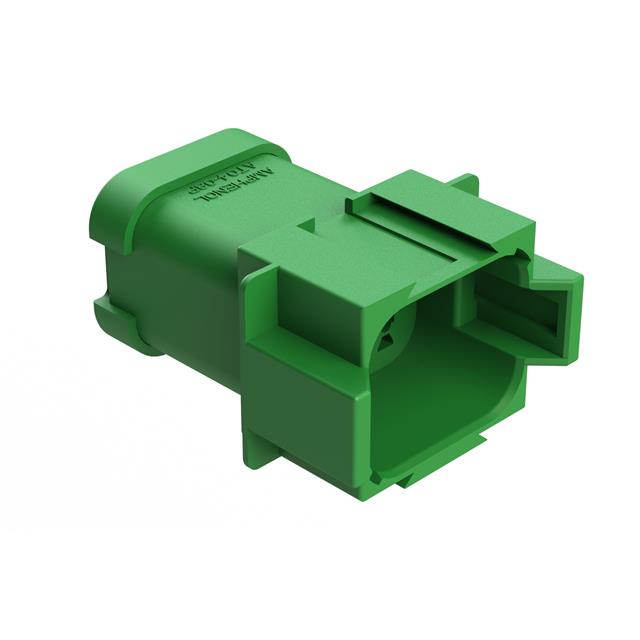

McGill Microwave Systems AT04-08PC-EC01	Contacts Not Included	Latch Holder	Receptacle	Crimp	125 °C	-55 °C	Male Pin	2	Thermoplastic	Free Hanging (In-Line)	8	Green	Cap (Cover)
McGill Microwave Systems AT04-08PC-PM13	Contacts Not Included	Latch Holder	Receptacle	Crimp	125 °C	-55 °C	Male Pin	2	Thermoplastic	Panel Mount	8	Green	Cap (Cover) Mounting Flange Sealed
McGill Microwave Systems AT04-08PC-BM02		Latch Holder	Receptacle		125 °C	-55 °C	Male Pin	2	Thermoplastic	Through Hole	8		Board Lock Potting Wall	IP67	0.835 in	Board Cable/Wire	Green	Solder	Circular	Copper Alloy	Shrouded - 4 Wall	13 A	Gold	All	Automotive General Purpose Industrial
McGill Microwave Systems AT04-08PC-BM03		Latch Holder	Receptacle		125 °C	-55 °C	Male Pin	2	Thermoplastic	Through Hole	8		Board Lock	IP67	0.835 in	Board Cable/Wire	Green	Solder	Circular	Copper Alloy	Shrouded - 4 Wall	13 A	Nickel	All	Automotive General Purpose Industrial
McGill Microwave Systems AT04-08PC-BM04		Latch Holder	Receptacle		125 °C	-55 °C	Male Pin	2	Thermoplastic	Through Hole	8		Board Lock Potting Wall	IP67	0.835 in	Board Cable/Wire	Green	Solder	Circular	Copper Alloy	Shrouded - 4 Wall	13 A	Nickel	All	Automotive General Purpose Industrial
McGill Microwave Systems AT04-08PC-SR2GN	Contacts Not Included	Latch Holder	Receptacle	Crimp	125 °C	-55 °C	Male Pin	2	Thermoplastic	Free Hanging (In-Line)	8	Green	Cap (Cover) Sealed Strain Relief

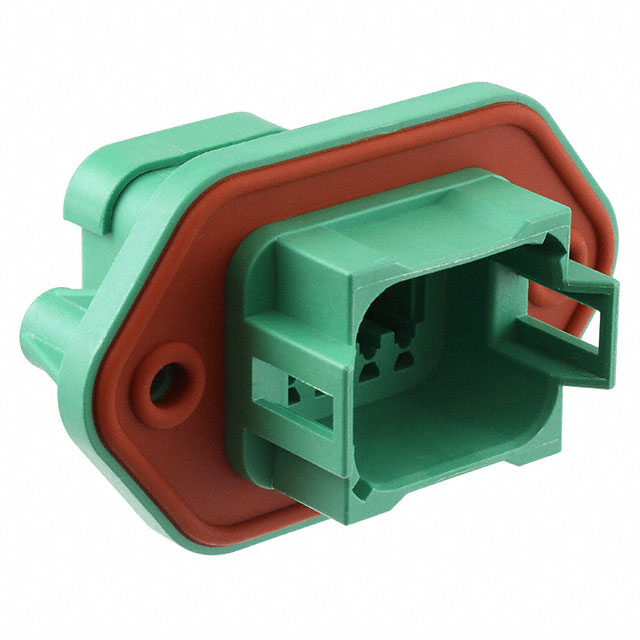

McGill Microwave Systems AT04-08PC-PM14	Contacts Not Included	Latch Holder	Receptacle	Crimp	125 °C	-55 °C	Male Pin	2	Thermoplastic	Panel Mount	8	Green	Cap (Cover) Mounting Flange Sealed
