5749232 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

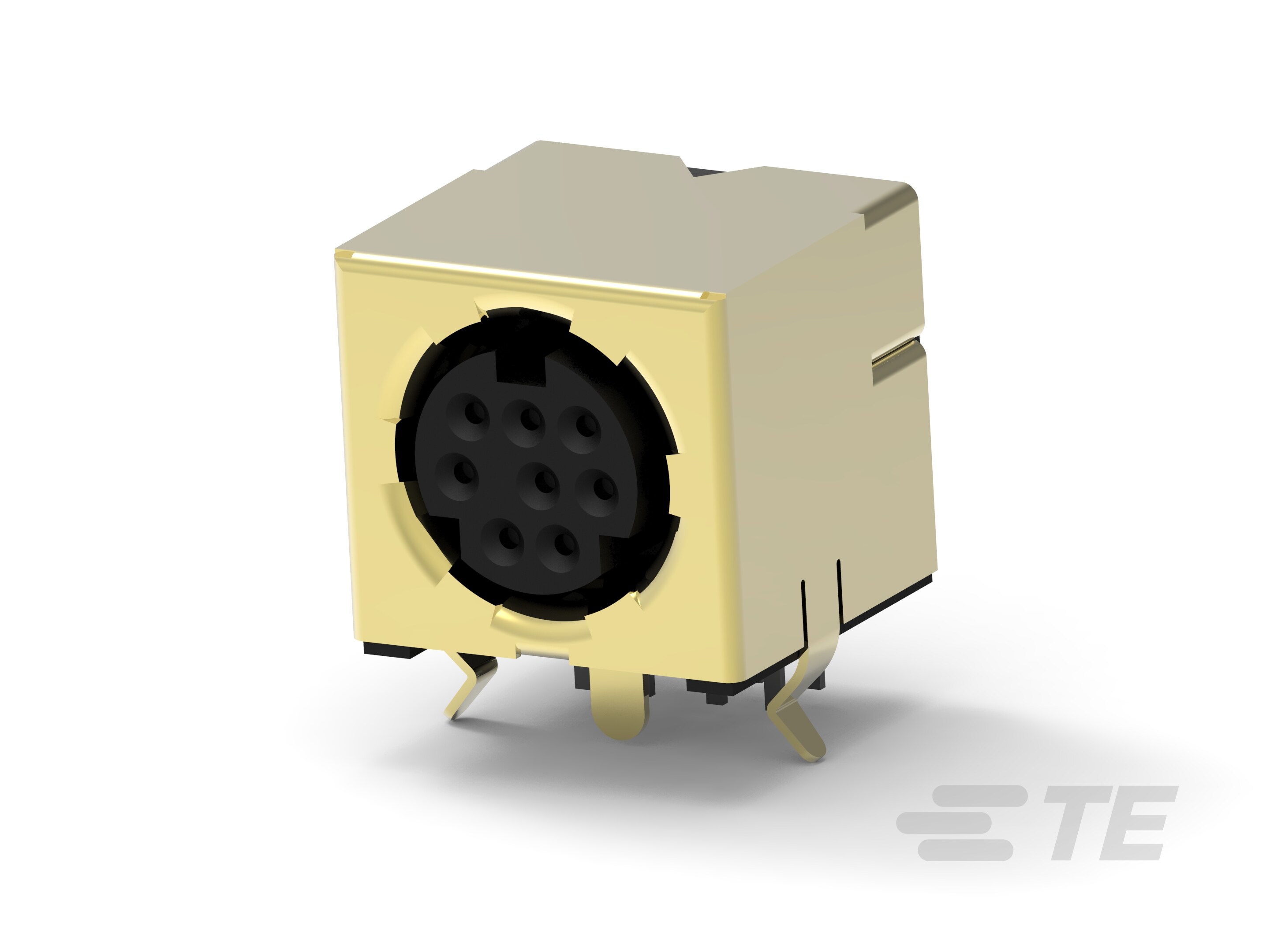

CONN CIRCULAR DIN SKT 8 POS SOLDER RA THRU-HOLE 8 TERMINAL 1 PORT TUBE
| Part | Current Rating | Primary Material | Features | Contact Finish - Mating | Mounting Type | Fastening Type | Orientation | Connector Type | Material Flammability Rating | Number of Positions | Shell Material | Shell Size - Insert | Shielding | Voltage Rating | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Contact Finish Thickness - Mating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1 A | Plastic | Board Lock | Gold | Right Angle Through Hole | Push-Pull | Keyed | Female Sockets Receptacle | UL94 V-0 | 8 | Thermoplastic | Mini DIN | Shielded | 30 V | Solder | -55 °C | 105 °C | Copper Alloy | Flash | Audio Video |
