282845 Series

Catalog

TERM BLK 3P SIDE ENT 7.62MM PCB

Part	Mating Orientation	Positions Per Level	Color	Current	Number of Levels	Wire Termination	Mounting Type	Features	Voltage	Pitch	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Housing Material	Screw Thread	Clamp Material	Clamp Plating	Torque - Screw	Screw Material	Screw Plating	Contact Material	Plating

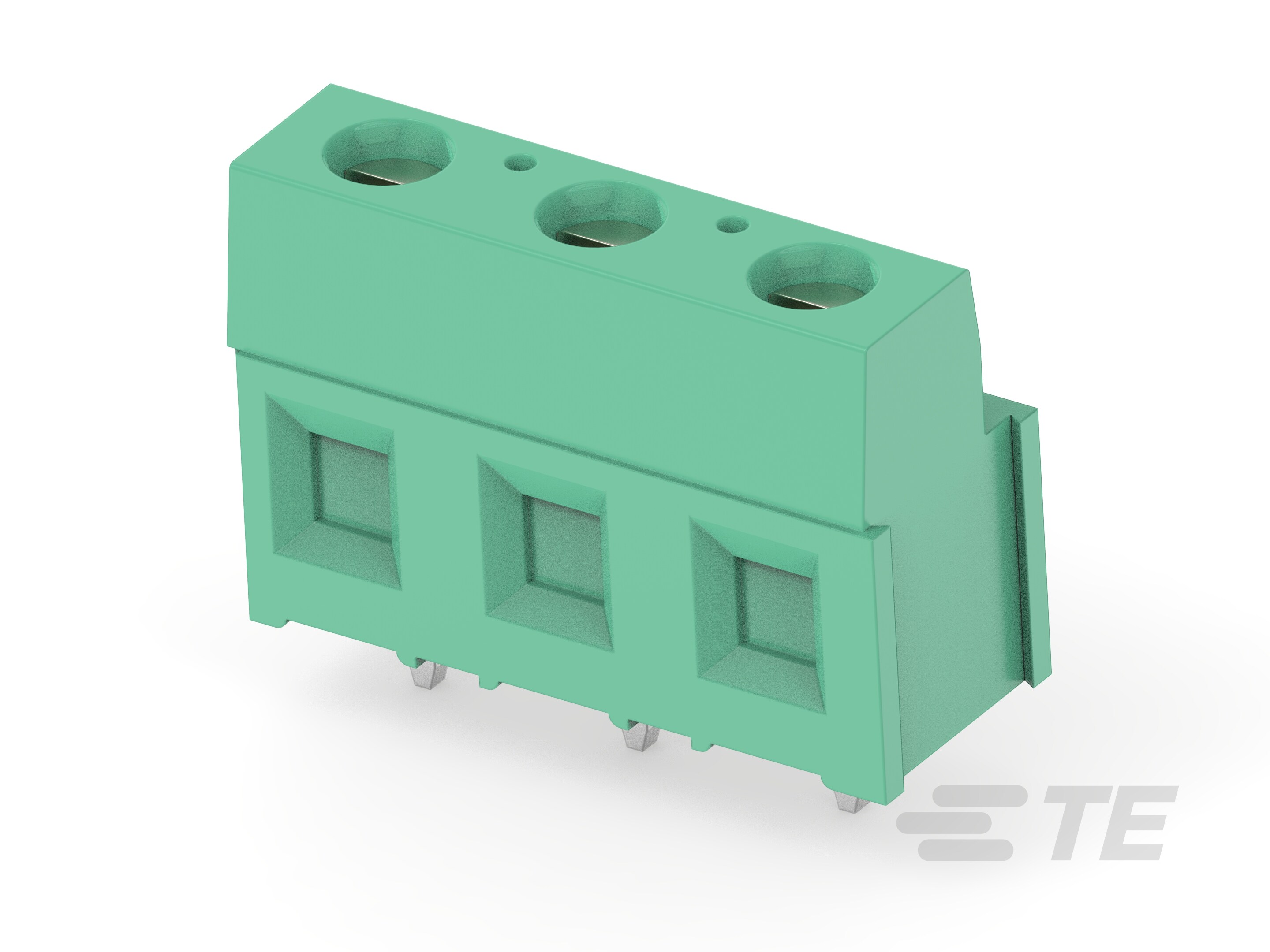

TE Connectivity AMP Connectors 282845-3	Horizontal with Board	3	Green	17.5 A	1	Rising Cage Clamp Screw	Through Hole	Interlocking (Side)	300 V	0.3 in	12 AWG	30 AWG	Nylon 6/6 PA66 Polyamide	M3	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	Brass	Tin Plated

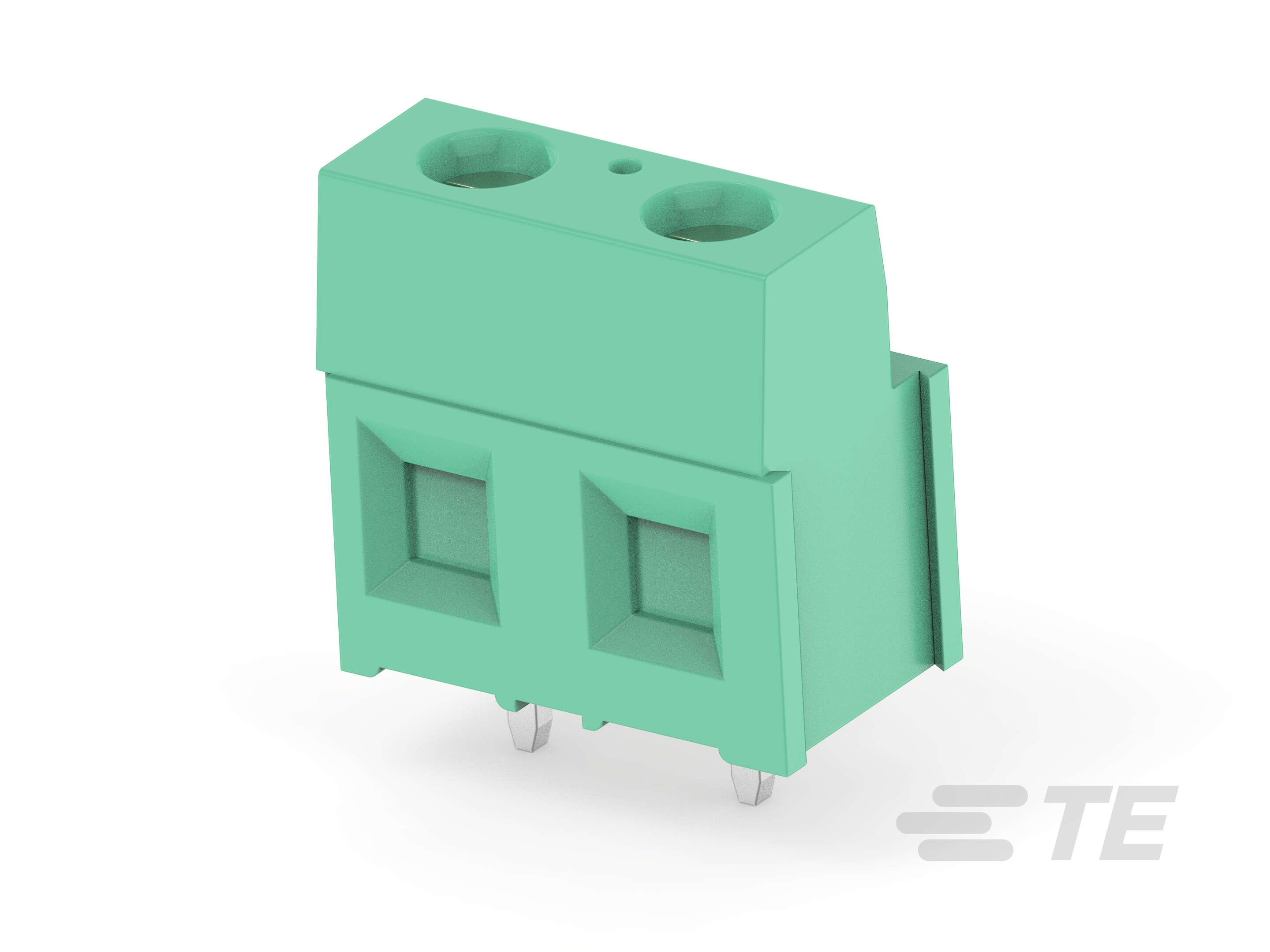

TE Connectivity AMP Connectors 282845-2	Horizontal with Board	2	Green	17.5 A	1	Rising Cage Clamp Screw	Through Hole	Interlocking (Side)	300 V	0.3 in	12 AWG	30 AWG	Nylon 6/6 PA66 Polyamide	M3	Brass	Nickel Plated	0.79 Nm	Brass	Nickel Plated	Brass	Tin Plated
