Q-0E02Y0 Series

Catalog

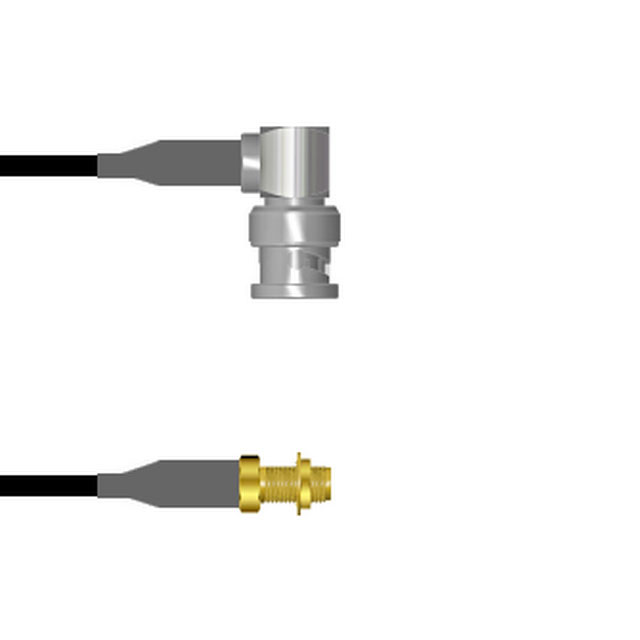

CBL ASSY BNC-SMA PLUG-JACK 36"

Part	Cable Type	Cable Impedance	Features	Style	2nd Connector Mounting Type	Connector Impedance	1st Connector	1st Contact Gender	2nd Connector	Overall Impedance	Length	2nd Connector Mounting Feature	Frequency - Max	2nd Contact Gender	1st Connector Mounting Type	Color	Length (ft)
McGill Microwave Systems Q-0E02Y0008036i	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	36 in	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black
McGill Microwave Systems Q-0E02Y0008.25M	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	9.843 in	Bulkhead - Front Side Nut	4 GHz	Female	Free Hanging (In-Line)	Black
McGill Microwave Systems Q-0E02Y0008018i	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	18 in	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black
McGill Microwave Systems Q-0E02Y0008060i	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	1524 mm	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black	5 ft
McGill Microwave Systems Q-0E02Y0008012i	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	12 in	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black
McGill Microwave Systems Q-0E02Y0008048i	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	48 in	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black
McGill Microwave Systems Q-0E02Y0008108i	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	9 ft	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black
McGill Microwave Systems Q-0E02Y0008084i	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	84 in	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black	7 ft
McGill Microwave Systems Q-0E02Y0008006i	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	0.5 ft	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black
McGill Microwave Systems Q-0E02Y0008009F	58 RG	50 Ohms	Shielded	BNC SMA	Panel Mount	50 Ohms	BNC Plug Right Angle	Male	SMA Jack	50 Ohms	9 ft	Bulkhead - Front Side Nut	1 GHz	Female	Free Hanging (In-Line)	Black
