1-0-2-3 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

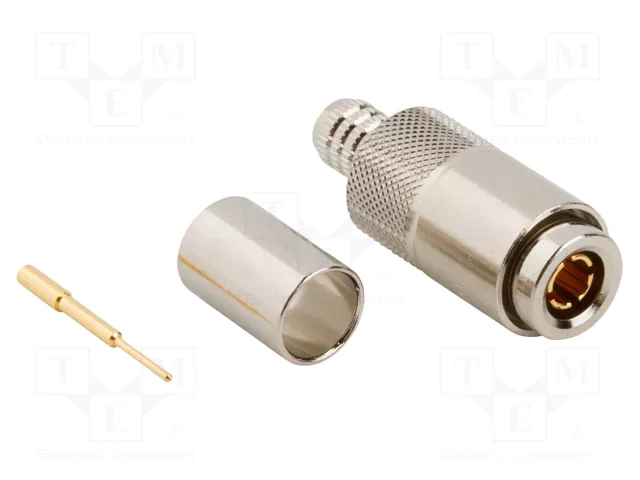

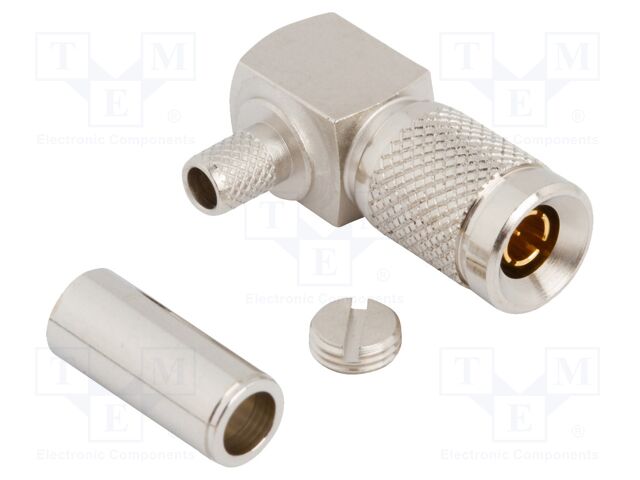

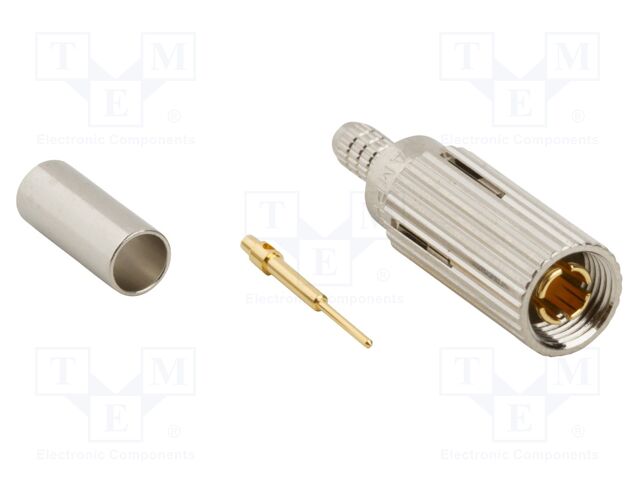

CONNECTOR: COAXIAL; PLUG; MALE; 1.0-2.3; SOLDERING,CRIMPED; BRASS
| Part | Frequency - Max | Number of Ports | Fastening Type | Mounting Type | Impedance | Center Contact Material | Connector Style | Contact Termination | Cable Group | Connector Type | Shield Termination | Housing Color | Mounting Feature | Body Finish | Voltage Rating | Operating Temperature (Max) | Operating Temperature (Min) | Dielectric Material | Center Contact Plating | Body Material | Mating Cycles | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 2 GHz | 1 | Push-Pull | Free Hanging (In-Line) Right Angle | 75 Ohm | Beryllium Copper Brass | 1.0/2.3 | Solder | 735A AT&T 735 Belden 735A1 | Male Pin Plug | Crimp | Silver | |||||||||||
 McGill Microwave Systems | 3 GHz | 1 | Push-Pull | Panel Mount Right Angle Through Hole | 75 Ohm | Brass Phosphor Bronze | 1.0/2.3 | Solder | Female Socket Recepture | Solder | Gold | Bulkhead Front Side Nut | |||||||||||
 McGill Microwave Systems | 10 GHz | 1 | Push-Pull | Free Hanging (In-Line) | 50 Ohm | Brass | 1.0/2.3 | Solder | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Male Pin Plug | Crimp | Silver | Nickel | 250 V | 155 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | 500 cycles | |||
 McGill Microwave Systems | 10 GHz | 1 | Threaded | Free Hanging (In-Line) | 50 Ohm | Brass | 1.0/2.3 | Solder | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | Male Pin Plug | Crimp | Silver | Nickel | 250 V | 125 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | 500 cycles | 3 pcs | Connector Contact Ferrule | |
 McGill Microwave Systems | 3 GHz | 1 | Push-Pull | Board Edge End Launch Panel Mount | 75 Ohm | Beryllium Copper | 1.0/2.3 | Solder | Female Socket Recepture | Solder | Gold | Bulkhead Front Side Nut |
