NBN40 Series

Catalog

INDUCTIVE SEN 40MM NO/NC

Part	Material - Body	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Ingress Protection	Shielding	Sensor Type	Indicator	Package / Case	Sensing Distance	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style
Pepperl+Fuchs, Inc. NBN40-U4-UU	Polyamide (PA)	85 °C	-25 °C	2-Wire NO SCR-NC	IP67	Unshielded	Inductive	LED	Module	1.575 "	20 VDC	253 VAC	300 VDC	20 VAC
Pepperl+Fuchs, Inc. NBN40-L3M-A2-C3-V1	Zinc Die-Cast	85 °C	-25 °C	4-Wire NO PNP-NC	IP67	Unshielded	Inductive	LED	Module	1.575 "					10 VDC	30 VDC	Connector

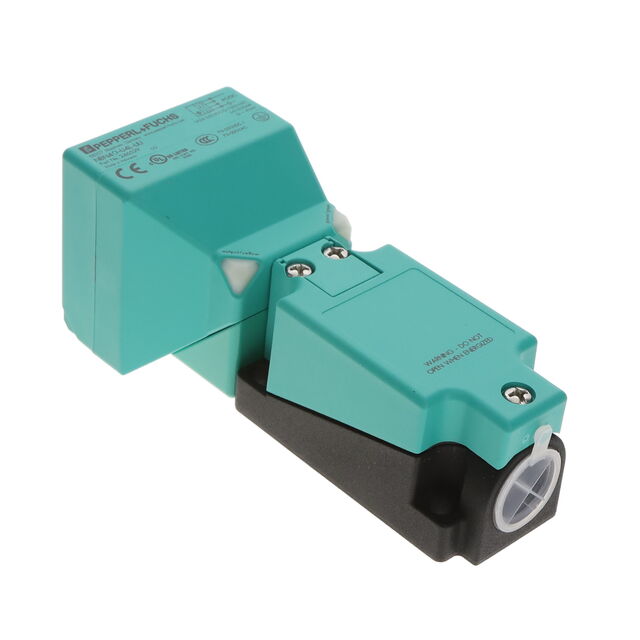

Pepperl+Fuchs, Inc. NBN40-U4L-UU	Polyamide (PA)	85 °C	-25 °C	2-Wire NO SCR-NC	IP67	Unshielded	Inductive	LED	Module	1.575 "	20 VDC	253 VAC	300 VDC	20 VAC
Pepperl+Fuchs, Inc. NBN40-L2-A2-V1	Polyamide (PA)	85 °C	-25 °C	4-Wire NO PNP-NC	IP69K	Unshielded	Inductive	LED	Module	1.575 "					10 VDC	30 VDC	Connector
Pepperl+Fuchs, Inc. NBN40-U4-A2	Polyamide (PA)	85 °C	-25 °C	4-Wire NO PNP-NC	IP68 IP69K	Unshielded	Inductive	LED	Module	1.575 "					10 VDC	30 VDC
Pepperl+Fuchs, Inc. NBN40-L2M-E2-V1	Polyamide (PA)	85 °C	-25 °C	3-Wire PNP-NO	IP69K	Unshielded	Inductive	LED	Module	1.575 "					10 VDC	30 VDC	Connector

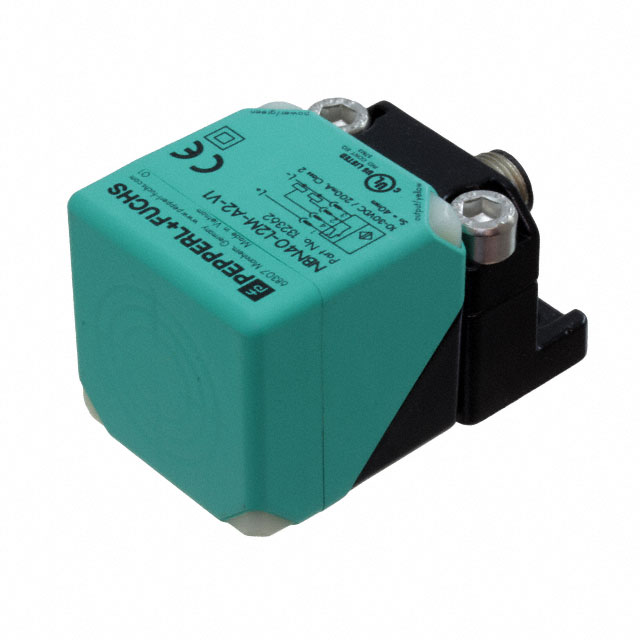

Pepperl+Fuchs, Inc. NBN40-L2M-A2-V1	Polyamide (PA)	85 °C	-25 °C	4-Wire NO PNP-NC	IP69K	Unshielded	Inductive	LED	Module	1.575 "					10 VDC	30 VDC	Connector
Pepperl+Fuchs, Inc. NBN40-L2-E2-V1	Polyamide (PA)	85 °C	-25 °C	3-Wire PNP-NO	IP69K	Unshielded	Inductive	LED	Module	1.575 "					10 VDC	30 VDC	Connector
