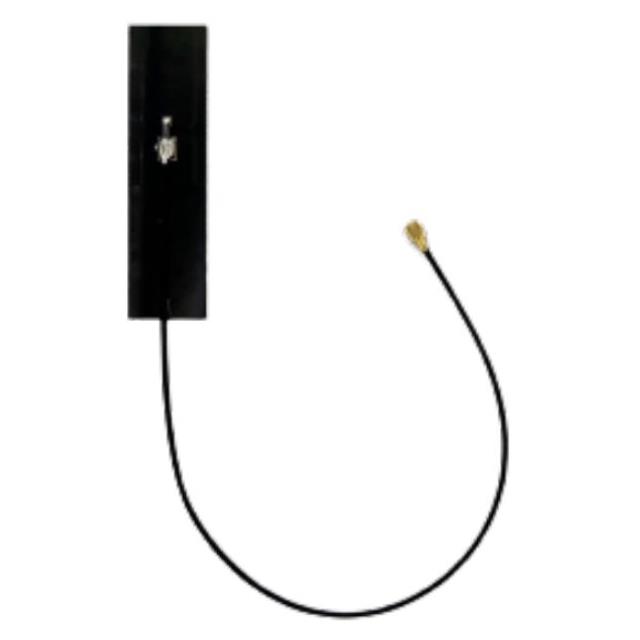

ST1225-20 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF ANTENNA, 5.925 TO 7.125GHZ, PCB / IOT / ISM / WIFI 2 / WLAN / ZIGBEE, LINEAR, MHF1 CONNECTOR
| Part | RF Family/Standard | Frequency (Center) | Frequency (Band) | Antenna Type | Features | Number of Bands | Height (Max) | Gain | Frequency Range (Band 1) Maximum | Frequency Range (Band 1) Minimum | Frequency Range (Band 2) Maximum | Frequency Range (Band 2) Minimum | Frequency Group Minimum (SHF) | Frequency Group | Frequency Group Maximum (UHF) | Frequency Group Minimum (UHF) | Return Loss | Power - Max | Applications | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | WiFi | 2.45 GHz | 6.18 GHz | PCB Trace | 100mm Cable | 2 | 0.028 in | 3.4 dBi | 2.5 GHz | 2.4 GHz | 7.2 GHz | 5.15 GHz | 4 GHz | SHF UHF | 3 GHz | 2 GHz | -10 dB | 1 VA | Wi-Fi | Adhesive |
