SP-4 Series

Catalog

SPEAKER / LOUDSPEAKER AUDIO CONNECTOR, SP SERIES, 4 CONTACT, PLUG, CABLE MOUNT

Part	Current Rating	Mounting Type	Orientation	Operating Temperature (Min)	Operating Temperature (Max)	Shell Finish	Contact Finish - Mating	Color	Primary Material	Number of Positions	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Features	Connector Type	Termination	Fastening Type	Shielding	Ingress Protection	Mounting Feature	Applications	Insert Material	Contact Material	Material Flammability Rating	Current Rating (Per Contact)
McGill Microwave Systems SP-4-FN	20 A	Free Hanging (In-Line)	Keyed	-25 °C	75 °C	Nickel	Silver	Silver	Metal	4	Zinc Die Cast	IP54	Dust Protected Water Resistant	Backshell	Non-Gendered Plug	Screw	Latch Lock
McGill Microwave Systems SP-4-MDQ	20 A	Panel Mount	Keyed	-25 °C	75 °C		Silver	Black	Plastic	4	Glass Filled Nylon 6/6 Polyamide (PA66)				Non-Gendered Receptacle	Solder Tabs	Latch Holder	Unshielded	IP20 IP40	Flange	Audio	Glass Filled Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 HB

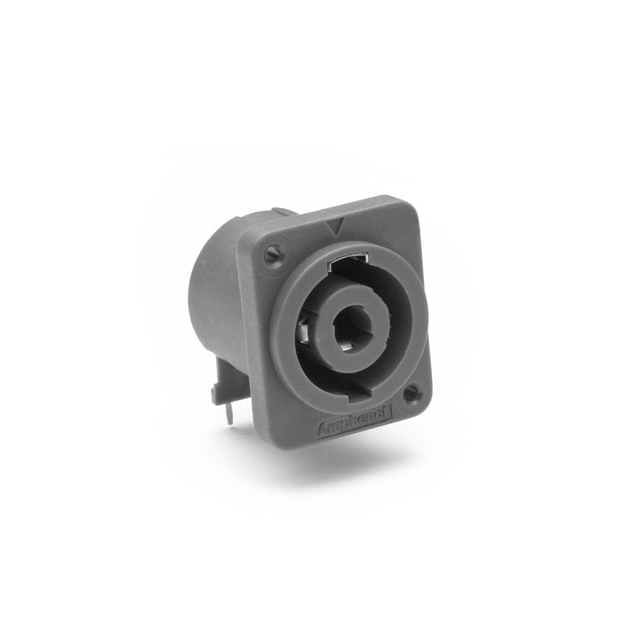

McGill Microwave Systems SP-4-MDHT-8	30 A	Panel Mount Right Angle Through Hole	Keyed	-25 °C	75 °C		Silver	Gray	Plastic	4	Glass Filled Nylon 6/6 Polyamide (PA66)	IP54	Dust Protected Water Resistant		Non-Gendered Receptacle	Solder	Latch Holder	Unshielded		Flange	Audio	Glass Filled Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 HB
McGill Microwave Systems SP-4-MD	20 A	Panel Mount	Keyed	-25 °C	75 °C		Silver		Plastic	4	Glass Filled Nylon 6/6 Polyamide (PA66)	IP54	Dust Protected Water Resistant		Non-Gendered Receptacle	Solder Tabs	Latch Holder			Flange					30 A
