SF2960 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
SMA FEMALE FLANGE MOUNT CONNECTOR, 4 HOLE, R/A (SOLDER POT) /INDIVIDUAL - TRAY (PACK FILL QTY: 50)
| Part | Mating Cycles | Body Material | Dielectric Material | Center Contact Plating | Frequency - Max | Connector Style | Mounting Feature | Mounting Type | Shield Termination | Connector Type | Impedance | Fastening Type | Number of Ports | Contact Termination | Center Contact Material | Housing Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

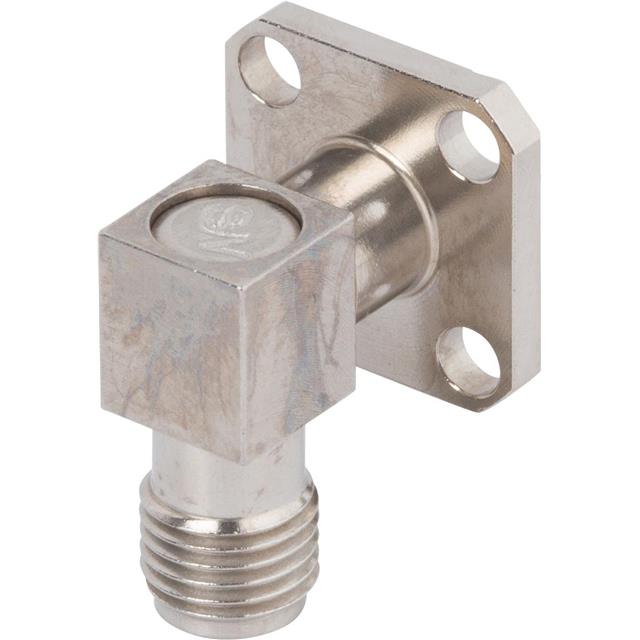

 McGill Microwave Systems | 500 cycles | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 12.4 GHz | SMA | Flange | Panel Mount Right Angle | Solder | Female Socket Jack | 50 Ohm | Threaded | 1 | Solder Cup | Beryllium Copper | Silver | |

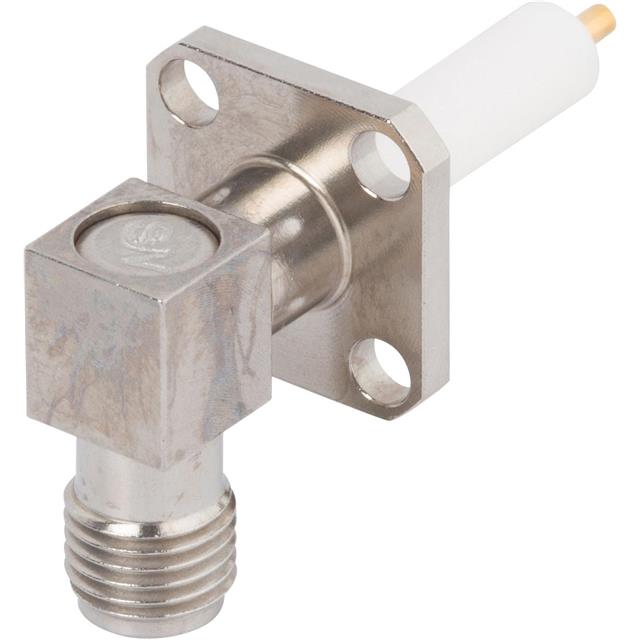

 McGill Microwave Systems | 500 cycles | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | 12.4 GHz | SMA | Flange | Panel Mount Right Angle | Solder | Female Socket Recepture | 50 Ohm | Threaded | 1 | Solder | Beryllium Copper | Silver | Extended Insulation |
