TMC Series
Manufacturer: Vishay Dale
Beta
⌘K
WIREWOUND RESISTORS - CHASSIS MOUNT 12.5WATT 300OHM 1%
| Part | Mounting Feature | Housing Type | Coating | Features | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case | Height - Seated (Max) | Tolerance | Lead Style | Composition | Temperature Coefficient | Resistance | Size / Dimension Length | Size / Dimension Width | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

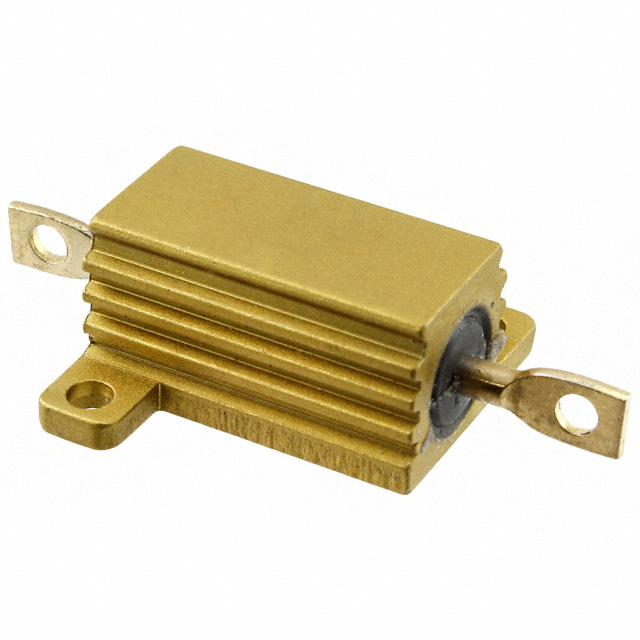

 Vishay Dale | Flanges | Aluminum | Aluminum | Moisture Resistant | 250 °C | -55 °C | Axial Box | 0.405 in | 1 % | Solder Lugs | Wirewound | 20 ppm/¯C | 300 Ohm | 0.75 in | 0.8 in | 12.5 W |

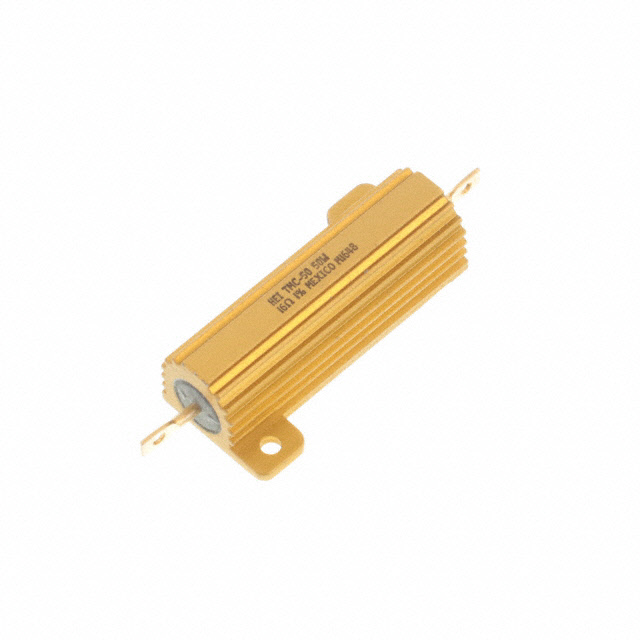

 Vishay Dale | Flanges | Aluminum | Aluminum | Moisture Resistant | 250 °C | -55 °C | Axial Box | 0.625 in | 1 % | Solder Lugs | Wirewound | 20 ppm/¯C | 16 Ohm | 1.968 in | 1.14 in | 50 W |
 Vishay Dale | Flanges | Aluminum | Aluminum | Moisture Resistant | 250 °C | -55 °C | Axial Box | 0.625 in | 1 % | Solder Lugs | Wirewound | 0.15 Ohms | 1.968 in | 1.14 in | 50 W | |

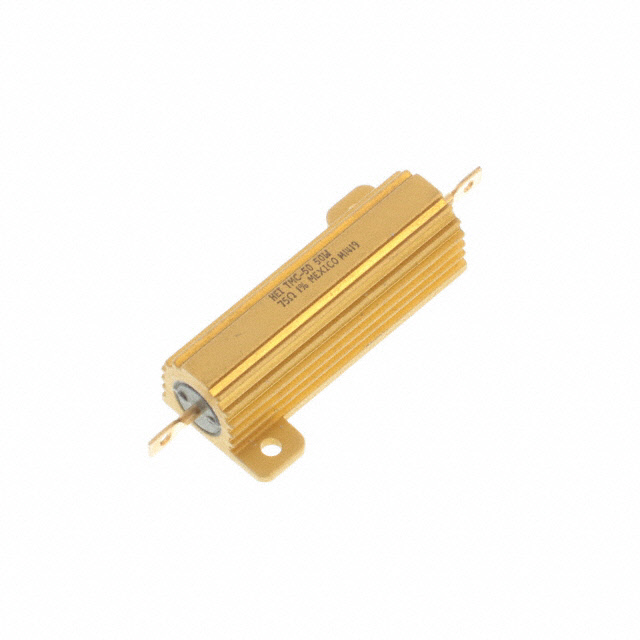

 Vishay Dale | Flanges | Aluminum | Aluminum | Moisture Resistant | 250 °C | -55 °C | Axial Box | 0.625 in | 1 % | Solder Lugs | Wirewound | 20 ppm/¯C | 75 Ohm | 1.968 in | 1.14 in | 50 W |

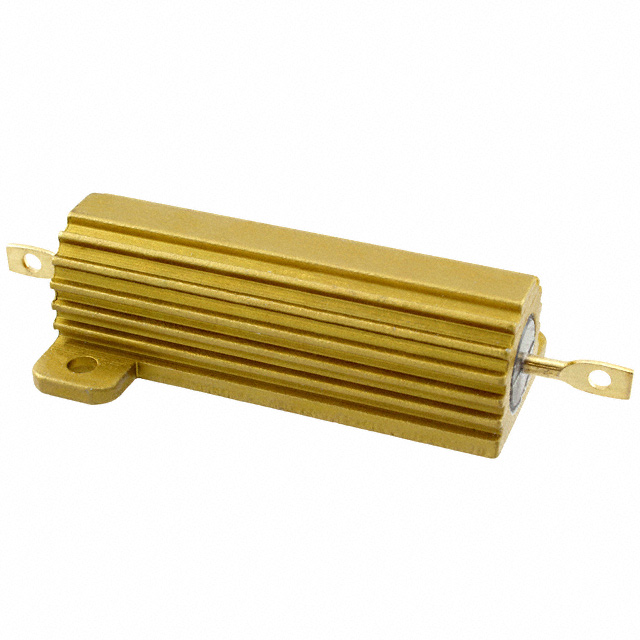

 Vishay Dale | Flanges | Aluminum | Aluminum | Moisture Resistant | 250 °C | -55 °C | Axial Box | 0.625 in | 1 % | Solder Lugs | Wirewound | 50 ppm/°C | 2.5 Ohm | 1.968 in | 1.14 in | 50 W |
