Isolated DC/DC Converters - Through Hole 25W 24VIN 15.1VOUT Single Output

Part	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Voltage - Input (Max)	Approval Agency	Package / Case	Applications	Number of Outputs	Current - Output (Max)	Features	Power (Watts)	Type	Efficiency	Voltage - Output 1	Operating Temperature (Min)	Operating Temperature (Max)	Control Features	Voltage - Input (Min)	Mounting Type	Voltage - Isolation
Murata Electronics NPH25S2403IC	1.38 in	1.97 in	0.39 in	36 V	cURus	6-DIP Module	ITE (Commercial)	1	7.3 A	Adjustable Output Remote On/Off	25 W	Isolated Module	81 %	3.4 V	-40 °C	110 °C	Active Low Enable	18 V	Through Hole	1500 Vrns

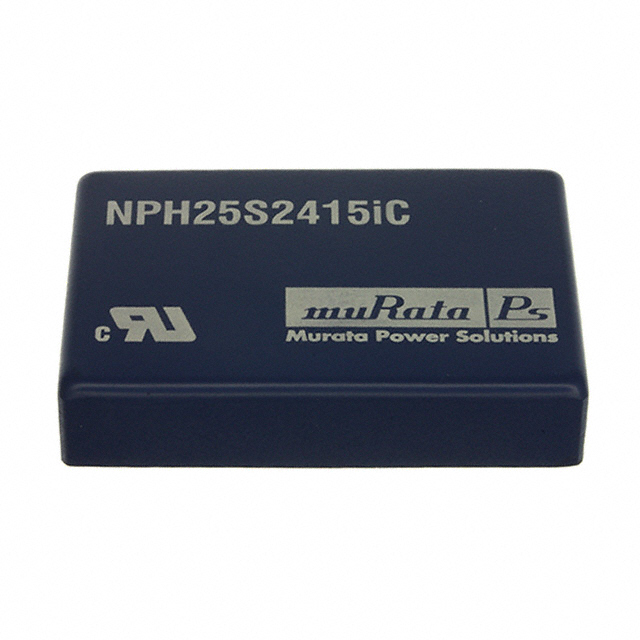

Murata Electronics NPH25S2415IC	1.38 in	1.97 in	0.39 in	36 V		6-DIP Module	ITE (Commercial)	1	1.7 A		25 W	Isolated Module	87 %	15.1 V	-40 °C	110 °C		18 V	Through Hole	1500 Vrns
Murata Electronics NPH25S2405IC	1.38 in	1.97 in	0.39 in	36 V		6-DIP Module	ITE (Commercial)	1	5 A		25 W	Isolated Module	84 %	5.1 V	-40 °C	110 °C		18 V	Through Hole	1500 Vrns
Murata Electronics NPH25S2412IC	1.38 in	1.97 in	0.39 in	36 V		6-DIP Module	ITE (Commercial)	1	2.1 A		25 W	Isolated Module	86 %	12.1 V	-40 °C	110 °C		18 V	Through Hole	1500 Vrns
Murata Electronics NPH25S2412EIC	1.38 in	1.97 in	0.39 in	36 V		6-DIP Module	ITE (Commercial)	1	2.1 A		25 W	Isolated Module	86 %	12.1 V	-40 °C	110 °C		18 V	Through Hole	1500 Vrns
Murata Electronics NPH25S2403IC	1.38 in	1.97 in	0.39 in	36 V		6-DIP Module	ITE (Commercial)	1	7.3 A		25 W	Isolated Module	81 %	3.4 V	-40 °C	110 °C		18 V	Through Hole	1500 Vrns
Murata Electronics NPH25S2415EIC	1.38 in	1.97 in	0.39 in	36 V		6-DIP Module	ITE (Commercial)	1	1.7 A		25 W	Isolated Module	87 %	15.1 V	-40 °C	110 °C		18 V	Through Hole	1500 Vrns
