748481 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

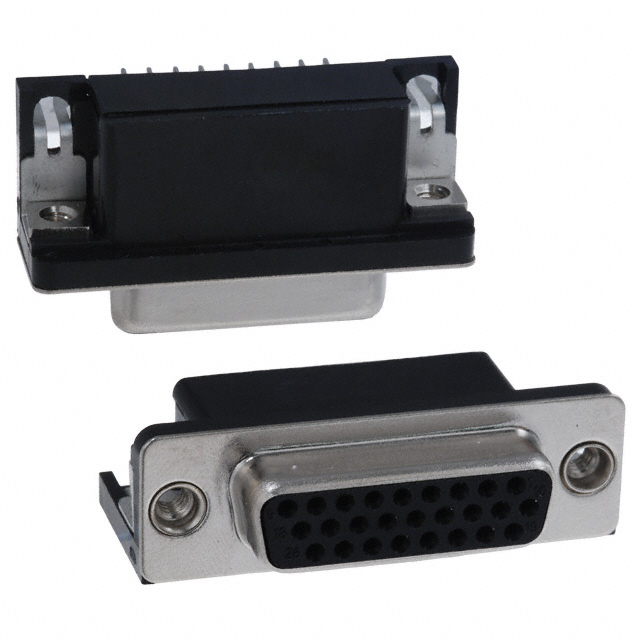

CONN D-SUB HD RCPT 26P R/A SLDR
| Part | Flange Feature | Contact Finish Thickness | Features | Connector Type | Shell Size | Connector Layout | Contact Type | Material Flammability Rating | Shell Material | Finish | Connector Style | Number of Rows | Current Rating | Mounting Type | Number of Positions | Contact Finish | Termination | Dielectric Material | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Color | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Female Screwlock (4-40) Mating Side | 15 µin | Board Lock | Female Sockets Receptacle | 2 | A DA High Density | Signal | UL94 V-0 | Steel | Nickel Plated | D-Sub High Density | 3 | 2 A | Right Angle Through Hole | 26 | Gold | Solder | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | -55 °C | 105 °C | 125 V | Black | ||
TE Connectivity AMP Connectors | Female Screwlock (4-40) Mating Side | 30 µin | Board Lock | Female Sockets Receptacle | 2 | A DA High Density | Signal | UL94 V-0 | Steel | Nickel Plated | D-Sub High Density | 3 | 2 A | Right Angle Through Hole | 26 | Gold | Solder | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | -55 °C | 105 °C | 125 V | Black | ||
TE Connectivity AMP Connectors | Housing Shell (4-40) | 0 | Board Lock | Female Sockets Receptacle | 2 | A DA High Density | Signal | UL94 V-0 | Steel | Nickel Plated | D-Sub High Density | 3 | 2 A | Right Angle Through Hole | 26 | Gold | Solder | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | -55 °C | 105 °C | 125 V | Black | Flash | Flash |
TE Connectivity AMP Connectors | Female Screwlock (4-40) Mating Side | 0 | Board Lock | Female Sockets Receptacle | 2 | A DA High Density | Signal | UL94 V-0 | Steel | Nickel Plated | D-Sub High Density | 3 | 2 A | Right Angle Through Hole | 26 | Gold | Solder | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | -55 °C | 105 °C | 125 V | Black | Flash | Flash |
TE Connectivity AMP Connectors | Housing Shell (Unthreaded) | 30 µin | Board Lock | Female Sockets Receptacle | 2 | A DA High Density | Signal | UL94 V-0 | Steel | Nickel Plated | D-Sub High Density | 3 | 2 A | Right Angle Through Hole | 26 | Gold | Solder | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | -55 °C | 105 °C | 125 V | Black | ||
TE Connectivity AMP Connectors | Housing Shell (4-40) | 15 µin | Board Lock | Female Sockets Receptacle | 2 | A DA High Density | Signal | UL94 V-0 | Steel | Nickel Plated | D-Sub High Density | 3 | 2 A | Right Angle Through Hole | 26 | Gold | Solder | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | -55 °C | 105 °C | 125 V | Black | ||
TE Connectivity AMP Connectors | Housing Shell (Unthreaded) | 0 | Board Lock | Female Sockets Receptacle | 2 | A DA High Density | Signal | UL94 V-0 | Steel | Nickel Plated | D-Sub High Density | 3 | 2 A | Right Angle Through Hole | 26 | Gold | Solder | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Phosphor Bronze | -55 °C | 105 °C | 125 V | Black | Flash | Flash |
